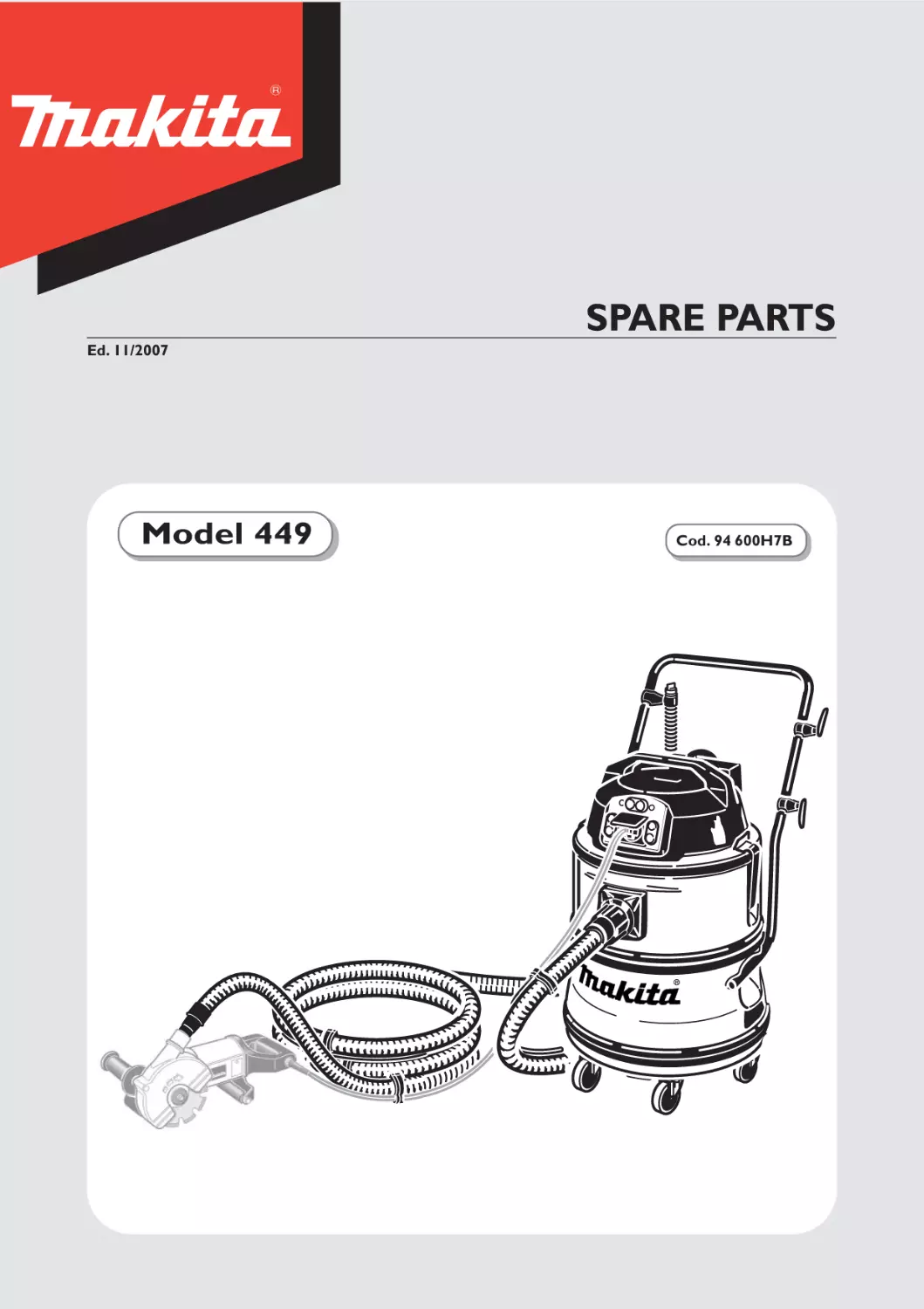

SPARE PARTS
Ed. 11/2007

Model 449

Cod. 94 600H7B

1/2

Model 449
40
3
7

10
4
1
8

5

11

9

32
2

6

16
33

15

39

35
14
12
34

13
34

18
20

19

17

21
25

22
23

38
36
24

26
27
37
34
30
29

28
34

See Fig. 2/2

31

Model 449
1/2
Price
Pos.

Description

Code

01
02
03
04
05

Handle ...........................................................................
Cover .............................................................................
Cable guide ...................................................................
Feeder ...........................................................................
TTR Switch ....................................................................

50003H0N
50009H0N
70004H0N
80017B0N
80101H0V

06
07
08
09
10

TTR bipolar switch .........................................................
Outer shell + cover ........................................................
Schuko socket ...............................................................
Socket lock nut ..............................................................
Hepa post-filter lid .........................................................

80100H0V
80202B8N
80200B8N
50315BDV
50007H0N

11
12
13
14
15

Set of wires ....................................................................
Motor cover ...................................................................
Drawn wire mm 10x5 .....................................................
Tripolar terminal .............................................................
Cable fastener ...............................................................

80152H0V
50006H0N
70007H0N
80029B0I
50333BEN

16
17
18
19
20

Screw 3,5x20 mm type Poly lok ....................................
Electrostatic current lamella ..........................................
Exterior isolator ring to motor diaphragm ......................
Diaphragm seal .............................................................
Flow separator ...............................................................

25806H0X
30078H0X
83350H0N
70001H0N
70000H0N

21
22
23
24
25

Motor absorber ..............................................................
W/cup single-stage motor ..............................................
Motor gasket ..................................................................
Moulded ring .................................................................
Electronic card ...............................................................

70005H0N
20100H0X
70002H0N
83351H0N
80208H0X

26
27
28
29
30

Rear motor support’s shaped soundproofing ................
Motor support ................................................................
Conveyor plate ..............................................................
Valve body .....................................................................
Valve flap .......................................................................

83352H0N
50000H0N
50002H0N
50005H0N
50001H0N

31
32
33
34
35

Float gasket ...................................................................
Float ..............................................................................
Float protection grid .......................................................
Screw 4x30 mm type Poly lok .......................................
Cartridge holder basket .................................................

70003H0N
50014H0N
30100H0X
25804H0X
50008H0N

36
37
38
39
40

Pre-filter housing ...........................................................
Pre-filter flange ..............................................................
Complete adapter disk ..................................................
Screw 4,5x40 mm type Poly lok ....................................
Twin Power Tools cover adhesive ..................................

50023H0N
50024H0N
01410H0N
25805H0X
85003H0V

> > >

2/2

(Each)

2/2

Model 449

48

50

45
46

46
62

44

44

47

47

64
63
48

42
62

43
49

54
62
51
55

41
52
59
53
60

56

61

57

58

Model 449
2/2
Price
Pos.

Description

Code

41
42
43
44
45

80l Container .................................................................
Upper band for container cm 137 ..................................
ø22 mm handle .............................................................
U-bolt .............................................................................
Motor’s cable-winding hook ...........................................

60027H0B
60031H7U
40010H7N
50029H0N
50028H0N

46
47
48
49
50

Spring ............................................................................
Hub ................................................................................
Screw ............................................................................
Suction elbowed tube ....................................................
Exhaust tube cap ...........................................................

30066G0X
50027H0N
25803H0X
50016H0N
50031H0N

51
52
53
54
55

Gasket ...........................................................................
Air inlet connection ........................................................
“MAKITA” Container adhesive .......................................
Hinge support ................................................................
Complete hinge .............................................................

70006H0N
50017H0B
85001H7V
50019H0N
01015H0N

56
57
58
59
60

Cap ................................................................................
Lower band for container cm 165 ..................................
Rotating wheel ø75mm .................................................
Brass hose connection ..................................................
Hose connection gasket ................................................

60250H0N
60032H7U
30083H7X
25675H0X
70011H0N

61
62
63
64

Wrapper .........................................................................
Exhaust tube .................................................................
Tube clamp support .......................................................
Cap tie ...........................................................................

25676H0X
60015H0N
50032H0N
50033H0N

(Each)

Accessories
ø 45 mm

Model 449

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

❊
A12

A13

Optional

❊
A16

❊

Pack code

A14

A15

Model 449
Accessories
ø 45 mm
Price
Pos.
A1
A2

Description

Code

(Each)

A3
A4

Flexible hose with swivelling connectors .......................
ø25 mm flexible hose for electric portable tools
with universal adapter - 5 mt .........................................
Upper curved tube in chromium plated steel .................
Lower curved tube in chromium plated steel .................

01300H0N
01305H0N
40020B5N
40021B5N

A5
A6
A7
A8
A9

Triangular nozzle ...........................................................
Crevice tool ...................................................................
Industrial floor brush ......................................................
Industrial carpet brush ...................................................
Industrial brush for liquids .............................................

50090B0N
50087B0N
60005B5N
60006B5N
60007B5N

A10
A11

Rigid extention ø 45 ......................................................
Cable clamp for electric tool ..........................................

50091B0N
50318BHN

A12
A13
A14
A15

Canister pre-filter made of polyester .............................
“Hepa” outlet air post-filter .............................................
Pack. of cartridge filter element + adapter disc .............
Sponge filter to vacuum liquids .....................................

83010H0I
83150H0I
83140H0G
83035H0B

OPTIONAL
A16

Pack of 5 disposable collecting bags .............................

?

Electrical diagram

83139H0B

Pack code

Linea di alimentazione
Power line

F

N

Legenda colore cavi
Cable colour coding

Gr
Lamella in bronzo
Bronze lamella

Rosso / Red

Br

Marrone / Brown
Blu / Blue

Gr

Verde / Green

Y

Giallo / Yellow

Pk

Rosa / Pink

Vi

Viola / Violet

Bk

Br
Gr
Presa autom.
Autom. socket

Interruttore 1
Switch 1

R

Bl

Vi

Br

W

R

Bk
Interruttore 2
Switch 2

Pk

Nero / Black

Bl

Bk

Deviatore
Shunt

Gr

Bl

Bl

Bianco / White
Br

W

Bk
Bk
R
Bl
Gr

* - con faston - with faston

Pk
M1

Bl
M1

Bk

Motore 1
Motor 1

F
N
EV
EV1

W

M2

Scheda elettronica
Electronic card

EV2

Vi
Bk

Motore 2
Motor 2

M2

Bk
