Text
                    /(
)
Applicable
Model/(No.)
Rev.
Date / Revise Content
Rev.
Date / Revise Content
SHT150
Remark

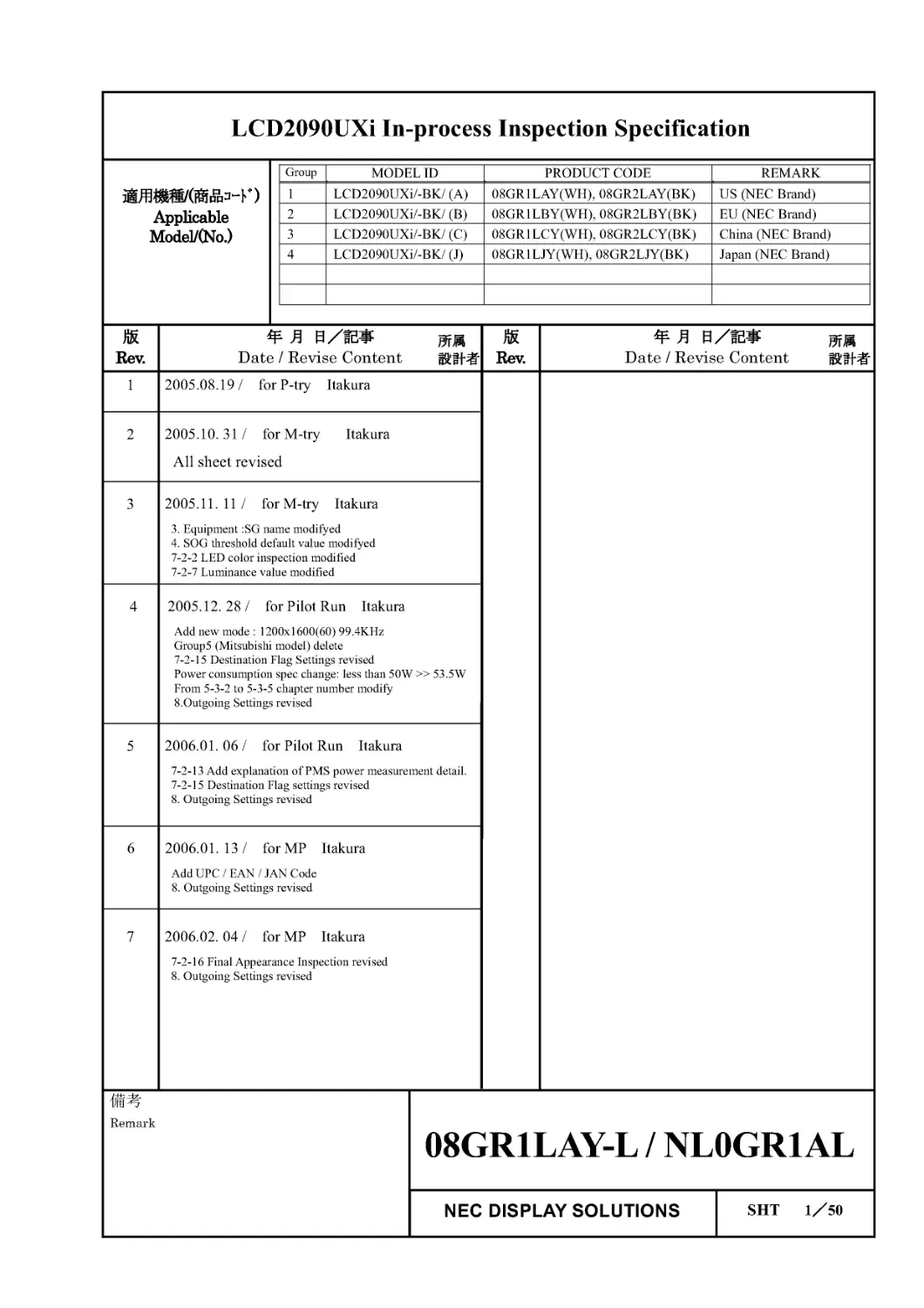

LCD2090UXi In-process Inspection Specification
Group
MODEL ID
PRODUCT CODE
REMARK
1
LCD2090UXi/-BK/ (A) 08GR1LAY(WH), 08GR2LAY(BK) US (NEC Brand)
2
LCD2090UXi/-BK/ (B) 08GR1LBY(WH), 08GR2LBY(BK) EU (NEC Brand)
3
LCD2090UXi/-BK/ (C) 08GR1LCY(WH), 08GR2LCY(BK) China (NEC Brand)
4
LCD2090UXi/-BK/ (J) 08GR1LJY(WH), 08GR2LJY(BK)
Japan (NEC Brand)
1
08GR1LAY-L / NL0GR1AL
2005.08 .19 / for P-try Itakura
2005.10. 31 / for M-try Itakura
All sheet revised
2
2005.11 . 11 / for M-try Itakura
3. Equipment :SG name modifyed
4. SOG threshold default value modifyed
7-2 -2 LED color inspection modified
7-2 -7 Luminance value modified
3
NEC DISPLAY SOLUTIONS
2005.12. 28 / for Pilot Run Itakura
Add new mode : 1200x1600(60) 99.4KHz
Group5 (Mitsubishi model) delete
7-2 -15 Destination Flag Settings revised
Power consumption spec change: less than 50W >> 53.5W
From 5-3-2 to 5-3-5 chapter number modify
8.Outgoing Settings revised
4
2006.01. 06 / for Pilot Run Itakura
7-2 -13 Add explanation of PMS power measure ment detail.
7-2 -15 Destination Flag settings revised
8. Outgoing Settings revised
5
2006.01. 13 / for MP Itakura
AddUPC/EAN/JANCode
8. Outgoing Settings revised
6
2006.02. 04 / for MP Itakura
7-2 -16 Final Appearance Inspection revised
8. Outgoing Settings revised
7

08GR1LAY-L
SHT 2/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
Contents
1. Scope ..................................................................................................................................... 4
2. Applications .......................................................................................................................... 4
3. Equipments........................................................................................................................... 5
4. Standard Setting Conditions ............................................................................................... 5
5. Basic Operation Explanation............................................................................................... 6
5-1 Front Control Switch ............................................................................................................ 6
5-2 Adjustment Mode ................................................................................................................. 6
5-2-1 User Mode ...................................................................................................................... 6
5-2-2 Advanced User Mode ..................................................................................................... 6
5-2-3 Factory Mode.................................................................................................................. 6
5-3 Video Input / Power Input .................................................................................................... 7
5-3-1 Video Input 1 : DVI-D Digital Video Signal Input Connector ..................................... 7
5-3-2 Video Input 2 : DVI-I Analog and Digital Video Signal Input Connector ................... 7
5-3-3 Video Input 3 : miniD-Sub15P Analog Video Input Connector ................................... 8
5-3-4 AC Input ......................................................................................................................... 8
5-3-5 DC Output : 9pin DIN connector for Sound Option ..................................................... 8
6. PWB, Structure and Exterior .............................................................................................. 9
6-1 PWB check and operation check ........................................................................................ 9
6-2 Structure and Exterior Inspection ..................................................................................... 9
7. Adjustment and In-Process Inspection ............................................................................. 11
7-1 Process Summary .................................................................................................................. 11
7-2 In-Process .............................................................................................................................. 11
7-2-1 Initialization ................................................................................................................... 11
7-2-2 Pre-Inspection................................................................................................................. 12
7-2-3 Signal Input Inspection (D-Sub Analog) ....................................................................... 13
7-2-4 Aging (Burn in) ............................................................................................................... 13
7-2-5 Gamma curve adjustment [Factory Mode ; Auto machine Adjustment] ..................... 14
7-2 -6 Uniformity adjustment [Factory Mode ; Auto machine Adjustment] .......................... 14
7-2-7 Luminance and Color temperature Adjustment, Inspection [Factory Mode ; Auto
machine Adjustment] .................................................................................................... 14
7-2-8 Confirmation of AUTO BRIGHTNESS with illumination sensor [Auto machine
Check] ............................................................................................................................ 15
7-2-9 Confirmation of the illumination sensor [Auto machine Check].................................. 15
7-2-10 Uniformity and color Inspection [Auto machine uses in a part] ................................ 15
7-2-11 Signal Input Inspection (DVI-I digital) ....................................................................... 16
7-2-12 Safety Test (SAFETY) .................................................................................................. 16

08GR1LAY-L
SHT 3/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2-13 Signal Input Inspection (DVI-I analog, DVI-D digital) .............................................. 16
7-2-14 EDID and Serial number ............................................................................................. 18
7-2-15 Shipment settings......................................................................................................... 22
7-2-16 Final appearance Inspection (SAFETY)...................................................................... 22
7-2-17 Packing ......................................................................................................................... 24
8. Outgoing Settings............................................................................................................... 25
8-1 User Mode.............................................................................................................................. 25
8-2 Advanced User Mode ............................................................................................................ 26
8-3 Factory Mode Setting (reference) ......................................................................................... 29
9. Timing Table ...................................................................................................................... 32
APPENDIX 1. Product Cosmetic Inspection Standard ........................................................ 33
APPENDIX 2. Clearance dimension standard ..................................................................... 38
APPENDIX 3. EDID Data Structure .................................................................................... 43
APPENDIX 4. LCD display faults ......................................................................................... 46
1 Appearance Criterion ............................................................................................................... 46
2 Polarizer Defects ...................................................................................................................... 49
3 Foreign Material....................................................................................................................... 49
4 Line Defect................................................................................................................................ 49
5 Bezel Appearance ..................................................................................................................... 49
6 Others ....................................................................................................................................... 49
APPENDIX 5. Main PWB Function Test .............................................................................. 50

08GR1LAY-L
SHT 4/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
1. Scope
This is the adjustment procedure of NEC DISPLAY SOLUTIONS Color Monitor units stated herein 20”
LCD Display Monitor (LCD2090UXi).
Model Code
Model Name
PET Name
Set Code
UPC/EAN/JANCode
08GR1LAY L205GR(1L)-WH(A)NUC
LCD2090UXi(A)
NL0GR1AL
805736015331
08GR1LBY L205GR(1L)-WH(B)NUC
LCD2090UXi(B)
NL0GR1BL
5028695104402
08GR1LCY L205GR(1L)-WH(C)NUC
LCD2090UXi(C)
NL0GR1CL
---
08GR1LJY L205GR(1L)-WH(J)NUC
LCD2090UXi
NL0GR1JL
4541225002746
08GR2LAY L205GR(2L)-BK(A)NUC
LCD2090UXi-BK(A)
NL0GR2AL
805736015300
08GR2LBY L205GR(2L)-BK(B)NUC
LCD2090UXi-BK(B)
NL0GR2BL
5028695104419
08GR2LCY L205GR(2L)-BK(C)NUC
LCD2090UXi-BK(C)
NL0GR2CL
---
08GR2LJY L205GR(2L)-BK(J)NUC
LCD2090UXi-BK
NL0GR2JL
4541225002753
2. Applications
Adjustment of the monitors specified here must be done using this procedure as follows. All failure and
suspected symptoms on a rejected monitor must be recorded in a history card. And those root causes are
necessary to be analyzed, then should be reported to the appropriate sections to minimize reject sets. In case
of a certain epidemic failure, all sections related must discuss the solution and the action taken to prevent
recurrence immediately. In case of unclearness for a judgment, decision should be made based on a
discussion with the appropriate corresponding sections
The models which are to be applied this procedure are as below.
Model Name
Specification
Comments
LCD2090UXi
fH
fV
Dot Clock
Max.Display Resolution
Max. Input Resolution
Display Device
Display Size*1
Power Input
: 31.5 ~ 91.1, 99.4kHz (Analog / Digital)
: 50.0 ~ 85.0Hz (Analog / Digital)
: 25.2 ~ 162.0MHz (Analog / Digital)
: 1600 x 1200 (UXGA)
: 1600 x 1200 (UXGA)
: TFT LCD : LM201U05-SLB1
(A-TW-IPS by LPL)
: 20.1” (408.0 x 306.0 mm)
:AC100~240V,50/60Hz*2
*1 Active area
*2 World wide
Input Connectors
DVI-D x 1 (Input 1 : Digital Video)
DVI-I x 1 (Input 2 : Digital / Analog Video)
miniD-sub15P x1 (Input 3 : Analog Video)
IEC Plug 3P (AC Power)
MiniDin 9P (12V DC power for optional Speaker: Sound Bar 90)
Power SW
VACATION SW (at left side) & Front Power Key
*All cables are detachable.
.
*miniD-sub15P - DVI-A analog
signal cable and DVI-D–DVI-D
digital signal cable is included
for all models.
User Control
Front Keys to display OSM*
Remote control by DDC/CI
Mechanical
Tilt (Up: 30 degrees, Down: 5 degrees)
Swivel (Left: 170 degrees, Right: 170 degrees)
Height adjustment (Stroke: 150 mm)
Pivot (clockwise 90 degree)
2005.12 . 28.
2.
Add fh 99.4KHz

08GR1LAY-L
SHT 5/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
3. Equipments
1) Analog Signal Generator A:
Astrodesign VG-819 or Chroma 2130 or equivalent
2) Digital Signal Generator B:
Astrodesign VG-826A or Chroma 2326 0requivalent
3) DVI-DPC:
DELLPC(GeForce2Ultra3D64MBMemory)
or DELL PC DIMENSION 4200 (GeForce3 64MB DDR)
or IBM PC NetVista or equivalent
4) DC Voltage Meter:
mV Digital Voltage Meter
5) Luminance Meter:
Minolta Color Analyzer CA-210 *1
,
CA-1500 or CA-2000*2
6) AC Voltage Meter:
150V/300V, Class 0.5
7) Oscilloscope:
More Than 300MHz Band Width
8) Voltage Convertor:
AC264V Range Adjustable
9) Frequency Counter:
Iwatsu SC-7101 or equivalent
10) Auto Adjustment Inspection Machine: should be provided or instructed from NEC DS R&D (STC)
11) WITHSTANDING VOLTAGE / ARC / INSULATION / GROUNDING TESTER :
EXTECH ELECTRONICS Model CRW-100
DIELECTRIC ANALYZER
12) Power consumption meter:
HIOKI3332 or equivalent
*1: CA-210 should be correlated with CS-1000, which is design standard color analyzer.
*2: CA-1500 or CA-2000 is used in uniformity adjustment and Inspection.
4. Standard Setting Conditions
Unless otherwise specified. AC supply voltage, Input Video and OSM(=OSD) Setting shall be as follows.
*OSM=OSD
Contents
Setting Condition
AC Power Voltage
AC120V 60Hz (Group1 : US)
AC240V 50Hz (Group2, 3 : EU, China)
AC100V 50Hz (Group4, 5 : Japan)
Input Video Timing
Timing Chart No.31 (75kHz, 60Hz : UXGA60)
Input Connector
INPUT2 (DVI-I)
BRIGHTNESS
MAX (100%)
CONTRAST
CENTER (50%)
ECO MODE
OFF
COLOR SELECT
NATIVE
COLOR
CONTROL
RED, YELLOW,
GREEN, CYAN, BLUE,
MAGENTA,
SATURATION
CENTER (0)
SHARPNESS
reset value
COLORCOMP
OFF
OSM Setting
(USER
MODE)
Other items
According to the OSM outgoing setting specified at
chapter 8. Unless otherwise specified, keep the initial
setting (set by initial data).
GAMMA SELECTION
2.2
VIDEO BAND WIDTH
0
SOG THRESHOLD
75
OSM Setting
(ADVANCED
USER
MODE)
Other items
According to the OSM outgoing setting specified at
chapter 8. Unless otherwise specified, keep the initial
setting (set by initial data).
* Destination US NDS-A, EU NDS-E,
2005.11. 11 .
3. Analog SG
VG813 >> 819
4.SOG threshold
50>>75
2005.12. 28.
4. GAMMA
SELECTION
NO CORRECTION
>> 2.2

08GR1LAY-L
SHT 6/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
5. Basic Operation Explanation
5-1 Front Control Switch
“L” shape key layout : On the bottom-right corner at Landscape.
POWER/SELECT/EXIT/LEFT/RIGHT/UP/DOWN/RESET
5-2 Adjustment Mode
There are several modes shown below on this monitor.
5-2 -1 User Mode
User Mode is opened for the general end user operation and is available to adjust contrast,brightness,
color-temp and so on by menus on OSM, which appears by pushing EXIT, CONTROL and ADJUST buttons
on the front panel.
Each adjustment item is categorized into a certain level and group.
SELECT button is used to activate the selected item or to enter deeper level of menu when OSM is displayed.
When OSM is not displayed on the screen, the SELECT button works as input selection. EXIT button is
used to move back to higher level of the menu.
Exit button makes OSM disappeared at the highest categorized level of menu group.
Control Button enables to select menu items in the same categorized level.
5-2-2 Advanced User Mode
Advanced User Mode provides more specific features in addition to the items of User Mode. This mode
enables to select AUTO ADJUST condition, gamma setting and to adjust RGB position and sharpness
individually, etc.
*To enter Advanced User mode by front buttons
Turn on a monitor by pushing front POWER SW button with keeping SELECT button pushed.
*To exit Advanced User mode
Once turn off a monitor by using front POWER SW or side VACATION SW then turn on.
5-2 -3 Factory Mode
The factory mode provides more features, which should be used only for factory adjustment, field service
purpose and development matters, in additon to the items of Advanced User Mode.
*To enter factory mode by front buttons
When OSD is displaying the INFORMATION Tab, press the RESET key and the DOWN and UP keys at the
same time. Then WARNING OSD will be displayed, push the SELECT key.
*To exit factory mode
Push the EXIT key seveal times. Even if it turns off a power switch, it does not escape from factory mode.

08GR1LAY-L
SHT 7/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
5-3 Video Input / Power Input
5-3-1 Video Input 1 : DVI-D Digital Video Signal Input Connector
(1) DVI-D Digital Video Signal Input Connector
Table . DVI-D Connector Pin Assignment
Pin No.
Signal Name
Pin No.
Signal Name
1
T.M.D.S. Data 2-
13
N.C.
2
T.M.D.S. Data 2+
14
+5V Power
3
T.M.D.S. Data 2 Shield
15
Ground (return for +5V, HSync and Vsync)
4
N.C .
16
Hot Plug Detect
5
N.C .
17
T.M.D.S. Data 0-
6
DDC Clock
18
T.M.D.S. Data 0+
7
DDC Data
19
T.M.D.S. Data 0 Shield-
8
N.C .
20
N.C .
9
T.M.D.S. Data 1-
21
N.C.
10
T.M.D.S. Data 1+
22
T.M.D.S. Data Clock Shield
11
T.M.D.S. Data 1 Shield
23
T.M.D.S. Data Clock+
12
N.C .
24
T.M.D.S. Data Clock-
5-3 -2 Video Input 2 : DVI-I Analog and Digital Video Signal Input Connector
Table . DVI-I Connector Pin Assignment
Pin No.
Signal Name
Pin No.
Signal Name
1
T.M.D .S . Data 2-
16
Hot Plug Detect
2
T.M.D.S. Data 2+
17
T.M.D .S . Data 0-
3
T.M.D .S . Data 2 Shield
18
T.M.D .S. Data 0+
4
N.C
19
T.M.D.S . Data 0 Shield-
5
N.C
20
N.C
6
DDC Clock
21
N.C
7
DDC Data
22
T.M.D.S . Data Clock Shield
8
Analog Vertical Sync
23
T.M.D .S . Data Clock+
9
T.M .D.S . Data 1-
24
T.M.D.S . Data Clock-
10
T.M .D.S . Data 1+
C1
Analog Red
11
T.M .D.S . Data 1Shield
C2
Analog Green
12
N.C
C3
Analog Blue
13
N.C
C4
Analog Horizontal Sync
14
+5V Power
C5
Analog Ground
15
Ground (return for +5V, HS and VS)
(Analog R, G and B return)
DVI-I Connector

08GR1LAY-L
SHT 8/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
5-3 -3 Video Input 3 : miniD-Sub15P Analog Video Input Connector
miniD-sub15P Analog Video Signal Input Connector
Table . miniD-sub15P Connector Pin Assignment
Pin NO. Signal name
Definition
1
RV
Red Video
2
GV
Green Video
3
BV
Blue Video
4
OPT
GND
5
RT
DDC GND
6
RG
Red GND
7
GG
Green GND
8
BG
Blue GND
9
+5V
+5V Power
10
SG
SYNC GND
11
OPT
GND
12
SDA
DDC DATA(SDA)
13
HS
Horizontal Sync
14
VS
Vertical Sync
15
SCL
DDC CLOCK(SCL)
5-3 -4 AC Input
AC Inlet at Monito r side
5-3 -5 DC Output : 9pin DIN connector for Sound Option
Pin NO. Signal name
1
NC
2
NC
3
GND
4
NC
5
GND
6
NC
7
GND
8
12V
9
GND
Female connector at monitor side
MiniD-sub15P at monitor side

08GR1LAY-L
SHT 9/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
6. PWB, Structure and Exterior
6-1 PWB check and operation check
1) PWB must be assembled according to the drawings.
2) PWB must have no crack, break and remarkable stain.
3) Components for PWB shall be no remarkable lift up, slanting and contact with another components.
4) PWB must have no shortage between power and ground.
5) The operation of Each PWB Assy must be checked in PWB Assy itself.
PWB-MAIN : LCD2090UXi MAIN PWB ASSY(AM0GR1ML)
* PWB INVERTER is purchased as an assembled unit from FOXCONN.
* PWB POWER is purchased as an assembled unit from TAMURA.
MAIN-PWB Function checking procedure is described in Appendix5.
6-2 Structure and Exterior Inspection
Exterior inspection standard: According to “APPENDIX 1 Product Cosmetic Inspection Standard Class 2”
Gap inspection standard: According to “APPENDIX 2 Clearance dimension Standard”
1) Monitor must be assembled according to its drawings.
2) All connectors, receptacle pins must be clamped firmly and fully inserted.
3) Lead wires must not be pressed against any edge of metal parts.
4) Metal parts must have no scratch, unacceptable stain and no dent or bend.
5) LCD must have no scarch and stain.
6) Front SW Operation must have no strange feeling.
7) LCD must have no strange phenomina such as newton ring when pressing SW.
8) Picture Position must specify the following criteria.
* The Picture position should be in below drawing. (Picture : white outer frame)
And any parts of picture must not be hidden under bezel. (All of frame should be visible clearly)
Display area
L1
L2
L3
L4
BEZEL
L1 0mm
L2 0mm
L3 0mm
L4 0mm

08GR1LAY-L
SHT 10/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
* The Picture Tilt should be in below drawing. ( Picture : white outer frame )
And any parts of picture must not be hidden under bezel. (All of frame should be visible clearly)
9) Stand operation check should be done with no SIGNAL-CABLE and no AC-POWER-CORD attached.
Tilt Operation Check
Confirm that tilt operation of display part works well with no shakiness and creak.
Confirm that pushing the front “EXIT” button by one finger lightly does not make movement of the
display part tilt.
Swivel Operation Check
Confirm that swivel operation of display part works well with no shakiness and creak.
Up/Down Slide Operation Check
Confirm that Up/Down Slide operation of display part works well with no shakiness and creak.
Pivot Operation Check
Confirm that Pivot operation (clockwise) of display part works well with no shakiness and creak.
Confirm that some slope of the display part can be corrected by Pivot operation.
Display area
H1
H2
BEZEL
H3
H4
h2
h3
h1
h4
H1(h1) 0mm
H2(h2) 0mm
H3(h3) 0mm
H4(h4) 0mm
Tilt Operation
Swivel Operation
Up/Down Slide Operation
Pivot Operation

08GR1LAY-L
SHT 11/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7. Adjustment and In-Process Inspection
Unless otherwise specified, the following item should be inspected and adjusted in factory
mode. (Refer to item 5-2 -3 to enter into factory mode) under STANDARD SETTING
CONDITIONS specified in chapter 4.
Basically, all items should be done with the destination power supply voltage.
7-1 Process Summary
Process Summary of this model is followings.
Initialization
Pre-Inspection
Check Switch operation and function
Dot defect Inspection
Rotation Sensor Inspection
Signal Input Inspection (D-Sub Analog)
Composite Sync
Sync On Green
Aging (Burn in)
Gamma Adjustment
Uniformity Adjustment
Color Adjustment
Uniformity Inspection
Signal Input Inspection (DVI-I digital)
Safety Test
Signal Input Inspection (DVI-D digital, DVI-I Analog)
EDID / serial number write and verify
Destination setting
Appearance Inspection
7-2 In-Process
The following check timing should be used, unless otherwise specified herein.
Input Timing No.: Timing Table No.31
Analog signal should be 0.7 +/-0 .01V.
7-2 -1 Initialization
Please input signal into a SET from the D-SUB connector connected to the Jig.
Input Timing No.31 (75kHz, 60Hz : UXGA60).
Video pattern: OP2
The initial data of each model is written by DDC-CI. (Please confirm the writing program version,
that is the latest, to NECDS R&D.)
The Initialization process is automatically adjusted or checked the following items.
Product ID writing
(Chassis number and family model settings will be written to EEPROM.)
Over Drive data writing
(Over Drive data will be written to EEPROM)
2005.11 .11 .
7-2-22-1)4)
LED color
inspection added

08GR1LAY-L
SHT 12/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
DICOM simulation data writing
(DICOM simulation initial data will be written to EEPROM)
Auto Contrast and Black level adjustment
(Factory Mode Tag1: Auto Contrast is executed)
Thermo sensor working check
(Factory Mode Tag4: Temperature Sensor1 is checked. 5 deg. C < Temp < 70 deg. C )
Real Time Clock working check
(This check is confirmed that time is set on a clock and the clock is counting up.)
Self-diagnosis check
(This check is confirmed that the inverter failure detection works. Go to "Self Diag Test
Mode*
1
" and "Inverter PWM duty" is set to 0%. If the unit is no problem, the state of the
detection terminal on MPU will be High. The state is read by Test Jig via DDC-CI.)
LED color check
(Should be check the followings : Just after Initializing, LED color is Green. Then, monitor
re-start (power switch off and on) , LED color must be Blue.)
*1 Self Diag Test Mode : At first, turn off the monitor. Then, turn on a monitor keeping RESET button pushed.
7-2 -2 Pre-Inspection
2-1) Check Switch operation and function
1)Input signal timing No.31 (75kHz, 60Hz UXGA60) / Video Pattern : OP2
2)Check that picture appears within approximately 4 sec. after turning on VACATION SW or front
SW.
3)Display OSM by pressing “EXIT” key.
4) Go to BRIGHTNESS item of Bright&Cont TAG in User mode, then check the OSM value is
changing by LEFT RIGHT keys. And adjust the brightness with the roughly 70%.
5)Press “RESET” key, and then in order to work reset function, please press the "SELECT" key.
6)Confirm that Brightness of the display changes brighter and the value is got back to 100%.
2-2) Shock test
1) Input signal timing No.31 (75kHz, 60Hz UXGA60) / Video Pattern : OP2
2) No noise on the picture must be found by shock.
Note: Must not give shock to the panel surface.
2-3) Dot defect check
1) Input signal timing No.31 (75kHz, 60Hz UXGA60) / Initial test pattern : All White
2) Execute the AUTO ADJUST. Then, confirm the normal picture displaying.
3) Check LCD Pixel faults according to “LCD Pixel faults Criteria described in Appendix4”.
4) Change the display pattern to 256 steps gradation, inverse and each color as R, G and B. Please
check the pixel fault on each pattern.
2005.12 .28.
Self-diagnosis
Howtogoto
Test Mode was
changed.

08GR1LAY-L
SHT 13/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
2-4) Rotation Sensor (G Sensor)
1) Input signal, timing No.31 (75kHz, 60Hz UXGA60) / test pattern : OP2
2) Push EXIT key to indicate the OSD at Landscape.
3) Change the monitor direction from Landscape to Portrait. (It must be up to the highest position, and
after rotate it.)
4) Confirm that the direction of OSD is also changed automatically.
5) If the OSD does not rotate automatically, offset adjustment of the G sensor should be executed.
Please go to item “0G(SELECT TO SET)” on the Factory Menu TAG E, and push the SELECT key.
And then re-confirm this function from chapter 1).
7-2-3 Signal Input Inspection (D-Sub Analog)
3-1) Composite Sync Inspection
1) Input composite synchronization signal, timing No.28 (80kHz, 75Hz SXGA75) / test pattern : OP2
2) Execute the AUTO ADJUST. Then, confirm the normal picture displaying.
3) If the abnormal picture appears after AUTO ADJUST is executed, following processes should be
done. Because there is a possibility of misjudgment of the resolution.
4) Go to Advanced Menu TAG4, Select “H RESOLUTION”.
5) Adjust the H RESOLUTION value to 1280 by LEFT / RIGHT keys.
6) Conform that the resolution becomes H: 1280, V: 1024.
7) Re-try AUTO ADJUST.
3-2) Sync On Green Inspection
1) Input Sync On Green signal, timing No.32 (75kHz, 60Hz UXGA60 SOG) / test pattern : OP2
2) Execute the AUTO ADJUST. Then, confirm the normal picture displaying.
3) If the abnormal picture appears after AUTO ADJUST is executed, (3) 3-1) 3) processes described in
the Composite Sync Inspection should be done. (Except of resolution value)
7-2 -4 Aging (Burn in)
How to enter to Aging mode
* To enter into Aging mode: Press “RESET”, “DOWN” and “UP” button at the same time
during “NO SIGNAL” OSD coming up. “NO SIGNAL” appears when turning on a monitor
without any video signal or when pressing “SELECT” button with a monitor under power
saving mode without any video signal.
Keep Aging mode for more than 30 minutes.
How to exit from Aging mode
* To exit from Aging mode: Press “EXIT” button several times.
Note: Aging mode is kept even after power OFF / ON by using VACATION SW or front POWER key.

08GR1LAY-L
SHT 14/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2 -5 Gamma curve adjustment [Factory Mode ; Auto machine Adjustment]
Please confirm the Adjustment program version, that is the latest, to NECDS R&D.
1) Input Signal isn’t needed in this adjustment. Auto machine makes each unit display the SELFTEST
Video pattern: all white.
2) Set up the probe of CA-210 Color Analyzer on the center of the picture.
3) If the adjustment program is started, Auto machine measures the luminance at the specified 16
points of input values for each R, G and B (It measures gamma curve of each color).
4) After measurement, auto machine writes those data (measurement 16 points and luminance data)
into the specified memory area of EEPROM
Note1: This process must be done after completion until Aging process.
Note2: The actual gamma correction of the monitor makes MPU calculate the correction data based on
this measurement, and set itself.
7-2 -6 Uniformity adjustment [Factory Mode ; Auto machine Adjustment]
1) Set up the CA-1500 or CA-2000 Color Analyzer in front of the monitor.
2) If the adjustment program is started, Auto machine measures the color (x, y) and the luminance (Y)
data at specified grid on the picture at the same time. The grid pitch is usually 128 dots.
3) Auto machine measures it 4 times according to the luminance level. Input Levels are
Layer4: 1023/1023, Layer3: 768/1023, Layer2: 512/1023, Layer1: 256/1023
4) After measurement, Auto machine calculates the compensation data and writes it to the monitor. The
compensation data isn’t Landscape only, but also Portrait and Cold start data.
7-2 -7 Luminance and Color temperature Adjustment, Inspection [Factory Mode ; Auto machine Adjustment]
1) Display pattern : SELFTEST
2) Set up the CA-210 Color Analyzer in front of the monitor
3) If the adjustment program is started, Auto machine sets BRIGHTNESS item in User menu to 100%.
Confirm that the luminance Y data measured at the center position of the panel is following
criteria.
Min 200 cd/m2, Typ 280 cd/m2
(ref.: Panel spec is min 250 cd/m2 and typ 300 cd/m2 at 25degC, aging 30 min)
Confirm that the chromaticity x, y data at the center position of the panel is within following
range.
x=0.313 0.030 y=0.329 0.030 (same as Panel spec)
4) Then, Auto machine adjusts white balance so as to be the following chromaticity x, y data for each
color temperature.
Color temperature
x
y
9600K
0.281 0.005
0.295 0.005
8200K
0.292 0.005
0.307 0 .005
7500K
0.299 0.005
0.315 0.005
6500K
0.313 0.005
0.329 0.005
5000K
0.346 0.005
0.359 0 .005
3000K
0.435 0.005
0.407 0.005
2005.11. 11 .
7-2-7 3)
Luminance value
modified
250>>200
2005.12. 28.
7-2-6 4) Add

08GR1LAY-L
SHT 15/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2 -8 Confirmation of AUTO BRIGHTNESS with illumination sensor [Auto machine Check]
1) Display pattern : SELFTEST
2) Auto machine makes AUTO BRIGHTNESS set to “1” in User mode
3) Confirm luminance changing on the picture when the illuminance sensor is hidden by finger.
4) Back AUTO BRIGHTNESS “OFF”.
7-2-9 Confirmation of the illumination sensor [Auto machine Check]
1) Display pattern : SELFTEST
2) Select IPM SETTING on Tag “7” on OSM of Advanced mode.
3) Confirm value of ILLUMINANCE NOW change when the illuminance sensor is hidden by finger.
7-2 -10 Uniformity and color Inspection [Auto machine uses in a part]
1) Display pattern : SELFTEST
2) Set up the CA-210 Color Analyzer in front of the monitor.
3) If the adjustment program is started, Auto machine requests a worker to set up the PROBE for
measuring the color (x, y) and the luminance (Y) data at specified grid on the picture. Auto
machine is measured only maximum layer (layer4). Auto machine inspects 5 points data (on the 4
corners and center; See measurement points figure). Judgment spec is followings.
Luminance: {(Ymax-Ymin) / Yma x} * 100 10[%]
Color x, y : xmax-xmin
0.008, ymax-ymin
0.008
4) A worker inspects Layer3, 2 and 1. If remarkable luminance or color uniformity error is found out,
please reject it and adjust it again.
Note: Brightness should comply with the following criteria at All White pattern. The measurement
should be done at dark room after more than 30 minutes Burn in.
Size of each measurement points: 25mm x 25mm
(1, 1)
160
1440
800
600
120
(1600, 1200)
1080
D
B
C
A
E
measurement points
(1600, 1)

08GR1LAY-L
SHT 16/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2 -11 Signal Input Inspection (DVI-I digital)
1) Please input signal into DVI-I connector from the PC. The Resolution must be 1600x1200, and
Refresh Rate must be 60Hz. / Recommended test pattern: Test Pattern made by NDS.
2) Confirm that any blinking pixels can’t be seen on the 256 steps gradation part.
3) Confirm that any blinking lines can’t be seen on the edge of the color bar part.
4) Confirm that any noisy image can’t be felt on the 1 dot vertical line part.
7-2 -12 Safety Test (SAFETY)
12-1) Isolation Withstanding Voltage Test (safety)
ALL UNIT MUST BE CHECKD
Apply AC1500V(torelance: -0V / +50V) 60Hz for 2 seconds across live to ground, and neutral to ground
must not have abnormal condition. Equipment cut-off current setting must be 10mA.
12-2) Isolation Resistance and Ground Resistance (safety)
Apply DC25A across AC earth GND pin to chassis GND, the resistance must be less than 100m .
7-2 -13 Signal Input Inspection (DVI-I analog, DVI-D digital)
13-1) Confirmation of Power-Save
1) Before this inspection, check the connection of AC Power meter as following figure, and AC line
voltage.
2) Confirm the measurement range setting on the AC Power Meter. If HIOKI3332 is used, the AUTO
Range is recommended. So, the two point of "AUTO" indication should be lighted.
3) All input connectors make it be disconnected from the monitor. It means that the H-Sync., V-Sync.,
Green signal (include sync) and DVI signal aren’t inputting into the SET. (This time, don’t touch
any control keys.)
4) 5 seconds after disconnecting all connectors, the monitor makes LED color change into amber
(similar to orange).
5) Confirm that the power consumption is less than 1.0W at Power-Save mode.
6) If the specified timing signal is input, then the monitor wakes up from the Power-Save mode.
Please check the time to take for waking up. It usually takes approximately 4 sec or less.
7) Confirm that the power consumption is less than 53.5W on the Normal Mode. Where the pattern
is all white.
Mode
H V AC @power
Timing
Pattern
Power Consumption
Power-Save Off Off
AC240V
50Hz
---
---
Less than 1.0W
Normal
On On
AC240V
50Hz
75kHz, 60Hz
Timing No.31
All
White
Less than 53.5W

08GR1LAY-L
SHT 17/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
13-2) Signal Input check
Inspection item
Test pattern
Criteria
Timing No. Input
Picture position
All picture should be visible
4, 11
*1
,
31, 33
Sampling noise
OP2
No remarkable Jitter
Beat Noise
No remarkable beat noise
Blinking noise
No remarkable blinking line or
dot
Abnormal Color
*2
Gray scale 256
No remarkable abnormal color
Flicker
No remarkable flickering
Smear
No remarkable smear
Cross talk
1dot V stripe
with
1/4 Window
No remarkable cross talk of
LCD panel
31
INPUT2
DVI-I(A)
Picture position
All picture should be visible
12, 31
Horizontal line
OP2
No remarkable noise
Blinking noise
Gray scale 256
No remarkable blinking line or
dot
31
INPUT1
(DVI-D)
*1: This signal is for low fv checking. If the 50Hz signal timing can be output from the signal source, this check
should be used by it instead of No.11 .
*2: When the color temperature setting is changed to any (9600K to 3000K) at gamma2.2 .
HIOKI 3332 Connection Figure
HIOKI 3332 AUTO Range Figure
2006.01. 09 .
13-2) Add
abnormal color
check item.

08GR1LAY-L
SHT 18/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2 -14 EDID and Serial number
14-1) Connection for Writing of the data via DDC
Connect writing equipment (PC) and a monitor product through the specific interface board.
This system can write both data of the EDID and the serial number to the monitor product.
Cable connections are shown as follows.
14-2) Writing and Verifying procedures of EDID data
* Before this work, confirm that the time and date on PC is being set correctly.
* EDID data must be written after connecting PC.
1) Turn on a monitor by POWER-SW at front.
2) Select model type and destination on the screen of the PC.
(Only when starting up system or changing model type.)
3) Write manufacturing year and week.
4) Write serial number by bar code and confirm its serial number is correct on the screen of the PC.
5) Write DDC data (EDID) to EEPROM.
(Writing data: see below Table)
6) Above procedure must be applied for all connections.
Table of EDID for input connectors
Input connecters
Written data
INPUT1 (DVI-D)
EDID for Digital
INPUT2 (DVI-I(A))
EDID for Analog
INPUT2 (DVI-I(D))
EDID for Digital
INPUT3 (miniD-SUB)
EDID for Analog
Note: For INPUT2 (DVI-I) Digital and Analog EDID must be written into the corresponding
EEPROM respectively.
Confirm each all EDIDs are written correctly into the appropriate EEPROM on the screen of the PC.
Note: EDID are composed of 128 Bytes data as Appendix3.
Monitor for PC
Control
Writing Equipment
(PC)
PC
Products
LCD monitor
Cable for DDC
miniD-SUB15P
DVI-D
DVI-I
Interface board
Interface board
Interface board

08GR1LAY-L
SHT 19/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
14-4) Confirmation of Asset Management and AUTO DVI SELECTION* function
1) Confirm that DVI SELECTION on the OSD menu is set to ”AUTO”**.
2) Turn off the monitor by VACATION SW located at left side. (AC Power OFF)
3) Add +5V DC to +5V pin of a connector according to blow table.
Input
+5V supply
SCL
SDA
INPUT1 DVI-D
INPUT2 DVI-I
#14
#6
#7
INPUT3 miniD-SUB15P
#9
#15
#12
4) Read EDID from PC by DDC communication.
INPUT1: Confirm that Digital EDID can be read with Digital signal cable (DVI-D / DVI-D).
INPUT2: Confirm that Analog EDID can be read with Analog signal cable (DVI-A / D-sub 15P)
and Digital EDID can be read with Digital signal cable (DVI-D / DVI-D).
INPUT3: Confirm that Analog EDID can be read with any Analog cable.
5) Above procedure must be applied for all input shown in 14-2), Table of EDID for input connectors.
*AUTO DVI SELECTION selects the EDID by depending on the terminal of Hot Plug Detect (No.16. See Item 5-3 -2).
If HPD terminal is connected to +5V supply in the cable, AUTO DVI SELECTION selects Analog EDID. If HPD
terminal isn't connected to any lines or is connected to GND, AUTO DVI SELECTION would be Digital.
** The check of DVI SELECTION state (Analog or Digital) is possible at the following OSD.
- User Menu: Tool TAG,
- Advanced Menu: TAG7,
- "DVI-I INPUT NO SIGNAL" OSD: Press the DOWN key for choosing DVI SELECTION item.
14-5) Serial number
1) Writing procedure is the same as the EDID data.
2) Confirm that the right data is written to the serial number on the OSD information TAG.
3) Confirm that the serial number printed on the serial number label is the same as the OSD information.
Note1: Serial number label explanation (Ex. LCD2080UXi 55000001YA)

08GR1LAY-L
SHT 20/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
Indication
Format
Contents
Remarks
(A)
Model Name
Letters
MODEL: LCD2090UXi
Fixed
(B)
Serial Number
Letters
SERIAL No.: 6100001YA Changeable
(Each Unit)
(C)
Serial Number
Bar Code (Code39)
6100001YA
Changeable
(Each Unit)
(D)
Revision Number
Black Dot in a Frame
Changeable
(Depend on Rev. Control)
(E)
Product Code /
Serial Number
Letters
6100001YA
Changeable
(Each Unit)
(F)
Product Code /
Serial Number
Bar Code (Code39)
08GR1LAY_6100001YA Changeable
(Each Unit)
(G)
Product Code /
Serial Number
Letters
08GR1LAY_6100001YA Changeable
(Each Unit)
(H)
Model Name
Letters
LCD2090UXi
Fixed
(I)
Model Name
Bar Code (Code39)
1PLCD2090UXi
Fixed
(J)
Model Name
Letters
PN:(1P) LCD2090UXi
Fixed
(K)
Serial Number
Bar Code (Code39)
S6100001YA
Changeable
(Each Unit)
(L)
Serial Number
Letters
SN:(S) LCD2090UXi
Changeable
(Each Unit)
(M)
UPC / EAN Code
Letters
UPC / EAN CODE
Each model / Destination
(See 1.Scope)
(N)
UPC / EAN Code
Bar Code (Code39)
UPC / EAN CODE
Each model / Destination
(See 1.Scope)
(O)
UPC / EAN Code
Letters
UPC / EAN CODE
Each model / Destination
(See 1.Scope)
(P)
Panel Code
Letters
(L)
Fixed

08GR1LAY-L
SHT 21/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
Note2: Serial number data explanation
(1) Decimal - Hexa transform
This model doesn’t need the special transform of serial numbering. Please apply ASCII transform as following item.
(2) Ascii transform
Read serial number by barcode system and set serial number according following transform.
S/N >> Transform to Ascii code >> Store data from upper byte of lower 10 digits by turns.
(toMonitorDescriptor#4)
(Example)
29002978YB>>32393030323937385942
MPU EEPROM
Asset EEPROM (D-SUB,DVI)
(No offset)
(No Offset)
Address(H)
Data(H)
Address(H)
Data(H)
0x0220
32
0x71
32
0x0221
39
0x72
39
0x0222
30
0x73
30
0x0223
30
0x74
30
0x0224
32
0x75
32
0x0225
39
0x76
39
0x0226
37
0x77
37
0x0227
38
0x78
38
0x0228
59
0x79
59
0x0229
42
0x7A
42
0x022A
00
0x7B
0A
0x022B
00
0x7C
20
0x022C
00
0x7D
20
0x022D
00
0x022E
00
0x022F
00 (Depends on digit of S/N)
Fixed data
Fixed data
Means data edge of S/N
S/N
S/N

08GR1LAY-L
SHT 22/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
7-2 -15 Shipment settings
Write the model data, which should be changed according to the destination. (Auto machine setting)
The destination settings are as followings.
15-1) Destination Flag setting
Item
EEPROM
Start
Address
Group 1
A ver.
Group 2
B ver.
Group 3
C ver.
Group 4
J ver.
data mean
MODEL NAME indication
0x0200
LCD2090UXi
LCD2090UXi
LCD2090UXi
LCD2090UXi
OSD / OSM indication
0x035A
0
0
0
1
0: OSM
1: OSD
COLORCOMP indication
0x035B
0
0
0
2
0: COLORCOMP
1: UNIFOMITY
2: MURA
OVERDRIVE indication
0x03B6
0
0
0
1
0: OVERDRIVE
1: RESPONSE IMPROVE
IPM indication
0x0348
0
0
0
1
0: IPM
1: OFF MODE
URL indication
0x0240
1
1
1
1
0: ROM*1
1: EEPROM*2
2: No indication
HOT KEY default
0x00CE
0
1
0
0
0: OFF
1: ON
LED WARNING
(Self Diag LED interval)
0x00DA
1
2
1
1
0: 500ms ON / 1sec OFF
1: 250ms ON / 500ms OFF
2: 250ms ON / 1sec OFF
LANGUAGE default
0x00C6
0
0
0
7
0: English
7: Japanese
*1 ROM: WWW.NECDISPLAYSOLUTIONS.COM
*2 EEPROM: The data is written by Auto machine program.
15-2) ON TIME setting condition
Reset “ON TIME” to “0H 0M” in TAG G in Factory mode.
15-3) Power SW Outgoing setting condition
Settings must be following condition.
VACATION SW: ON
Front Power key button: OFF
7-2 -16 Final appearance Inspection (SAFETY)
16-1) Product Appearance before packing
Confirm no remarkable stain, scratch or dust on the LCD surface and the cabinet. Especially,
following points should be checked.
- LCD panel surface.
- The 4 corner of the cabinet and the stand.
- Front control keys.

08GR1LAY-L
SHT 23/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
16-2) Label Placement and Silk Printing check (SAFETY)
1) Confirm that labels are attached correctly according to followings.
It is visual inspection, excessive fault should noticed.
If there are some doubts, refer to specification in this document, Packing
Specification., or Parts Approval sheet etc.
After then, please decide its restriction after discussing with related department.
2) Confirm that the revision No. of REVISION-LABEL is correct.
*Detail : Refer to Packing specification sheet.
LABEL BADGE NEC:
WH model: 1E20364_
BK model: 1E20365_
Note)
Slant of Silk:
Refer to Appendix2
RATING LABEL:
WH model: 1E00485_
BK model: 1E00486_
LABEL REV
A/B/C ver. (1E20219_)
Jver. (1E20220_)
Should not be overlap other place of concavity area.
SAFETY
2006.02.04.
16-2)
description
change and add
some pictures.

08GR1LAY-L
SHT 24/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(reference) RATING LABEL sample
(reference) LABEL REV sample
7-2 -17 Packing
1) Confirm no remarkable stain or scratch on the packing case.
2) Confirm indication of monitor type.
3) Confirm SERIAL No. is attached on the packing case.
(Confirm the SERIAL No. is same as monitor's one.)
4) Confirm packing certainly.
*Detail : Refer to Packing specification sheet.

08GR1LAY-L
SHT 25/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
8. Outgoing Settings
8-1 User Mode
TAG
Menu
Group 1
Group 2
Group 3
Group 4
BRIGHTNESS
100.0% max
<<
<<
<<
CONTRAST
50.0%
<<
<<
<<
AUTO CONTRAST
----
----
----
--- -
ECO MODE
OFF
<<
<<
<<
AUTO BRIGHTNESS
OFF
<<
<<
<<
BRIGHT&CONT
BLACK LEVEL
(Factory Setting)
<<
<<
<<
AUTO AUTO ADJUST
----
----
----
--- -
LEFT/RIGHT
----
----
----
----
DOWN/UP
----
----
----
----
H SIZE
----
----
----
----
FINE
----
----
----
----
AUTO FINE
OFF
<<
<<
<<
SIZE&FINE
EXPANSION
FULL
<<
<<
<<
COLOR
NATIVE
<<
<<
<<
TEMPERATURE
(preset value)
<<
<<
<<
RED
0 (center)
<<
<<
<<
YELLOW
0 (center)
<<
<<
<<
GREEN
0 (center)
<<
<<
<<
CYAN
0 (center)
<<
<<
<<
BLUE
0 (center)
<<
<<
<<
RGB
RGB
SATURATION -
OFFSET
MAGENTA
0 (center)
<<
<<
<<
SHARPNESS
26.1%
<<
<<
<<
DVI SELECTION
AUTO
<<
<<
<<
VIDEO DETECT
FIRST
<<
<<
<<
OFF TIMER
OFF
<<
<<
<<
IPM
STANDARD
<<
<<
<<
TOOLS
COLORCOMP
OFF
<<
<<
<<
LANGUAGE
ENGLISH
<<
<<
LEFT/RIGHT
Almost center
<<
<<
<<
OSM POSITION
DOWN/UP
Almost center
<<
<<
<<
OSM TURN OFF
45S
<<
<<
<<
OSM LOCK OUT
----
----
----
----
OSM TRANSPARENCY
OFF
<<
<<
<<
OSM COLOR
BLUE
<<
<<
<<
RESOLUTION NOTIFIER
ON
<<
<<
<<
HOT KEY
OFF
ON
OFF
<<
MENUTOOLS
FACTORY PRESET
----
----
----
----
INPUT
----
----
----
----
RESOLUTION
----
----
----
----
FREQUENCY
----
----
----
--- -
DISPLAY MODE
SYNC TYPE
----
----
----
----
MODEL
LCD2090UXi
<<
<<
<<
SERIAL NUMBER
----
----
----
----
INFO
WEB SITE
WWW.NECDISPLAY
SOLUTIONS.COM
<<
<<
(Blank)

08GR1LAY-L
SHT 26/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
8-2 Advanced User Mode
TAG
Menu
Group 1
Group 2
Group 3
Group 4
BRIGHTNESS
100.0% max
<<
<<
<<
CONTRAST
50.0%
<<
<<
<<
AUTO CONTRAST
--- -
----
----
----
AUTO BLACK LEVEL
--- -
----
----
--- -
ECO MODE
OFF
<<
<<
<<
ECO MODE CUSTOM
100.0% max
<<
<<
<<
AUTO BRIGHTNESS
OFF
<<
<<
<<
1
BLACK LEVEL
(Factory Setting)
<<
<<
<<
R-H .POSITION
0
<<
<<
<<
G-H .POSITION
0
<<
<<
<<
B-H .POSITION
0
<<
<<
<<
R-FINE
(auto adjust)
<<
<<
<<
G-FINE
(auto adjust)
<<
<<
<<
B-FINE
(auto adjust)
<<
<<
<<
R-SHARPNESS
0
<<
<<
<<
G-SHARPNESS
0
<<
<<
<<
2
B-SHARPNESS
0
<<
<<
<<
AUTO ADJUST
----
----
----
----
SIGNAL ADJUST
SIMPLE
<<
<<
<<
AUTO SW
SIMPLE
<<
<<
<<
3
A-NTAA SW
ON
<<
<<
<<
H.POSITION
(auto adjust)
<<
<<
<<
V.POSITION
(auto adjust)
<<
<<
<<
H.SIZE
(auto adjust)
<<
<<
<<
FINE
(auto adjust)
<<
<<
<<
AUTO FINE
OFF
<<
<<
<<
H. RESOLUTION
(depend on input)
<<
<<
<<
V. RESOLUTION
(depend on input)
<<
<<
<<
4
EXPANSION
FULL
<<
<<
<<
GAMMA SELECTION
2.2
<<
<<
<<
“OPT” (OPTION) VALUE
1
<<
<<
<<
“CST” (CUSTOM) VALUE
2.2
<<
<<
<<
5
CUSTOM OFFSET
0
<<
<<
<<
COLOR CONTROL
NATIVE
<<
<<
<<
TEMPERATURE
(preset value)
<<
<<
<<
RED
0 / 0 (center)
<<
<<
<<
YELLOW
0 / 0 (center)
<<
<<
<<
GREEN
0 / 0 (center)
<<
<<
<<
CYAN
0 / 0 (center)
<<
<<
<<
BLUE
0 / 0 (center)
<<
<<
<<
6
SATURATION
/
OFFSET
MAGENTA
0 / 0 (center)
<<
<<
<<

08GR1LAY-L
SHT 27/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
continue
TAG
Menu
Group 1
Group 2
Group 3
Group 4
SHARPNESS
26.1%
<<
<<
<<
DVI SELECTION
AUTO
<<
<<
<<
VIDEO DETECT
FIRST
<<
<<
<<
OFF TIMER
OFF
<<
<<
<<
IPM
STANDARD
<<
<<
<<
IPM SETTING
50.0% center
<<
<<
<<
OVER DRIVE
OFF
<<
<<
<<
SIDE BORDER COLOR
11.7%
<<
<<
<<
LED BRIGHTNESS
100.0%(max)
<<
<<
<<
LED COLOR
BLUE
<<
<<
<<
COLORCOMP.
OFF
<<
<<
<<
7
COLORCOMP. LEVEL
3 (or 5)*
<<
<<
<<
LANGUAGE
ENGLISH
<<
<<
OSM H. POSITION
Almost center
<<
<<
<<
OSM V. POSITION
Almost center
<<
<<
<<
OSM TURN OFF
45S
<<
<<
<<
OSM LOCK OUT
----
----
----
----
OSM TRANSPARENCY
OFF
<<
<<
<<
OSM COLOR
BLUE
<<
<<
<<
SIGNAL INFORMATION
ON
<<
<<
<<
RESOLUTION NOTIFIER
ON
<<
<<
<<
HOT KEY
OFF
ON
OFF
<<
8
FACTORY PRESET
----
----
----
----
GRAYSCALE MODE
OFF
<<
<<
<<
OSM ROTATION
AUTO
<<
<<
<<
IMAGE ROTATION
OFF
<<
<<
<<
VIDEO BAND WIDTH
0
<<
<<
<<
SYNC THRESHOLD
1
<<
<<
<<
SOG THRESHOLD
75
<<
<<
<<
9
INPUT
SETTING
EDGE LOCK
BACK
<<
<<
<<
ENABLE
OFF
<<
<<
<<
H. MONITOR
1
<<
<<
<<
V. MONITOR
1
<<
<<
<<
MONITOR NO.
1
<<
<<
<<
A TILE MATRIX
TILE COMP.
OFF
<<
<<
<<
YEAR
MONTH
DAY
HOUR
MINUTE
(depend on
time setting)
<<
<<
<<
B
DATE
&
TIME
DAYLIGHT SAVING
OFF
<<
<<
<<
ON
--:--
<<
<<
<<
OFF
--:--
<<
<<
<<
INPUT
----
<<
<<
<<
C SCHEDULE
setup day (check mark)
(all blank)
<<
<<
<<
* COLORCOMP LEVEL default value : Running change from 3 to 5.
2006.02.04.
COLORCOMP
LEVEL default
value running
change

08GR1LAY-L
SHT 28/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
continue
TAG
Menu
Group 1
Group 2
Group 3
Group 4
D ECO MODE INFORMATION
----
----
----
----
INPUT
----
----
----
----
RESOLUTION
----
----
----
----
FREQUENCY
--- -
----
--- -
----
SYNC TYPE
----
----
----
----
DISPLAY MODE
MODEL
LCD2090UXi
<<
<<
<<
SERIAL NUMBER
----
----
----
----
E
WEB SITE
WWW.NECDISPLAY
SOLUTIONS.COM
<<
<<
(Blank)

08GR1LAY-L
SHT 29/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
8-3 Factory Mode Setting (reference)
TAG
Menu
Group 1
Group 2
Group 3
Group 4
1 AUTO CONTRAST
----
----
--- -
----
R CONTRAST
(auto contrast)
<<
<<
<<
G CONTRAST
(auto contrast)
<<
<<
<<
B CONTRAST
(auto contrast)
<<
<<
<<
R BLACK LEVEL
(auto contrast)
<<
<<
<<
G BLACK LEVEL
(auto contrast)
<<
<<
<<
B BLACK LEVEL
(auto contrast)
<<
<<
<<
BLACK LEVEL
(auto contrast)
<<
<<
<<
2 DESTINATION
00
<<
<<
<<
GAMMA DEFAULT
22
<<
<<
<<
GAMMA SEL DEFAULT
DEF
<<
<<
<<
GAMMA OPT DEFAULT
000
<<
<<
<<
SERVICE RESET
----
----
----
----
3 BRIGHTNESS FREQ
225
<<
<<
<<
IPM DELAY
255
<<
<<
<<
DIAG CHECK INTERVAL
010
<<
<<
<<
DIAG CHECK COUNT
003
<<
<<
<<
DIAG ERROR NUMBER
(count data)
<<
<<
<<
xxxxxxxxxxxx
----
----
----
----
xxxxxxxxxxxx
----
----
----
----
xxxxxxxxxxxx
----
----
----
----
xxxxxxxxxxxx
----
----
----
----
4 EDID WP
000
<<
<<
<<
CI SEL DEFAULT
000
<<
<<
<<
TEMP1 THRESHOLD 1
075
<<
<<
<<
TEMP1 THRESHOLD 2
085
<<
<<
<<
SOG THRESHOLD ADC
016
<<
<<
<<
A-NTAA CANCEL TIME
010
<<
<<
<<
OSM ROTATION
000
<<
<<
<<
OSM DISPLAY FORM
001
<<
<<
<<
HUE ENABLE
000
CHIP REVISION: xx
(Depend on IC rev.)
5 LED SELECT
001
<<
<<
<<
LED BRIGHTNESS
020
<<
<<
<<
LED COLOR
000
<<
<<
<<
LED WARNING TIMING
001
002
001
<<
TEMP. REC MODE
000
<<
<<
<<
TEMP. REC INTERVAL
001
<<
<<
<<
TEMP. REC SAMPLE
010
<<
<<
<<
xxxxxxxxxxxxxxxxxx
----
----
----
----
xxxxxxxxxxxxxxxxxx
----
----
----
----
xxxxxxxxxxxxxxxxxx
----
----
----
----
6 HOURS RUNNING
----
----
----
----
ON
----
----
----
----
OFF
----
----
----
----
2006.02.04.
DIAG
ERROR
NUMBER
description
change

08GR1LAY-L
SHT 30/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
TAG
Menu
Group 1
Group 2
Group 3
Group 4
7 FRAME LOCK 50Hz
000
<<
<<
<<
H SYNC EDGE SELECT
001
<<
<<
<<
FACT V SYNC DELAY
000
<<
<<
<<
HW ROTATE SELECT
000
<<
<<
<<
AUTO SIZE DEVIDE SELECT
004
<<
<<
<<
DVI JITTER TOLERANCE
002
<<
<<
<<
COLORCOMP START UP SW
000
<<
<<
<<
COLORCOMP ROTATE SW
000
<<
<<
<<
8 DDR PHASE
000
<<
<<
<<
DQS0 PHASE
005
<<
<<
<<
DQS1 PHASE
005
<<
<<
<<
DQS2 PHASE
004
<<
<<
<<
DQS3 PHASE
004
<<
<<
<<
9 OSM/OSD
OSM
<<
<<
OSD
EDGE LOCK / CLAMP POSITION
EDGE LOCK
<<
<<
<<
IPM / OFF MODE
IPM
<<
<<
OFF MODE
COLORCOMP / UNIFORMITY / MURA COLORCOMP.
<<
<<
MURA
TILE MATRIX / TILING
TILE MATRIX
<<
<<
<<
TILE COMP / FRAME CUT
TILE COMP
<<
<<
<<
OVER DRIVE / RESPONSE IMPROVE OVER DRIVE
<<
<<
RESPONSE IMPROVE
URL / ROM / EEPROM / NONE
EEPROM
<<
<<
<<
A DIMMER INTERVAL
75
<<
<<
<<
PWM DUTY
(2710)
<<
<<
<<
PWM-R
(0)
<<
<<
<<
PWM-G
(0)
<<
<<
<<
PWM-B
(0)
<<
<<
<<
BRIGHTNESS
(depend on PWM)
<<
<<
<<
DIMMER SENSOR
(read)
<<
<<
<<
TEMP SENS1/2
(read / 00.0)
<<
<<
<<
LUMI R/G/B
(0000)
<<
<<
<<
B G SENSE VALUE
(read)
<<
<<
<<
G SENSE TEST
000
<<
<<
<<
OG(SELECT TO SET)
(0G Data)
<<
<<
<<
THRESHOLD(OFFSET)
017
<<
<<
<<
HYSTERESIS
4
<<
<<
<<
ROTATE AUTO
ON
<<
<<
<<
STATUS
(read)
<<
<<
<<
C AUTO BRIGHTNESS
000
<<
<<
<<
BRIGHTNESS
10000
<<
<<
<<
BRIGHTNESS DARK
03000
<<
<<
<<
DIMMER RANGE1
017
<<
<<
<<
DIMMER RANGE2
080
<<
<<
<<
PWM DUTY
10000
<<
<<
<<
DIMMER SENSOR
080
<<
<<
<<

08GR1LAY-L
SHT 31/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
TAG
Menu
Group 1
Group 2
Group 3
Group 4
D (Signal Count Data)
----
----
----
----
E BkRegHexBin[1]
--- -
--- -
----
----
Bk Reg Hex Bin [2]
--- -
----
----
----
Bk Reg Hex Bin [3]
--- -
----
----
----
Bk Reg Hex Bin [4]
--- -
----
----
----
Bk Reg Hex Bin [5]
--- -
----
----
----
Bk Reg Hex Bin [6]
--- -
----
----
----
Bk Reg Hex Bin [7]
--- -
----
----
----
Bk Reg Hex Bin [8]
--- -
----
----
----
F V850: (IC100 parts number)
(depend on FW)
<<
<<
<<
VER: (Firmware Version)
(depend on FW)
<<
<<
<<
COR: (ROM Correction data)
(depend on FW)
<<
<<
<<
DATE: (F/W release date)
(depend on FW)
<<
<<
<<
CHIP REVISION: xx
(Depend on IC rev.)
<<
<<
<<
CHECK SUM: xxxxxxxx
--- -
--- -
----
----
DEBUG MENU
----
----
----
----
G (BLANK)
----
----
----
----

08GR1LAY-L
SHT 32/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
9. Timing Table
Horizontal
Vertical
No
Timing
name
Dot
Clock
[MHz]
Fh
[KHz]
Th
[us]
Sync
Pulse
Ths
[us]
Front
Porch
Thf
[us]
Back
Porch
Thb
[us]
Disp.
Ti me
Thd
[us]
FV
[Hz]
Tv
[ms]
Sync
Pulse
Tvs
[ms]
Front
Porch
Tvf
[ms]
Back
Porch
Tvb
[ms]
Disp.
Time
Tvd
[ms]
HS,
VS
Polarity
Preset Check
1 MAC13 30.24
35.00
(Dot)
28.57
864
2.12
64
2.12
64
3.17
96
21.16
640
66.67
(Line)
15.00
525
0.09
3
0.09
3
1.11
39
13.71
480
N,N
2 MAC16 57.24
46.69
(Dot)
20.13
1152
1.12
64
0.56
32
3.91
224
14.54
832
74.49
(Line)
13.42
667
0.06
3
0.02
1
0.78
39
12.56
624
N,N
3
720350
70
28.32
31.47
(Dot)
31.78
900
3.81
108
0.64
18
1.91
54
25.42
720
70.08
(Line)
14.27
449
0.06
2
1.18
37
1.91
60
11.12
350
P,N
4
VESA
720
28.32
31.47
(Dot)
31.78
900
3.81
108
0.64
18
1.91
54
25.42
720
70.08
(Line)
14.27
449
0.06
2
0.41
13
1.08
34
12.71
400
N,P
5
720350
85
35.50
37.93
(Dot)
26.37
936
2.03
72
1.01
36
3.04
108
20.28
720
85.04
(Line)
11.76
446
0.08
3
0.84
32
1.61
61
9.23
350
P,N
6
720400
85
35.50
37.93
(Dot)
26.37
936
2.03
72
1.01
36
3.04
108
20.28
720
85.04
(Line)
11.76
446
0.08
3
0.03
1
1.11
42
10.55
400
N,P
7 VGA60 25.175
31.47
(Dot)
31.78
800
3.81
96
0.64
16
1.91
48
25.42
640
59.94
(Line)
16.68
525
0.06
2
0.32
10
1.05
33
15.25
480
N,N
8 VGA72 31.50
37.86
(Dot)
26.41
832
1.27
40
0.76
24
4.06
128
20.32
640
72.81
(Line)
13.73
520
0.08
3
0.24
9
0.74
28
12.68
480
N,N
9 VGA75 31.50
37.50
(Dot)
26.67
840
2.03
64
0.51
16
3.81
120
20.32
640
75.00
(Line)
13.33
500
0.08
3
0.03
1
0.43
16
12.80
480
N,N
10 VGA85 36.00
43.27
(Dot)
23.11
832
1.56
56
1.56
56
2.22
80
17.78
640
85.01
(Line)
11.76
509
0.07
3
0.02
1
0.58
25
11.09
480
N,N
11 SVGA56 36.00 35 .16
(Dot)
28.44
1024
2.00
72
0.67
24
3.56
128
22.22
800
56.25
(Line)
17.78
625
0.06
2
0.03
1
0.63
22
17.07
600
P,P
12 SVGA60 40.00 37 .88
(Dot)
26.40
1056
3.20
128
1.00
40
2.20
88
20.00
800
60.32
(Line)
16.58
628
0.11
4
0.03
1
0.61
23
15.84
600
P,P
13 SVGA72 50.00
48.08
(Dot)
20.80
1040
2.40
120
1.12
56
1.28
64
16.00
800
72.19
(Line)
13.85
666
0.12
6
0.77
37
0.48
23
12.48
600
P,P
14 SVGA75 49.50
46.88
(Dot)
21.33
1056
1.62
80
0.32
16
3.23
160
16.16
800
75.00
(Line)
13.33
625
0.06
3
0.02
1
0.45
21
12.80
600
P,P
15 SVGA85 56.25 53.67
(Dot)
18.63
1048
1.14
64
0.57
32
2.70
152
14.22
800
85.06
(Line)
11.76
631
0.06
3
0.02
1
0.50
27
11.18
600
P,P
16 XGA60 65.00 48.36
(Dot)
20.68
1344
2.09
136
0.37
24
2.46
160
15.75
1024
60.00
(Line)
16.67
806
0.12
6
0.06
3
0.60
29
15.88
768
N,N
17-19 : See another production spec.
20 VESA1152 108.00 67 .50
(Dot)
14.82
1600
1.19
128
0.59
64
2.37
256
10.67
1152
75.00
(Line)
13.33
900
0.04
3
0.02
1
0.47
32
12.80
864
P,P
21 SUN1152 94.50
61.85
(Dot)
16.17
1528
1.35
128
0.42
40
2.20
208
12.19
1152
66.00
(Line)
15.15
937
0.06
4
0.03
2
0.50
31
14.55
900
P,P
22 VESA1280
x960
108.00 60 .00
(Dot)
16.67
1800
1.04
112
0.89
96
2.89
312
11.85
1280
60.00
(Line)
16.67
1000
0.05
3
0.016
1
0.60
36
16.00
960
P,P
23 SXGA60 108.00 63.981
(Dot)
15.63
1688
1.04
112
0.44
48
2.30
248
11.85
1280
60.02
(Line)
16.66
1066
0.05
3
0.02
1
0.59
38
16.00
1024
P,P
24 SUN66 117.00 71.69
(Dot)
13.95
1632
0.96
112
0.14
16
1.91
224
10.94
1280
67.2
(Line)
14.88
1067
0.11
8
0.03
2
0.46
33
14.28
1024
P,P
25 SXGA75 135.00 79 .98
(Dot)
12.50
1688
1.07
144
0.12
16
1.84
248
9.48
1280
75.03
(Line)
13.33
1066
0.04
3
0.01
1
0.48
38
12.80
1024
P,P
26 SUN76 135.00 81.13
(Dot)
12.33
1664
0.47
64
0.24
32
2.13
288
9.48
1280
76.1
(Line)
13.14
1066
0.10
8
0.02
2
0.39
32
12.62
1024
P,P
27 SXGA75
S/G
135.00
79.98
(Dot)
12.50
1688
1.07
144
0.12
16
1.84
248
9.48
1280
75.03
(Line)
13.33
1066
0.04
3
0.01
1
0.48
38
12.80
1024
S/G
28 SXGA75
COMP 135.00 79 .98
(Dot)
12.50
1688
1.07
144
0.12
16
1.84
248
9.48
1280
75.03
(Line)
13.33
1066
0.04
3
0.01
1
0.48
38
12.80
1024
P,P
29 72K90 100.00 72.67
(Dot)
13.76
1376
1.28
128
0.32
32
1.92
192
10.24
1024
90.50
(Line)
11.05
803
0.04
3
0.014
1
0.427
31
10.57
768
N,N
30 EGA-TEST 21.053
24.83
(Dot)
40.28
848
3.04
64
2.8
59
4.04
85
30.4
640
51.72
(Line)
19.33
480
0.322
8
2.376
59
0.52
13
16.112
400
N,N
31 1600x1200
60
162.00 75 .00
(Dot)
13.33
2160
1.19
192
0.40
64
1.88
304
9.88
1600
60.00
(Line)
16.67
1250
0.04
3
0.01
1
0.61
46
16.00
1200
P,P
32 1600x1200
60 S/G 162.00 75.00
(Dot)
13.33
2160
1.19
192
0.40
64
1.88
304
9.88
1600
60.00
(Line)
16.67
1250
0.04
3
0.01
1
0.61
46
16.00
1200
S/G
33 SXGA85 157.50 91.15
(Dot)
11.00
1728
1.02
160
0.41
64
1.42
224
8.13
1280
85.02
(Line)
11.80
1072
0.03
3
0.01
1
0.48
44
11.24
1024
P,P
34 1600x1200
65
175.50 81.25
(Dot)
12.31
2160
1.094
192
0.365
64
1.732
304
9.117
1600
65.00
(Line)
15.39
1250
0.037
3
0.012
1
0566
46
14.769
1200
P,P
35 1200x1600
60
162.25
99.42
(Dot)
10.06
1632
0.789
128
0.542
88
1.331
216
7.396
1200
59.96 16.68
1658
0.101
10
0.030
3
0.452
45
16.094
1600
N,P

08GR1LAY-L
SHT 33/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 1. Product Cosmetic Inspection Standard
A1-1 . Purpose and Application
This standard is concerned with the “Product Cosmetic Inspection Standard” and it shall be applied when
it’s pointed.
A1-2 . Definition
“Cosmetic appearance” is exterior surface of product including exposed and hidden function area.
A-1 -3 . Practical use
According to product cosmetic inspection standard, apply to “appearance surface”. When in doubt, refer to
QC and Engineering department for confirmation.
A1-4 . Inspection and judgment method
A1-4 -1 . Exterior inspection
A1-4 -1 -1 . Exterior standard specification
(1) Application standard
Apply APPENDIX 1.2 .”Exterior standard specification “ according to the standard below.
Class1. (special control) : Special accuracy requirement.
Class2. (standard control) : Normal standard
(2) Position of defects and spec.
Appearance of A to F of APPENDIX 1.2 is as shown below.
A Front surface
B Top surface
C
T/S-STAND overall surface and Side surface
D Rear surface
E Hidden function area
Cover up area of door
Exposed area
Moving area
F Bottom surface
F
B
D
C
C
A

08GR1LAY-L
SHT 34/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
A1-4 -1 -2 . Inspection method
(1) Inspection shall be done by Visual inspection.
(2) Inspector
Inspector shall have eyesight of 1.0 1.5 and able to recognize color.(Can correct by glasses)
(3) Luminance
The luminance of the circumference portion to be inspected shall be 800 1000 lx.
(4) Light source
The daylight fluorescent lamp shall be used for light source. Should be 1.5m away from the part. If
it’s not able to judge under the daylight fluorescent lamp, the sunlight shall be used for light source.
(5) Position
The material shall be inspected visually with normal operating condition. Holding the material by
hand to inspect it is allowed.
(6) Inspection timing
Inspection time is as follows.
F
r
o
n
t
s
u
r
f
a
c
e 10 second
Top surface
5 second
S
i
d
e
s
u
r
f
a
c
e 5 second
Rear surface
5 second
Bottom surface
5 second
A1-4 -1 -3 . Judgment
If a fault is not discovered by visual inspection, it regards as success. When a fault is
discovered, it regards as success if either off the following (1), (2) or (3) is satisfied. When
having any doubts about the Judgment, arrange the limit sample or limit criteria individually
and use it.
(1) Appearance defect dimension.
The defect class is within the specified class in the appearance defect dimension
gauge(APPENDIX 1.1).
Several defects in the circle 10mm across are regard as a defect by synthesizing the area of
the defects.
2 Distance which isn’t able to discriminate the defect (Discriminated distance)
Distance which isn’t able to judge the defect shall be within the discriminated distance in the
appearance defect standard table(APPENDIX 1.2) when inspection is done in the state
where a display monitor is used.

08GR1LAY-L
SHT 35/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(3) A general limit sample or an individual limit sample
The inspected defect is within a general limit sample or an individual limit sample.
(Note) When there are several defects, regard them as not passed if it’s not satisfied the following.
Defect conditions
Defect Programs
Defect numbers
Satisfy with both (1) and(2)
No regulation
When including the defect that not
satisfy either (1) or (2)
More than 100mm apart
More than 100mm apart
LCD
Front--- equal or less than 2
Top----- equal or less than 3
Side----- equal or less than 3
Back---- equal or less than 4
Bottom--- no regulation
< The area of inspection (Fig.1)>

08GR1LAY-L
SHT 36/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 1.1
Appearance defect dimension gauge
NEC DISPLAY SOLUTIONS

08GR1LAY-L
SHT 37/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS

08GR1LAY-L
SHT 38/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 2. Clearance dimension standard
(1) The GAP between BEZEL and LCD
A-D:0.1to1.6mm
(2) The step of between BEZEL and BACK
Step= +0.8 to -0.2 mm
Bezel convex: +
Bezel concavity: -

08GR1LAY-L
SHT 39/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(3) The gap of the between BEZEL and BACK should be within specification.
X= Top side: Max 0.8mm
others : Max 1.0mm

08GR1LAY-L
SHT 40/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(4) Vertical LIFT check
1) The amount of slides ; Min 150mm
2) Operation force:
: The lowest point(A) Raising MAX 29.4N (3.0kg) and should not auto rise.
: The highest point(B) depress MAX 29.4N (3.0kg) and should not auto fall.
(Should not be given acceleration at the time of measurement.)
3) Operation force should be smooth.
There should be no noise at the time of operation.
(5) Swivel check
Swivel area : 340 degrees (right and left --it rotates in the same range)
1) Operation force: MAX 29.4N (3.0kg) and should not be moving by
the operation force of Power SW.
(Should not be given acceleration at the time of measurement)
2) Operation force should be uniform.
3) Should not be noise at the time of operation.
F
lowest point(A)
highest point(B)
F
Fr
Fl

08GR1LAY-L
SHT 41/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(6) Range of PIVOT (monitor position : after moved to upper side.)
1) Range of PIVOT ; 90 degrees (Right rotation: From horizontal to vertical)
Slant of Horizontal level ; Limit of the slant to right and down:
0.25 degrees.
Limit of the slant to right and up:
0.75 degrees.
Slant of Vertical level ; Limit of the slant to right and down:
0.8 degrees.
Limit of the slant to right and up:
0.3 degrees.
2) Operation force : MAX 29.4N (3.0kg) and should not auto fall.
( At the time of Operation from Horizontal to vertical)
(Should not be given acceleration at the time of measurement)
3) Operation force should be uniform.
4) Should not be noise at the time of operation
The hole of most

08GR1LAY-L
SHT 42/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
(7) Range of TILT
1) Area of TILT ; Up Min 30 degrees / Down Max 5 degrees
2) Operation force ; MAX 29.4N (3.0kg) and should not auto sag.
(Should not be given acceleration at the time of measurement)
3) Operation force should be uniform
4) Should not be noise at the time of operation
F

08GR1LAY-L
SHT 43/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 3. EDID Data Structure
How to analyze the EDID data.
EDID data is composed by many basic information of a monitor. Structure table is followings
010203040506070809
10
000
00FFFFFFFFFFFF00
38
A3
010
B066010101010310
01
03
020
80291F78EAA6A5A3
57
4A
030
9D25125054BFEF80
31
59
040
45596159714F8159
81
99
050
A9400101483F4030
62
B0
060
324040C013009832
11
00
070
001E000000FD0032
55
1F
080
5C11000A20202020
20
20
090
000000FC004C4344
32
30
100
39305558690A2020
00
00
110
00FF003631303030
30
30
120
3159410A20200054
Above example :
ID-SERIAL = 00000000 (Now, not in use)
manufacturing year and week = 3 week of year 2006
Clock. Frequency =Vertical(MIN)50Hz, Vertical(MAX)85Hz,
Horizontal(MIN)31K, Horizontal(MAX)92K, CLK(MAX)162MHz
Model name = LCD2090UXi
SERIAL number = 61000001YA
ID-SERIAL
Product Year /
week
Clock and
Frequency
Model Name
SERIAL number

08GR1LAY-L
SHT 44/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
EDID DATA DUMP TEXT
--
Group1-4
--
(A) ANALOG EDID DATA DUMP TEXT
Manufacturer Code: NEC
Product Code (HEX): 66B1
Product Code (DEC): 26289
(Microsoft INF ID: NEC66B1)
Serial Number (HEX): SN
Week of Manuf: WW
Year of Manuf: YY
EDID Version: 1
EDID Revision: 3
Extension Flag: 0
Video:
Input Signal: ANALOG
Setup:NO
Sync on Green: YES
Composite Sync: YES
Separate Sync: YES
V Sync Serration: NO
V Signal Level:
0.700V/0.300V (1V p-p)
Max Image Size H: 40.8 cm
Max Image Size V: 30.6 cm
DPMS Stand By: YES
DPMS Suspend: YES
DPMS Active Off: YES
GTF Support: NO
Standard Default Color Space: NO
Preferred Timing Mode: YES
Display Type: RGB Color
Color:
Gamma:2.20
Red x: 0.639
Red y: 0.342
Green x: 0.290
Green y: 0.615
Blue x: 0.146
Blue y: 0.072
White x: 0.313
White y: 0.329
Established Timings:
720x400 @ 70 Hz
640x480 @ 60 Hz
640x480 @ 67 Hz
640x480 @ 72 Hz
640x480 @ 75 Hz
800x600 @ 56 Hz
800x600 @ 60 Hz
800x600 @ 72 Hz
800x600 @ 75 Hz
832x624 @ 75 Hz
1024x768 @ 60 Hz
1024x768 @ 70 Hz
1024x768 @ 75 Hz
1152x870 @ 75 Hz
1280x1024 @ 75 Hz
Standard Timing #1:
Horizontal Active Pixels: 640
Aspect Ratio: 4:3
(480 active lines)
Refresh Rate: 85 Hz
Standard Timing #2:
Horizontal Active Pixels: 800
Aspect Ratio: 4:3
(600 active lines)
Refresh Rate: 85 Hz
Standard Timing #3:
Horizontal Active Pixels: 1024
Aspect Ratio: 4:3
(768 active lines)
Refresh Rate: 85 Hz
Standard Timing #4:
Horizontal Active Pixels: 1152
Aspect Ratio: 4:3
(864 active lines)
Refresh Rate: 75 Hz
Standard Timing #5:
Horizontal Active Pixels: 1280
Aspect Ratio: 4:3
(960 active lines)
Refresh Rate: 85 Hz
Standard Timing #6:
Horizontal Active Pixels: 1280
Aspect Ratio: 5:4
(1024 active lines)
Refresh Rate: 85 Hz
Standard Timing #7:
Horizontal Active Pixels: 1600
Aspect Ratio: 4:3
(1200 active lines)
Refresh Rate: 60 Hz
Standard Timing #8:
NOT USED
Detailed Timing (block #1):
--- Preferred Timing Mode---
Pixel Clock: 162.00 MHz
Horizontal Active: 1600 pixels
Horizontal Blanking: 560 pixels
Vertical Active: 1200 lines
Vertical Blanking: 50 lines
(Horizontal Frequency: 75.00 kHz)
(Vertical Frequency: 60.0 Hz)
Horizontal Sync Offset: 64 pixels
Horizontal Sync Width: 192 pixels
Vertical Sync Offset: 1 line
Vertical Sync Width: 3 lines
Horizontal Border: 0 pixels
Vertical Border: 0 lines
Horizontal Image Size: 408 mm
Vertical Image Size: 306 mm
Interlaced: NO
Image: Normal Display
Sync: Digital Separate
Bit1:ON
Bit2:ON
Monitor Range Limits (block #2):
Minimum Vertical Rate: 50 Hz
Maximum Vertical Rate: 85 Hz
Minimum Horizontal Rate: 31 kHz
Maximum Horizontal Rate: 92KHz
Maximum Pixel Clock: 162 MHz
GTFData:000a202020202020
Monitor Name (block #3):
LCD2090UXi
Monitor Serial Number (block #4): S2
SN: Serial number
WW: Week of Manufacture
YY: Year of Manufacture
S2: ASCII Serial Number
ANALOG EDID DATA DUMP HEX
00FFFFFFFFFFFF00
38A3B16601010101
WWYY01030E291F78
EAA6A5A3574A9D25
125054BFEF803159
45596159714F8159
8199A9400101483F
403062B0324040C0
130098321100001E
000000FD0032551F
5C11000A20202020
2020000000FC004C
4344323039305558
690A2020000000FF
00S2S2S2S2S2S2S2
S2S2S2S2202000CS
WW: Week of Manufacture
YY: Year of Manufacture
S2: ASCII Serial Number
CS: Check Sum

08GR1LAY-L
SHT 45/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
--
Group1-4
--
(B) DIGITAL EDID DATA DUMP TEXT
Manufacturer Code: NEC
Product Code (HEX): 66B0
Product Code (DEC): 26288
(Microsoft INF ID: NEC66B1)
Serial Number (HEX): SN
Week of Manuf: WW
Year of Manuf: YY
EDID Version: 1
EDID Revision: 3
Extension Flag: 0
Video:
Input Signal: DIGITAL
Setup:NO
Sync on Green: NO
Composite Sync: NO
Separate Sync: NO
V Sync Serration: NO
V Signal Level: NO
Max Image Size H: 40.8 cm
Max Image Size V: 30.6 cm
DPMS Stand By: YES
DPMS Suspend: YES
DPMS Active Off: YES
GTF Support: NO
Standard Default Color Space: NO
Preferred Timing Mode: YES
Display Type: RGB Color
Color:
Gamma:2.20
Red x: 0.639
Red y: 0.342
Green x: 0.290
Green y: 0.615
Blue x: 0.146
Blue y: 0.072
White x: 0.313
White y: 0.329
Established Timings:
720x400 @ 70 Hz
640x480 @ 60 Hz
640x480 @ 67 Hz
640x480 @ 72 Hz
640x480 @ 75 Hz
800x600 @ 56 Hz
800x600 @ 60 Hz
800x600 @ 72 Hz
800x600 @ 75 Hz
832x624 @ 75 Hz
1024x768 @ 60 Hz
1024x768 @ 70 Hz
1024x768 @ 75 Hz
1152x870 @ 75 Hz
1280x1024 @ 75 Hz
Standard Timing #1:
Horizontal Active Pixels: 640
Aspect Ratio: 4:3
(480 active lines)
Refresh Rate: 85 Hz
Standard Timing #2:
Horizontal Active Pixels: 800
Aspect Ratio: 4:3
(600 active lines)
Refresh Rate: 85 Hz
Standard Timing #3:
Horizontal Active Pixels: 1024
Aspect Ratio: 4:3
(768 active lines)
Refresh Rate: 85 Hz
Standard Timing #4:
Horizontal Active Pixels: 1152
Aspect Ratio: 4:3
(864 active lines)
Refresh Rate: 75 Hz
Standard Timing #5:
Horizontal Active Pixels: 1280
Aspect Ratio: 4:3
(960 active lines)
Refresh Rate: 85 Hz
Standard Timing #6:
Horizontal Active Pixels: 1280
Aspect Ratio: 5:4
(1024 active lines)
Refresh Rate: 85 Hz
Standard Timing #7:
Horizontal Active Pixels: 1600
Aspect Ratio: 4:3
(1200 active lines)
Refresh Rate: 60 Hz
Standard Timing #8:
NOT USED
Detailed Timing (block #1):
- -- Preferred Timing Mode---
Pixel Clock: 162.00 MHz
Horizontal Active: 1600 pixels
Horizontal Blanking: 560 pixels
Vertical Active: 1200 lines
Vertical Blanking: 50 lines
(Horizontal Frequency: 75.00 kHz)
(Vertical Frequency: 60.0 Hz)
Horizontal Sync Offset: 64 pixels
Horizontal Sync Width: 192 pixels
Vertical Sync Offset: 1 line
Vertical Sync Width: 3 lines
Horizontal Border: 0 pixels
Vertical Border: 0 lines
Horizontal Image Size: 408 mm
Vertical Image Size: 306 mm
Interlaced: NO
Image: Normal Display
Sync: Digital Separate
Bit1:ON
Bit2:ON
Monitor Range Limits (block #2):
Minimum Vertical Rate: 50 Hz
Maximum Vertical Rate: 85 Hz
Minimum Horizontal Rate: 31 kHz
Maximum Horizontal Rate: 92KHz
Maximum Pixel Clock: 162 MHz
GTFData:000a202020202020
Monitor Name (block #3):
LCD2090UXi
Monitor Serial Number (block #4): S2
SN: Serial number
WW: Week of Manufacture
YY: Year of Manufacture
S2: ASCII Serial Number
DIGITAL EDID DATA DUMP HEX
00FFFFFFFFFFFF00
38A3B06601010101
WWYY010380291F78
EAA6A5A3574A9D25
125054BFEF803159
45596159714F8159
8199A9400101483F
403062B0324040C0
130098321100001E
000000FD0032551F
5C11000A20202020
2020000000FC004C
4344323039305558
690A2020000000FF
00S2S2S2S2S2S2S2
S2S2S2S2202000CS
WW: Week of Manufacture
YY: Year of Manufacture
S2: ASCII Serial Number
CS: Check Sum

08GR1LAY-L
SHT 46/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 4. LCD display faults
Inspection should be done by the inspector’s eye with input timing of No. 31.
Inspection patterns: Full white, full black, single full each color of R,G and B, 128/255 Full White
LCD Pixel faults Criteria
1 Appearance Criterion
Display Defect Specifications (compliant with ISO13406-2 Pixel faults class II)
(1) Inspection conditions
Temperature
:
25±5 deg. C .
Viewing distance
:
35-50 cm (The distance between the inspector’s eye and screen.)
Direction and Illumination : -20°
X+20,
-0°
Y +20°
300-700 Lux (normal 500 Lux)
(2) Display faults specifications
Items
Criteria
Remarks
1) Bright Dots
Max. 0
2) Dark Dots
Horizontally adjacent 2 dots (R+G, G+B)
Max. 2
Note 1
3) Bright Dots
Not Allowed
Adjacent Dots
4) Dark Dots
Horizontally, vertically or combined adjacent 3 dots
(separately bright dots and dark dots)
Not Allowed
Note 2
5)
R,G,B>1/2(size)
Max. 2
6)
within 10mm*10mm
Max. 3
7)
Bright Dots
1/20<R,G,B<=1/2(size)
total
Max. 8
Note 3
8)
Max. 5
9)
Dark Dots
Total 2) + 8)
Max. 6
Dot Defect
10) Total amount of Dot
Defects
Max. 8
11) Distance between bright
dots
Distance between same colored bright dots : less than
5.9mm
Max. 2 for
each color
Note 4
12) Distance between 6)'s
Distance between 6)s : less than 9mm
Not Allowed
Note 5
Two or more sub-pixels with fault of 5) within a 5x5
block of pixels
Max. 3
Note 6
Two or more pixels or sub-pixels with fault of 1) within
a 5x5 block of pixels
Fault Cluster and
Min. Distance
between bright dots
13) Fault cluster
Two or more pixels or sub-pixels with fault of 2) within
a 5x5 block of pixels
Not Allowed
Note 7
Note 8. Every dot herein means sub-pixel (each Red, Green or Blue color)
Note 9. Do not use the [ND] filter in counting a bright dot.

08GR1LAY-L
SHT 47/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
Note 1. Horizontally adjacent 2 dots (R+G, G+B)
Note 2. Horizontally, Vertically or combined adjacent 3 dots
(Separately bright dots and dark dots)
: Bright Dot
: Dark Dot
Combination
with Bright
& Dark Dot
Combination except horizontally
adjacent 2 dots.
Count as horizontally adjacent 2 dots
Do not count as adjacent 2 dots
Count as adjacent 3 dots
Do not count as adjacent 3 dots

08GR1LAY-L
SHT 48/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
Note 3. Small bright dot which can be seen on 64 gray pattern is to be counted as one small bright dot defect.
(Max N 3 within 10mm*10mm, Total Max N 8)
Size of small bright dot (1/20<R,G,B<=1/2)
Note 4. Distance between bright dots
Note 5. Distance between the group of 6)'s
Note 6. Count as 1 cluster : Two or more sub-pixels with fault of 5) within 5x5 pixels
Note 7. Count as 1 cluster : Two or more pixels or sub-pixels with fault of 1) or 2) within 5x5 pixels
5.9mm
5.9mm
5.9mm
9mm
5.9mm
5.9mm
9mm
5.9mm
9mm
Count as defect
Distance between the same color
Combination with Bright Dot &
Dark Dot
Combination with the different
color
5.9mm 5.9mm 5.9mm 5.9mm
5.9mm 5.9mm 5.9mm
5.9mm
5.9mm
Count as defect
Do not count as defect
5x5 pixels
5x5 pixels
5x5 pixels
Count as defect
Do not count as defect
The number of cluster within all screen : Max. 3
1 Cluster
5x5 pixels
Dot Defect (5)

08GR1LAY-L
SHT 49/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
2 Polarizer Defects
Items
Criteria
Scratches
Linear
0.1 W 0.2,0.3 L 2.0,N 3
Dent
Circular
D 0.5,N 3
Note)
a. Average Diameter
b.Linear:a>2b,Circular:a
2b
c. Extraneous substances which can be wiped out, like Finger Print, Particles, are not considered
as a defect.
d. Defects which is on the Black Matrix(outside of Active Area) are not considered as a defect.
3 Foreign Material
Items
Criteria
Linear
W 0.1,0.3 L 2.0
;N
3
Foreign
Material
Circular
0.2 D 0.5
;N
3
Note)
a. Average Diameter
b. Linear : W 0.1, Circular : 0.1 < W
4 Line Defect
All kinds of line defects such as vertical, horizontal or cross are not allowed.
5 Bezel Appearance
Scratches, minor bents, stains, particles on the Bezel frame are not considered as a defect.
6 Others
Issues, which are not defined in these criteria, shall be discussed with both parties, Customer and
Supplier, for better solution.
W :Width
L : Length
D : Average diameter
a
b
D=
a+b
2
W : Width
L : Length
D : Average diameter
a
b
D=
a+b
2

08GR1LAY-L
SHT 50/50
LCD2090UXi In-Process
Inspection specification
/ NL0GR1AL
NEC DISPLAY SOLUTIONS
APPENDIX 5. Main PWB Function Test
See function Test Item file.

3-1
DISASSEMBLY
g Before you disassemble the set, turn off power and pull out the power plug.
g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged.
g Assembly is the opposite process of disassembly.
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
1
1A701141
79PQ9488
<G>COVER OUTER WH
White
1
1A701151
79PQ9049
<G>COVER OUTER BK
Black
2
1A003311
79PQ9531
<G>STAND UNIT WH
White
2
1A003321
79PQ9452
<G>STAND UNIT BK
Black
2
1

3-2
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
3
1D301061
79PQ9480
<G>SC CBIMS3X10X3G
White
3
1D301051
79PQ9376
<G>SC CBIMS3X10X3K
Black
4
1D000901
79PQ9051
<G>SC #2CPISSX3X6X3K
---
5
KL0WB1WL
79PQ9551
<G>SKD BACK ASSY LCD2090U
White
5
KL0WB2WL
79PQ9471
<G>SKD BACK ASSY LCD2090U
Black
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
6
1D000831
---
<G>SC #2CPISSX3X6X16B
---
7
1B303141
---
<G>SHIELD BACK ASSY L205G
---
8
1B303111
---
<G>BRACKET INV L205GR
---
3
4
5
6
7
8
6

3-3
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
9
1D301041
---
<G>SC CBIMS3X6X3G
---
10
1D301031
---
<G>P4X6+SPW+WAS MC(NI)
---
11
1D300201
---
<G>SCR 4#-40TX4.8HLX4HLX5
---
12
1K108551
79PQ9538
<G>BEZEL L205GR WH
White
12
1K108561
79PQ9461
<G>BEZEL L205GR BK
Black
13
1D000831
---
<G>SC #2CPISSX3X6X16B
---
14
1B301291
---
<G>BRACKET LID19
---
9
10
10
13
11
14
12

3-4
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
15
1D000861
---
<G>SC PL-#2CPISSX3X8X16B
---
16
J8100541
79PQ9466
<G>U INVERT L205GR
---
17
AM0GR1ML
79PQ9462
<G>MAIN INSERT ASSY ROHS
---
18
R3201941
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
---
19
79PQ9469
79PQ9439
<G>WIRE CC31P/8P 1516#30L
---
20
R3201951
79PQ9438
<G>WIRE CC9P 1007#26L100
---
21
J8100551
79PQ9428
<G>U PW SUPPLY S39235K
---
ACN2
21
15
15
15
17
16
ACN1
BCN2
BCN1
CN61
S103
S271
S551
S261
CN1
CN2
18
19
20

3-5
Symbol For U.S ./Europe
(NPG Part Number)
For Asia/Australia/China
(NECDS Part Number)
Description
Cabinet
Color
22
J8100601
79PQ9483
<G>U FPC SW ASSY WHT LCD1
White
22
J8100611
79PQ9429
<G>U FPC SW ASSY BLK LCD1
Black
23
1D300831
---
<G>BM 3X5.7 BLACK-NI
---
24
1B001361
---
<G>BRACKET BASE ASSY L20
---
25
3A684129
3A684129
<G>TFT LM20105-SLB1 LPL
---
23
23
25
22
24

REPLACEMENT PARTS LIST
TABLE OF CONTENTS
Model LCD2090UXi (A) (For U.S .) ............. .... . .... .... . ................ 8-2
Model LCD2090UXi-BK (A) (For U.S.) ................. . .... .... . . ............ 8-22
Model LCD2090UXi (B) (For Europe)........................................... 8-42
Model LCD2090UXi-BK (B) (For Europe)......................................8-62
Model LCD2090UXi (A) (For Asia/Australia)................................. 8-82
Model LCD2090UXi-BK (A) (For Asia/Australia).............................8-102
Model LCD2090UXi (B) (For Asia/Australia)................................. 8-122
Model LCD2090UXi-BK (B) (For Asia/Australia).............................8-142
Model LCD2090UXi (C) (For China).............................................8-162
Model LCD2090UXi-BK (C) (For China)....................................... 8-182
8-1

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi(A)
(For U.S)
SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
*** ICS ***
IC100
E1A13091
<G>IC SMD UPD70F3261YGC-8
IC171
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC172
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC183
E1A13171
<G>IC SMD XC6108N33AMR RE
IC1H1
E1A13171
<G>IC SMD XC6108N33AMR RE
IC211
E1A13081
<G>IC SMD XC9223B081AR RE
IC221
E1A13081
<G>IC SMD XC9223B081AR RE
IC231
E1A13081
<G>IC SMD XC9223B081AR RE
IC241
E1A13121
<G>IC SMD LT1961EMS8E#TRP
IC291
E1A10951
<G>IC SMD NJM2870F18 REGU
IC2A1
E1A10141
<G>IC SMD NJM2870F33 REGU
IC361
E1A10131
<G>IC SMD NJM319V LINEAR
IC381
E1A10131
<G>IC SMD NJM319V LINEAR
IC3E1
E1A11071
<G>IC SMD TA76431F
IC3E2
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC3E3
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC401
E1A13151
<G>IC SMD NDS0001B-LF CAV
IC601
E1A13101
<G>IC SMD K4D263238G-VC36
IC701
E1A12621
<G>IC SMD RTC8564JE
IC702
E1A11771
<G>IC SMD TCN75-3 .3MUA713
IC704
E1A13181
<G>IC SMD ADXL322JCP-REEL
IC851
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC852
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC853
E1A10821
<G>IC SMD X9116WM8Z-2 .7T1
IC854
E1A13111
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
E2A00281
<G>TR SMD 2SA1037AK F T14
Q152
E2A00281
<G>TR SMD 2SA1037AK F T14
Q153
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F1
E3K00051
<G>FET SMD CPH6311-TL -E
Q1F2
E2A00201
<G>TR SMD DTA144WKAT146 P
Q1F3
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F4
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F5
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F6
E2A00251
<G>TR SMD 2SC2412K F T146
Q1F7
E2A00061
<G>TR SMD DTC144EKAT146 N
Q251
E3K00051
<G>FET SMD CPH6311-TL -E
Q252
E2A00061
<G>TR SMD DTC144EKAT146 N
8-2

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
Q261
E3K00011
<G>FET SMD 2SK3018 T106
Q262
E2A00061
<G>TR SMD DTC144EKAT146 N
Q263
E3K00051
<G>FET SMD CPH6311-TL -E
Q264
E2A00061
<G>TR SMD DTC144EKAT146 N
Q341B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q342B
E2A00071
<G>TR SMD DTA144EKAT146
Q342G
E2A00071
<G>TR SMD DTA144EKAT146
Q342R
E2A00071
<G>TR SMD DTA144EKAT146
Q34K
E3K00051
<G>FET SMD CPH6311-TL -E
Q34L
E2A00061
<G>TR SMD DTC144EKAT146 N
Q34M
E2A00061
<G>TR SMD DTC144EKAT146 N
Q351B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q352B
E2A00071
<G>TR SMD DTA144EKAT146
Q352G
E2A00071
<G>TR SMD DTA144EKAT146
Q352R
E2A00071
<G>TR SMD DTA144EKAT146
Q361
E3K00181
<G>FET SMD 2SK360-E
Q362
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q381
E3K00181
<G>FET SMD 2SK360-E
Q382
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q3E1
E2A00061
<G>TR SMD DTC144EKAT146 N
Q701
E3K00011
<G>FET SMD 2SK3018 T106
Q702
E3K00011
<G>FET SMD 2SK3018 T106
Q821
E2A00281
<G>TR SMD 2SA1037AK F T14
Q851
E3K00011
<G>FET SMD 2SK3018 T106
Q852
E3K00011
<G>FET SMD 2SK3018 T106
Q853
E2A00061
<G>TR SMD DTC144EKAT146 N
Q854
E3K00011
<G>FET SMD 2SK3018 T106
Q855
E2A00251
<G>TR SMD 2SC2412K F T146
Q856
E2A00061
<G>TR SMD DTC144EKAT146 N
Q857
E2A00061
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
E4K00251
<G>DI SMD 1SS355 F TE-17
D162
E4K00251
<G>DI SMD 1SS355 F TE-17
D163
E4K00251
<G>DI SMD 1SS355 F TE-17
D164
E4K00251
<G>DI SMD 1SS355 F TE-17
D165
E4K00251
<G>DI SMD 1SS355 F TE-17
D166
E4K00251
<G>DI SMD 1SS355 F TE-17
D167
E4K00251
<G>DI SMD 1SS355 F TE-17
D168
E4K00261
<G>DI SMD DAN217 F T146
D183
E4K00251
<G>DI SMD 1SS355 F TE-17
8-3

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
D1F1
E4K00271
<G>DI SMD RB495DT146
D1F2
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F3
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F4
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H1
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H2
E4K00251
<G>DI SMD 1SS355 F TE-17
D241
E4K00441
<G>DI SMD RB160M-30TR
D290
E4K00441
<G>DI SMD RB160M-30TR
D311
E4K00261
<G>DI SMD DAN217 F T146
D312
E4K00261
<G>DI SMD DAN217 F T146
D313
E4K00261
<G>DI SMD DAN217 F T146
D314
E4K00261
<G>DI SMD DAN217 F T146
D315
E4K00261
<G>DI SMD DAN217 F T146
D316
E4K00261
<G>DI SMD DAN217 F T146
D317
E4K00261
<G>DI SMD DAN217 F T146
D318
E4K00261
<G>DI SMD DAN217 F T146
D320A
E4K00251
<G>DI SMD 1SS355 F TE-17
D320B
E4K00261
<G>DI SMD DAN217 F T146
D320G
E4K00261
<G>DI SMD DAN217 F T146
D320R
E4K00261
<G>DI SMD DAN217 F T146
D321
E4K00261
<G>DI SMD DAN217 F T146
D322
E4K00261
<G>DI SMD DAN217 F T146
D323
E4K00261
<G>DI SMD DAN217 F T146
D324
E4K00261
<G>DI SMD DAN217 F T146
D325
E4K00261
<G>DI SMD DAN217 F T146
D326
E4K00261
<G>DI SMD DAN217 F T146
D327
E4K00261
<G>DI SMD DAN217 F T146
D328
E4K00261
<G>DI SMD DAN217 F T146
D330A
E4K00251
<G>DI SMD 1SS355 F TE-17
D330B
E4K00261
<G>DI SMD DAN217 F T146
D330G
E4K00261
<G>DI SMD DAN217 F T146
D330R
E4K00261
<G>DI SMD DAN217 F T146
D341B
E4K00011
<G>DI SMD 1SS356TW11
D341G
E4K00011
<G>DI SMD 1SS356TW11
D341R
E4K00011
<G>DI SMD 1SS356TW11
D351B
E4K00011
<G>DI SMD 1SS356TW11
D351G
E4K00011
<G>DI SMD 1SS356TW11
D351R
E4K00011
<G>DI SMD 1SS356TW11
D820
E4K00261
<G>DI SMD DAN217 F T146
D821
E4K00271
<G>DI SMD RB495DT146
D831
E4K00271
<G>DI SMD RB495DT146
ZD181
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD183
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD311
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD312
E6D40362
<G>ZD SMD UDZS3.6BTE-17
8-4

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
ZD321
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD322
E6D40362
<G>ZD SMD UDZS3.6BTE-17
ZD331
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
J8100541
<G>U INVERT L205GR
MAIN1
AM0GR1ML
<G>MAIN INSERT ASSY ROHS
POWER1
J8100551
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
H4011811
<G>L SMD BEAD BK1608LM252
B103
H4011811
<G>L SMD BEAD BK1608LM252
B151
H4011811
<G>L SMD BEAD BK1608LM252
B152
H4011811
<G>L SMD BEAD BK1608LM252
B153
H4011811
<G>L SMD BEAD BK1608LM252
B161
H4011811
<G>L SMD BEAD BK1608LM252
B162
H4011811
<G>L SMD BEAD BK1608LM252
B163
H4011811
<G>L SMD BEAD BK1608LM252
B164
H4011811
<G>L SMD BEAD BK1608LM252
B165
H4011811
<G>L SMD BEAD BK1608LM252
B166
H4011811
<G>L SMD BEAD BK1608LM252
B167
H4011811
<G>L SMD BEAD BK1608LM252
B168
H4011811
<G>L SMD BEAD BK1608LM252
B169
H4011811
<G>L SMD BEAD BK1608LM252
B1F1
H4019281
<G>L SMD BEAD FBMH3216HM5
B201
H4019281
<G>L SMD BEAD FBMH3216HM5
B211
H4019281
<G>L SMD BEAD FBMH3216HM5
B221
H4019281
<G>L SMD BEAD FBMH3216HM5
B231
H4019281
<G>L SMD BEAD FBMH3216HM5
B261
H4019281
<G>L SMD BEAD FBMH3216HM5
B291
H4011811
<G>L SMD BEAD BK1608LM252
B2A1
H4011811
<G>L SMD BEAD BK1608LM252
B361
H4020011
<G>L SMD BEAD BKP1608HS33
B362
H4020011
<G>L SMD BEAD BKP1608HS33
B381
H4020011
<G>L SMD BEAD BKP1608HS33
B382
H4020011
<G>L SMD BEAD BKP1608HS33
B3E1
H4020011
<G>L SMD BEAD BKP1608HS33
B3E2
H4020011
<G>L SMD BEAD BKP1608HS33
B3E3
H4020011
<G>L SMD BEAD BKP1608HS33
B401
H4011811
<G>L SMD BEAD BK1608LM252
B402
H4011811
<G>L SMD BEAD BK1608LM252
B431
H4011681
<G>L SMD BEAD BK1608HS601
B433
H4011681
<G>L SMD BEAD BK1608HS601
B435
H4011811
<G>L SMD BEAD BK1608LM252
B436
H4011811
<G>L SMD BEAD BK1608LM252
8-5

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
B441
H4011681
<G>L SMD BEAD BK1608HS601
B445
H4011811
<G>L SMD BEAD BK1608LM252
B446
H4011811
<G>L SMD BEAD BK1608LM252
B447
H4011811
<G>L SMD BEAD BK1608LM252
B448
H4011811
<G>L SMD BEAD BK1608LM252
B451
H4011681
<G>L SMD BEAD BK1608HS601
B452
H4011811
<G>L SMD BEAD BK1608LM252
B461
H4011681
<G>L SMD BEAD BK1608HS601
B471
H4011681
<G>L SMD BEAD BK1608HS601
B481
H4019281
<G>L SMD BEAD FBMH3216HM5
B487
H4011811
<G>L SMD BEAD BK1608LM252
B488
H4011811
<G>L SMD BEAD BK1608LM252
B489
H4011811
<G>L SMD BEAD BK1608LM252
B621
H4019281
<G>L SMD BEAD FBMH3216HM5
B631
H4019281
<G>L SMD BEAD FBMH3216HM5
B704
H4011811
<G>L SMD BEAD BK1608LM252
B853
H4020011
<G>L SMD BEAD BKP1608HS33
FL218
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL225
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL233
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL551
H1B00207
<G>L SMD NFE31PT222Z1E9L
L211
H1B00169
<G>L SMD SLF7030T-100M1R3
L221
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L231
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L241
H1B00169
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
R5010531
<G>CABLE VIDEO GRY DVID-D
CBL2
R5010541
<G>CABLE VIDEO GRY DVIA-D
CBL3
R5010571
<G>CABLE VIDEO GRY DSUB-D
CBL4
R7021031
<G>PW CORD USA 2M GRY I-S
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
R3201971
<G>WIRE CC31P/8P 1516#30L
SWBD1
J8100601
<G>U FPC SW ASSY WHT LCD1
WIRE1
R3201941
<G>WIRE CC13P/8P5P 1007#2
WIRE2
R3201951
<G>WIRE CC9P 1007#26L100
X100
E82K0101
<G>OSC SMD CSTCR4M91G55-R
X401
E81K0201
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
KL0WB1WL
<G>SKD BACK ASSY LCD2090U
COVER1
1A701141
<G>COVER OUTER WH
FRONT1
1K108551
<G>BEZEL L205GR WH
SCR01
1D301061
<G>SC CBIMS3X10X3G
SCR02
1D000901
<G>SC #2CPISSX3X6X3K
8-6

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
SCR03
1D300831
<G>BM 3X5.7 BLACK-NI
SCR04
1D301031
<G>P4X6+SPW+WAS MC(NI)
SCR05
1D000831
<G>SC #2CPISSX3X6X16B
SCR06
1D301041
<G>SC CBIMS3X6X3G
SCR07
1D000121
<G>SCREW CUP 3X8X15BF
SCR08
1D300201
<G>SCR 4#-40TX4.8HLX4HLX5
STAND1
1A003311
<G>STAND UNIT WH
*** PRINTED & PACKING MATERIALS ***
CTN1
1C205671
<G>CARTON BOX L205GR WHA
CTN2
1C203011
<G>CARTON SHEET
EPS1
1C401991
<G>FILLER T L205GR
EPS2
1C402001
<G>FILLER B L205GR
LBL1
1E004851
<G>LABEL RATING L205GR WH
MANU1
1E504741
<G>MANUAL ASSY LCD2090UXI
MANU2
1E802481
<G>SHEET SETUP L205GR A
PE1
1C700522
<G>PACKING BAG
PE2
1C700741
<G>BAG POLYETHYLENE 170X9
PE3
1C700361
<G>BAG PE 175X260
*** RESISTORS ***
B281
F7110000
<G>R SMD METAL 1/4W 0 J 1
B282
F7110000
<G>R SMD METAL 1/4W 0 J 1
B2E1
F7010000
<G>R SMD METAL 1/10W 0 J
B320B
F7010000
<G>R SMD METAL 1/10W 0 J
B320G
F7010000
<G>R SMD METAL 1/10W 0 J
B320R
F7010000
<G>R SMD METAL 1/10W 0 J
B330B
F7010000
<G>R SMD METAL 1/10W 0 J
B330G
F7010000
<G>R SMD METAL 1/10W 0 J
B330R
F7010000
<G>R SMD METAL 1/10W 0 J
B360
F7010000
<G>R SMD METAL 1/10W 0 J
F281
B7015021
<G>R SMD FUSE MINISMDC150
MR103
F9221013
<G>R SMD NET 1/16W 100 J
MR104
F9221013
<G>R SMD NET 1/16W 100 J
MR105
F9221013
<G>R SMD NET 1/16W 100 J
MR121
F9221013
<G>R SMD NET 1/16W 100 J
MR122
F9221013
<G>R SMD NET 1/16W 100 J
MR151
F9221033
<G>R SMD NET 1/16W 10K J
MR152
F9221033
<G>R SMD NET 1/16W 10K J
MR401
F9223303
<G>R SMD NET 1/16W 33 J (
MR402
F9223303
<G>R SMD NET 1/16W 33 J (
MR403
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR404
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR405
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR406
F9220003
<G>R SMD NET 1/16W 0 J 8P
8-7

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
MR407
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR450H
F9223303
<G>R SMD NET 1/16W 33 J (
MR450L
F9223303
<G>R SMD NET 1/16W 33 J (
MR451H
F9223303
<G>R SMD NET 1/16W 33 J (
MR451L
F9223303
<G>R SMD NET 1/16W 33 J (
MR452H
F9223303
<G>R SMD NET 1/16W 33 J (
MR452L
F9223303
<G>R SMD NET 1/16W 33 J (
MR453H
F9223303
<G>R SMD NET 1/16W 33 J (
MR453L
F9223303
<G>R SMD NET 1/16W 33 J (
MR454
F9223303
<G>R SMD NET 1/16W 33 J (
MR455
F9223303
<G>R SMD NET 1/16W 33 J (
MR456
F9223303
<G>R SMD NET 1/16W 33 J (
R100
F7010105
<G>R SMD METAL 1/10W 1.0M
R102
F7010103
<G>R SMD METAL 1/10W 10K
R103
F7010103
<G>R SMD METAL 1/10W 10K
R104
F7010330
<G>R SMD METAL 1/10W 33 J
R105
F7010103
<G>R SMD METAL 1/10W 10K
R106
F7010330
<G>R SMD METAL 1/10W 33 J
R107
F7010330
<G>R SMD METAL 1/10W 33 J
R108
F7010330
<G>R SMD METAL 1/10W 33 J
R109
F7010330
<G>R SMD METAL 1/10W 33 J
R110
F7010330
<G>R SMD METAL 1/10W 33 J
R111
F7010330
<G>R SMD METAL 1/10W 33 J
R112
F7010330
<G>R SMD METAL 1/10W 33 J
R113
F7010330
<G>R SMD METAL 1/10W 33 J
R114
F7010330
<G>R SMD METAL 1/10W 33 J
R115
F7010223
<G>R SMD METAL 1/10W 22K
R116
F7010473
<G>R SMD METAL 1/10W 47K
R117
F7010473
<G>R SMD METAL 1/10W 47K
R121
F7010102
<G>R SMD METAL 1/10W 1.0K
R122
F7010101
<G>R SMD METAL 1/10W 100
R123
F7010101
<G>R SMD METAL 1/10W 100
R124
F7010101
<G>R SMD METAL 1/10W 100
R125
F7010101
<G>R SMD METAL 1/10W 100
R126
F7010330
<G>R SMD METAL 1/10W 33 J
R128
F7010330
<G>R SMD METAL 1/10W 33 J
R129
F7010330
<G>R SMD METAL 1/10W 33 J
R131
F7010330
<G>R SMD METAL 1/10W 33 J
R132
F7010330
<G>R SMD METAL 1/10W 33 J
R133
F7010330
<G>R SMD METAL 1/10W 33 J
R134
F7010330
<G>R SMD METAL 1/10W 33 J
R135
F7010330
<G>R SMD METAL 1/10W 33 J
R136
F7010330
<G>R SMD METAL 1/10W 33 J
R137
F7010330
<G>R SMD METAL 1/10W 33 J
R138
F7010330
<G>R SMD METAL 1/10W 33 J
8-8

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R140
F7010000
<G>R SMD METAL 1/10W 0 J
R141
F7010000
<G>R SMD METAL 1/10W 0 J
R142
F7010000
<G>R SMD METAL 1/10W 0 J
R143
F7010101
<G>R SMD METAL 1/10W 100
R144
F7010104
<G>R SMD METAL 1/10W 100K
R146
F7010104
<G>R SMD METAL 1/10W 100K
R148
F7010104
<G>R SMD METAL 1/10W 100K
R149
F7010000
<G>R SMD METAL 1/10W 0 J
R14A
F7010104
<G>R SMD METAL 1/10W 100K
R151
F8016800
<G>R SMD METAL 1/10W 680
R152
F8016800
<G>R SMD METAL 1/10W 680
R153
F7010182
<G>R SMD METAL 1/10W 1.8K
R154
F7010182
<G>R SMD METAL 1/10W 1.8K
R155
F7010682
<G>R SMD METAL 1/10W 6.8K
R156
F7010682
<G>R SMD METAL 1/10W 6.8K
R157
F7010473
<G>R SMD METAL 1/10W 47K
R158
F7010103
<G>R SMD METAL 1/10W 10K
R159
F7010101
<G>R SMD METAL 1/10W 100
R160
F7010101
<G>R SMD METAL 1/10W 100
R161
F7100102
<G>R SMD METAL 1/8W 1.0K
R162
F7100102
<G>R SMD METAL 1/8W 1.0K
R163
F7100102
<G>R SMD METAL 1/8W 1.0K
R164
F7100102
<G>R SMD METAL 1/8W 1.0K
R165
F7100102
<G>R SMD METAL 1/8W 1.0K
R166
F7100102
<G>R SMD METAL 1/8W 1.0K
R167
F7100102
<G>R SMD METAL 1/8W 1.0K
R168
F7100102
<G>R SMD METAL 1/8W 1.0K
R169
F7010334
<G>R SMD METAL 1/10W 330K
R171
F7010103
<G>R SMD METAL 1/10W 10K
R172
F7010103
<G>R SMD METAL 1/10W 10K
R184
F8013903
<G>R SMD METAL 1/10W 390K
R185
F8012203
<G>R SMD METAL 1/10W 220K
R186
F7010104
<G>R SMD METAL 1/10W 100K
R187
F8011000
<G>R SMD METAL 1/10W 100
R188
F7010182
<G>R SMD METAL 1/10W 1.8K
R189
F7010682
<G>R SMD METAL 1/10W 6.8K
R191
F7010103
<G>R SMD METAL 1/10W 10K
R193
F7010103
<G>R SMD METAL 1/10W 10K
R195
F7010103
<G>R SMD METAL 1/10W 10K
R1F1
F7010102
<G>R SMD METAL 1/10W 1.0K
R1F2
F7010103
<G>R SMD METAL 1/10W 10K
R1F3
F7010223
<G>R SMD METAL 1/10W 22K
R1F4
F7010103
<G>R SMD METAL 1/10W 10K
R1F5
F7010152
<G>R SMD METAL 1/10W 1.5K
R1F6
F7010103
<G>R SMD METAL 1/10W 10K
8-9

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R1F7
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F8
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F9
F7010560
<G>R SMD METAL 1/10W 56 J
R1H1
F7010824
<G>R SMD METAL 1/10W 820K
R1H2
F7010103
<G>R SMD METAL 1/10W 10K
R1H3
F7010104
<G>R SMD METAL 1/10W 100K
R1H4
F7010102
<G>R SMD METAL 1/10W 1.0K
R1H5
F8012202
<G>R SMD METAL 1/10W 22K
R1H6
F8011503
<G>R SMD METAL 1/10W 150K
R1H7
F7010104
<G>R SMD METAL 1/10W 100K
R1H8
F7010102
<G>R SMD METAL 1/10W 1.0K
R201
F7110000
<G>R SMD METAL 1/4W 0 J 1
R203M
F7010000
<G>R SMD METAL 1/10W 0 J
R203N
F7010000
<G>R SMD METAL 1/10W 0 J
R20UX
F7010000
<G>R SMD METAL 1/10W 0 J
R211
F7010000
<G>R SMD METAL 1/10W 0 J
R212
F8011503
<G>R SMD METAL 1/10W 150K
R213
F8011503
<G>R SMD METAL 1/10W 150K
R214
F8012203
<G>R SMD METAL 1/10W 220K
R215
F8011003
<G>R SMD METAL 1/10W 100K
R216
F8011003
<G>R SMD METAL 1/10W 100K
R217
F7010000
<G>R SMD METAL 1/10W 0 J
R221
F7010000
<G>R SMD METAL 1/10W 0 J
R222
F7010000
<G>R SMD METAL 1/10W 0 J
R223
F8015103
<G>R SMD METAL 1/10W 510K
R224
F8012403
<G>R SMD METAL 1/10W 240K
R225
F8011003
<G>R SMD METAL 1/10W 100K
R226
F8015602
<G>R SMD METAL 1/10W 56K
R231
F7010000
<G>R SMD METAL 1/10W 0 J
R232
F7010000
<G>R SMD METAL 1/10W 0 J
R233
F8014703
<G>R SMD METAL 1/10W 470K
R234
F8011503
<G>R SMD METAL 1/10W 150K
R235
F8011503
<G>R SMD METAL 1/10W 150K
R236
F8015602
<G>R SMD METAL 1/10W 56K
R241
F8013903
<G>R SMD METAL 1/10W 390K
R242
F8015102
<G>R SMD METAL 1/10W 51K
R243M
F7010000
<G>R SMD METAL 1/10W 0 J
R243N
F7010000
<G>R SMD METAL 1/10W 0 J
R245
F7010103
<G>R SMD METAL 1/10W 10K
R246
F8012202
<G>R SMD METAL 1/10W 22K
R247
F8011203
<G>R SMD METAL 1/10W 120K
R248
F8011002
<G>R SMD METAL 1/10W 10K
R249
F7010000
<G>R SMD METAL 1/10W 0 J
R251
F7010333
<G>R SMD METAL 1/10W 33K
R252
F7010104
<G>R SMD METAL 1/10W 100K
8-10

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R261
F7310681
<G>R SMD METAL 3/4W 680 J
R262
F7310681
<G>R SMD METAL 3/4W 680 J
R263
F7010102
<G>R SMD METAL 1/10W 1.0K
R264
F7010103
<G>R SMD METAL 1/10W 10K
R265
F8011003
<G>R SMD METAL 1/10W 100K
R266
F8013302
<G>R SMD METAL 1/10W 33K
R267
F7010000
<G>R SMD METAL 1/10W 0 J
R268
F7010000
<G>R SMD METAL 1/10W 0 J
R269
F7010333
<G>R SMD METAL 1/10W 33K
R270
F7010000
<G>R SMD METAL 1/10W 0 J
R271
F7010101
<G>R SMD METAL 1/10W 100
R272
F7010101
<G>R SMD METAL 1/10W 100
R273
F7010101
<G>R SMD METAL 1/10W 100
R274
F7010105
<G>R SMD METAL 1/10W 1.0M
R291
F7010103
<G>R SMD METAL 1/10W 10K
R2A1
F7010103
<G>R SMD METAL 1/10W 10K
R312
F7010101
<G>R SMD METAL 1/10W 100
R313
F7010101
<G>R SMD METAL 1/10W 100
R314
F7010222
<G>R SMD METAL 1/10W 2.2K
R315N
F7010100
<G>R SMD METAL 1/10W 10 J
R315P
F7010100
<G>R SMD METAL 1/10W 10 J
R316N
F7010100
<G>R SMD METAL 1/10W 10 J
R316P
F7010100
<G>R SMD METAL 1/10W 10 J
R317N
F7010100
<G>R SMD METAL 1/10W 10 J
R317P
F7010100
<G>R SMD METAL 1/10W 10 J
R318N
F7010100
<G>R SMD METAL 1/10W 10 J
R318P
F7010100
<G>R SMD METAL 1/10W 10 J
R320E
F7010104
<G>R SMD METAL 1/10W 100K
R320H
F7010330
<G>R SMD METAL 1/10W 33 J
R320V
F7010330
<G>R SMD METAL 1/10W 33 J
R322
F7010101
<G>R SMD METAL 1/10W 100
R323
F7010101
<G>R SMD METAL 1/10W 100
R324
F7010222
<G>R SMD METAL 1/10W 2.2K
R325N
F7010100
<G>R SMD METAL 1/10W 10 J
R325P
F7010100
<G>R SMD METAL 1/10W 10 J
R326N
F7010100
<G>R SMD METAL 1/10W 10 J
R326P
F7010100
<G>R SMD METAL 1/10W 10 J
R327N
F7010100
<G>R SMD METAL 1/10W 10 J
R327P
F7010100
<G>R SMD METAL 1/10W 10 J
R328N
F7010100
<G>R SMD METAL 1/10W 10 J
R328P
F7010100
<G>R SMD METAL 1/10W 10 J
R329H
F7010222
<G>R SMD METAL 1/10W 2.2K
R329V
F7010222
<G>R SMD METAL 1/10W 2.2K
R330E
F7010104
<G>R SMD METAL 1/10W 100K
R330H
F7010330
<G>R SMD METAL 1/10W 33 J
8-11

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R330V
F7010330
<G>R SMD METAL 1/10W 33 J
R332
F7010101
<G>R SMD METAL 1/10W 100
R333
F7010101
<G>R SMD METAL 1/10W 100
R339H
F7010222
<G>R SMD METAL 1/10W 2.2K
R339V
F7010222
<G>R SMD METAL 1/10W 2.2K
R341A
F7010000
<G>R SMD METAL 1/10W 0 J
R341B
F8527509
<G>R SMD METAL 1/2W 75 F
R341G
F8527509
<G>R SMD METAL 1/2W 75 F
R341R
F8527509
<G>R SMD METAL 1/2W 75 F
R342B
F7010103
<G>R SMD METAL 1/10W 10K
R342G
F7010103
<G>R SMD METAL 1/10W 10K
R342R
F7010103
<G>R SMD METAL 1/10W 10K
R343B
F7010153
<G>R SMD METAL 1/10W 15K
R343G
F7010153
<G>R SMD METAL 1/10W 15K
R343R
F7010153
<G>R SMD METAL 1/10W 15K
R344B
F7010101
<G>R SMD METAL 1/10W 100
R344G
F7010101
<G>R SMD METAL 1/10W 100
R344R
F7010101
<G>R SMD METAL 1/10W 100
R345B
F7010331
<G>R SMD METAL 1/10W 330
R345G
F7010331
<G>R SMD METAL 1/10W 330
R345R
F7010331
<G>R SMD METAL 1/10W 330
R346B
F7010510
<G>R SMD METAL 1/10W 51 J
R346G
F7010510
<G>R SMD METAL 1/10W 51 J
R346R
F7010510
<G>R SMD METAL 1/10W 51 J
R347B
F7010102
<G>R SMD METAL 1/10W 1.0K
R347G
F7010102
<G>R SMD METAL 1/10W 1.0K
R347R
F7010102
<G>R SMD METAL 1/10W 1.0K
R348B
F7010473
<G>R SMD METAL 1/10W 47K
R348G
F7010473
<G>R SMD METAL 1/10W 47K
R348R
F7010473
<G>R SMD METAL 1/10W 47K
R349B
F7010000
<G>R SMD METAL 1/10W 0 J
R349G
F7010000
<G>R SMD METAL 1/10W 0 J
R349R
F7010000
<G>R SMD METAL 1/10W 0 J
R34K
F7010473
<G>R SMD METAL 1/10W 47K
R34L
F7010101
<G>R SMD METAL 1/10W 100
R351A
F7010000
<G>R SMD METAL 1/10W 0 J
R351B
F8527509
<G>R SMD METAL 1/2W 75 F
R351G
F8527509
<G>R SMD METAL 1/2W 75 F
R351R
F8527509
<G>R SMD METAL 1/2W 75 F
R352B
F7010103
<G>R SMD METAL 1/10W 10K
R352G
F7010103
<G>R SMD METAL 1/10W 10K
R352R
F7010103
<G>R SMD METAL 1/10W 10K
R353B
F7010153
<G>R SMD METAL 1/10W 15K
R353G
F7010153
<G>R SMD METAL 1/10W 15K
R353R
F7010153
<G>R SMD METAL 1/10W 15K
8-12

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R354B
F7010101
<G>R SMD METAL 1/10W 100
R354G
F7010101
<G>R SMD METAL 1/10W 100
R354R
F7010101
<G>R SMD METAL 1/10W 100
R355B
F7010331
<G>R SMD METAL 1/10W 330
R355G
F7010331
<G>R SMD METAL 1/10W 330
R355R
F7010331
<G>R SMD METAL 1/10W 330
R356B
F7010510
<G>R SMD METAL 1/10W 51 J
R356G
F7010510
<G>R SMD METAL 1/10W 51 J
R356R
F7010510
<G>R SMD METAL 1/10W 51 J
R357B
F7010102
<G>R SMD METAL 1/10W 1.0K
R357G
F7010102
<G>R SMD METAL 1/10W 1.0K
R357R
F7010102
<G>R SMD METAL 1/10W 1.0K
R358B
F7010473
<G>R SMD METAL 1/10W 47K
R358G
F7010473
<G>R SMD METAL 1/10W 47K
R358R
F7010473
<G>R SMD METAL 1/10W 47K
R359B
F7010000
<G>R SMD METAL 1/10W 0 J
R359G
F7010000
<G>R SMD METAL 1/10W 0 J
R359R
F7010000
<G>R SMD METAL 1/10W 0 J
R361
F7010104
<G>R SMD METAL 1/10W 100K
R362
F7010104
<G>R SMD METAL 1/10W 100K
R363
F7010102
<G>R SMD METAL 1/10W 1.0K
R364
F7010561
<G>R SMD METAL 1/10W 560
R365
F7010221
<G>R SMD METAL 1/10W 220
R366
F7010103
<G>R SMD METAL 1/10W 10K
R367
F7010223
<G>R SMD METAL 1/10W 22K
R368
F8011302
<G>R SMD METAL 1/10W 13K
R369
F7010101
<G>R SMD METAL 1/10W 100
R371
F7010332
<G>R SMD METAL 1/10W 3.3K
R372
F7010472
<G>R SMD METAL 1/10W 4.7K
R373
F7010471
<G>R SMD METAL 1/10W 470
R374
F7010330
<G>R SMD METAL 1/10W 33 J
R375
F8015601
<G>R SMD METAL 1/10W 5.6K
R376
F8011500
<G>R SMD METAL 1/10W 150
R377
F8013300
<G>R SMD METAL 1/10W 330
R378
F8012201
<G>R SMD METAL 1/10W 2.2K
R381
F7010104
<G>R SMD METAL 1/10W 100K
R382
F7010104
<G>R SMD METAL 1/10W 100K
R383
F7010102
<G>R SMD METAL 1/10W 1.0K
R384
F7010561
<G>R SMD METAL 1/10W 560
R385
F7010221
<G>R SMD METAL 1/10W 220
R386
F7010103
<G>R SMD METAL 1/10W 10K
R387
F7010223
<G>R SMD METAL 1/10W 22K
R389
F7010101
<G>R SMD METAL 1/10W 100
R391
F7010332
<G>R SMD METAL 1/10W 3.3K
R392
F7010472
<G>R SMD METAL 1/10W 4.7K
8-13

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R393
F7010471
<G>R SMD METAL 1/10W 470
R394
F7010330
<G>R SMD METAL 1/10W 33 J
R395
F8012701
<G>R SMD METAL 1/10W 2.7K
R396
F8015600
<G>R SMD METAL 1/10W 560
R397
F8011500
<G>R SMD METAL 1/10W 150
R398
F8011101
<G>R SMD METAL 1/10W 1.1K
R3E1
F7010471
<G>R SMD METAL 1/10W 470
R3E2
F7010330
<G>R SMD METAL 1/10W 33 J
R3E3
F7010330
<G>R SMD METAL 1/10W 33 J
R3E4
F7010330
<G>R SMD METAL 1/10W 33 J
R3E5
F7010330
<G>R SMD METAL 1/10W 33 J
R3E6
F8012201
<G>R SMD METAL 1/10W 2.2K
R3E7
F8016801
<G>R SMD METAL 1/10W 6.8K
R3E8
F8012202
<G>R SMD METAL 1/10W 22K
R401
F8013900
<G>R SMD METAL 1/10W 390
R411A
F7010471
<G>R SMD METAL 1/10W 470
R411B
F7010270
<G>R SMD METAL 1/10W 27 J
R411G
F7010270
<G>R SMD METAL 1/10W 27 J
R411H
F7010330
<G>R SMD METAL 1/10W 33 J
R411R
F7010270
<G>R SMD METAL 1/10W 27 J
R411V
F7010330
<G>R SMD METAL 1/10W 33 J
R412B
F7010220
<G>R SMD METAL 1/10W 22 J
R412G
F7010220
<G>R SMD METAL 1/10W 22 J
R412R
F7010220
<G>R SMD METAL 1/10W 22 J
R413A
F7010471
<G>R SMD METAL 1/10W 470
R413B
F7010270
<G>R SMD METAL 1/10W 27 J
R413G
F7010270
<G>R SMD METAL 1/10W 27 J
R413H
F7010330
<G>R SMD METAL 1/10W 33 J
R413R
F7010270
<G>R SMD METAL 1/10W 27 J
R413V
F7010330
<G>R SMD METAL 1/10W 33 J
R414B
F7010220
<G>R SMD METAL 1/10W 22 J
R414G
F7010220
<G>R SMD METAL 1/10W 22 J
R414R
F7010220
<G>R SMD METAL 1/10W 22 J
R415
F7010152
<G>R SMD METAL 1/10W 1.5K
R416
F7010152
<G>R SMD METAL 1/10W 1.5K
R417
F7010511
<G>R SMD METAL 1/10W 510
R418
F7010511
<G>R SMD METAL 1/10W 510
R421
F7010330
<G>R SMD METAL 1/10W 33 J
R422
F7010330
<G>R SMD METAL 1/10W 33 J
R423
F7010330
<G>R SMD METAL 1/10W 33 J
R424
F7010473
<G>R SMD METAL 1/10W 47K
R425
F7010473
<G>R SMD METAL 1/10W 47K
R426
F7010473
<G>R SMD METAL 1/10W 47K
R427
F7010000
<G>R SMD METAL 1/10W 0 J
R428
F7010103
<G>R SMD METAL 1/10W 10K
8-14

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R429
F7010103
<G>R SMD METAL 1/10W 10K
R431
F7010103
<G>R SMD METAL 1/10W 10K
R432
F7010103
<G>R SMD METAL 1/10W 10K
R433
F7010103
<G>R SMD METAL 1/10W 10K
R434
F7010330
<G>R SMD METAL 1/10W 33 J
R435
F7010330
<G>R SMD METAL 1/10W 33 J
R436
F7010330
<G>R SMD METAL 1/10W 33 J
R441N
F7010180
<G>R SMD METAL 1/10W 18 J
R441P
F7010180
<G>R SMD METAL 1/10W 18 J
R442
F7010330
<G>R SMD METAL 1/10W 33 J
R443
F7010330
<G>R SMD METAL 1/10W 33 J
R444
F7010330
<G>R SMD METAL 1/10W 33 J
R445
F7010330
<G>R SMD METAL 1/10W 33 J
R446
F7010330
<G>R SMD METAL 1/10W 33 J
R447
F7010330
<G>R SMD METAL 1/10W 33 J
R448
F7010330
<G>R SMD METAL 1/10W 33 J
R449
F7010330
<G>R SMD METAL 1/10W 33 J
R450
F7010330
<G>R SMD METAL 1/10W 33 J
R451
F7010330
<G>R SMD METAL 1/10W 33 J
R452
F7010330
<G>R SMD METAL 1/10W 33 J
R453
F7010330
<G>R SMD METAL 1/10W 33 J
R454
F7010330
<G>R SMD METAL 1/10W 33 J
R491
F8011001
<G>R SMD METAL 1/10W 1.0K
R492
F8011001
<G>R SMD METAL 1/10W 1.0K
R551
F7010562
<G>R SMD METAL 1/10W 5.6K
R601
F7010151
<G>R SMD METAL 1/10W 150
R602
F7010330
<G>R SMD METAL 1/10W 33 J
R603
F7010330
<G>R SMD METAL 1/10W 33 J
R604
F7010330
<G>R SMD METAL 1/10W 33 J
R605
F7010330
<G>R SMD METAL 1/10W 33 J
R611
F8011001
<G>R SMD METAL 1/10W 1.0K
R612
F8011001
<G>R SMD METAL 1/10W 1.0K
R701
F7010272
<G>R SMD METAL 1/10W 2.7K
R702
F7010272
<G>R SMD METAL 1/10W 2.7K
R703
F7010470
<G>R SMD METAL 1/10W 47 J
R704
F7010470
<G>R SMD METAL 1/10W 47 J
R705
F7010470
<G>R SMD METAL 1/10W 47 J
R706
B3Y00011
<G>R SMD METAL 1W 33 J 25
R707
F7010330
<G>R SMD METAL 1/10W 33 J
R708
F7010103
<G>R SMD METAL 1/10W 10K
R709
F7010103
<G>R SMD METAL 1/10W 10K
R710
F7010330
<G>R SMD METAL 1/10W 33 J
R711
F7010103
<G>R SMD METAL 1/10W 10K
R810
F7010103
<G>R SMD METAL 1/10W 10K
R811
B3Y00011
<G>R SMD METAL 1W 33 J 25
8-15

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R812
F8015100
<G>R SMD METAL 1/10W 510
R821
B3Y00011
<G>R SMD METAL 1W 33 J 25
R822
F8015100
<G>R SMD METAL 1/10W 510
R823
F7010101
<G>R SMD METAL 1/10W 100
R824
F7010272
<G>R SMD METAL 1/10W 2.7K
R825
F7010473
<G>R SMD METAL 1/10W 47K
R826
F7010103
<G>R SMD METAL 1/10W 10K
R830
F7010103
<G>R SMD METAL 1/10W 10K
R831
B3Y00011
<G>R SMD METAL 1W 33 J 25
R851
F7010473
<G>R SMD METAL 1/10W 47K
R852
F7010273
<G>R SMD METAL 1/10W 27K
R853
F7010473
<G>R SMD METAL 1/10W 47K
R854
F7010473
<G>R SMD METAL 1/10W 47K
R855
F7010273
<G>R SMD METAL 1/10W 27K
R856
F7010000
<G>R SMD METAL 1/10W 0 J
R857
F7010000
<G>R SMD METAL 1/10W 0 J
R858
F7010562
<G>R SMD METAL 1/10W 5.6K
R859
F7010562
<G>R SMD METAL 1/10W 5.6K
R861
F7010473
<G>R SMD METAL 1/10W 47K
R862
F7010273
<G>R SMD METAL 1/10W 27K
R863
F7010473
<G>R SMD METAL 1/10W 47K
R864
F7010473
<G>R SMD METAL 1/10W 47K
R865
F7010473
<G>R SMD METAL 1/10W 47K
R866
F7010273
<G>R SMD METAL 1/10W 27K
R867
F7010473
<G>R SMD METAL 1/10W 47K
R868
F7010473
<G>R SMD METAL 1/10W 47K
R871
F7010000
<G>R SMD METAL 1/10W 0 J
R872
F8013302
<G>R SMD METAL 1/10W 33K
R873
F8013302
<G>R SMD METAL 1/10W 33K
R874
F8013302
<G>R SMD METAL 1/10W 33K
R875
F7010103
<G>R SMD METAL 1/10W 10K
R876
F7010000
<G>R SMD METAL 1/10W 0 J
R877
F7010473
<G>R SMD METAL 1/10W 47K
R878
F7010473
<G>R SMD METAL 1/10W 47K
R879
F7010562
<G>R SMD METAL 1/10W 5.6K
R881
F7010273
<G>R SMD METAL 1/10W 27K
R882
F7010273
<G>R SMD METAL 1/10W 27K
R883
F7010273
<G>R SMD METAL 1/10W 27K
R891
F7010473
<G>R SMD METAL 1/10W 47K
R892
F7010473
<G>R SMD METAL 1/10W 47K
R893
F7010473
<G>R SMD METAL 1/10W 47K
R894
F7010473
<G>R SMD METAL 1/10W 47K
R895
F7010473
<G>R SMD METAL 1/10W 47K
R896
F7010473
<G>R SMD METAL 1/10W 47K
8-16

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
*** CAPACITORS ***
C101
M741042K
<G>C SMD B 0.1U 16V K 060
C103
M741042K
<G>C SMD B 0.1U 16V K 060
C104
M741042K
<G>C SMD B 0.1U 16V K 060
C105
M741042K
<G>C SMD B 0.1U 16V K 060
C106
M704750S
<G>C SMD X5R 4.7U 6.3V K
C109
M741042K
<G>C SMD B 0.1U 16V K 060
C112
M701060M
<G>C SMD B 10U 6.3V M 080
C113
M741042K
<G>C SMD B 0.1U 16V K 060
C114
M741042K
<G>C SMD B 0.1U 16V K 060
C115
M741042K
<G>C SMD B 0.1U 16V K 060
C144
M741042K
<G>C SMD B 0.1U 16V K 060
C146
M741042K
<G>C SMD B 0.1U 16V K 060
C148
M741042K
<G>C SMD B 0.1U 16V K 060
C161
M741042K
<G>C SMD B 0.1U 16V K 060
C162
M741042K
<G>C SMD B 0.1U 16V K 060
C163
M741042K
<G>C SMD B 0.1U 16V K 060
C164
M741042K
<G>C SMD B 0.1U 16V K 060
C165
M741042K
<G>C SMD B 0.1U 16V K 060
C166
M741042K
<G>C SMD B 0.1U 16V K 060
C167
M741042K
<G>C SMD B 0.1U 16V K 060
C168
M741042K
<G>C SMD B 0.1U 16V K 060
C171
M741042K
<G>C SMD B 0.1U 16V K 060
C172
M741042K
<G>C SMD B 0.1U 16V K 060
C184
M7410353
<G>C SMD X7R 0.01U 50V K
C186
M741042K
<G>C SMD B 0.1U 16V K 060
C1F0
M701060M
<G>C SMD B 10U 6.3V M 080
C1F1
M701060M
<G>C SMD B 10U 6.3V M 080
C1F2
M704750S
<G>C SMD X5R 4.7U 6.3V K
C1F3
M741051M
<G>CSMDB1U10VM0603
C1F4
M7439157
<G>C SMD CH 390P 50V J 06
C1F5
M741042K
<G>C SMD B 0.1U 16V K 060
C1F6
M741042K
<G>C SMD B 0.1U 16V K 060
C1F7
M7410353
<G>C SMD X7R 0.01U 50V K
C211
M701060M
<G>C SMD B 10U 6.3V M 080
C212
M701060M
<G>C SMD B 10U 6.3V M 080
C213
M701060M
<G>C SMD B 10U 6.3V M 080
C214
M7418057
<G>C SMD CH 18P 50V J 060
C216
M741042K
<G>C SMD B 0.1U 16V K 060
C221
M701060M
<G>C SMD B 10U 6.3V M 080
C222
M701060M
<G>C SMD B 10U 6.3V M 080
C223
M701060M
<G>C SMD B 10U 6.3V M 080
C224
M7418057
<G>C SMD CH 18P 50V J 060
C226
M741042K
<G>C SMD B 0.1U 16V K 060
C231
M701060M
<G>C SMD B 10U 6.3V M 080
8-17

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C232
M701060M
<G>C SMD B 10U 6.3V M 080
C233
M701060M
<G>C SMD B 10U 6.3V M 080
C234
M7418057
<G>C SMD CH 18P 50V J 060
C236
M741042K
<G>C SMD B 0.1U 16V K 060
C241
M7010535
<G>C SMD X7R 1.0U 25V M 0
C242
M7210635
<G>C SMD X7R 10U 25V M 12
C243
M7210635
<G>C SMD X7R 10U 25V M 12
C244
M7410157
<G>C SMD CH 100P 50V J 06
C245
M7410353
<G>C SMD X7R 0.01U 50V K
C251
M7410439
<G>C SMD F 0.1U 25V Z 060
C261
M7410439
<G>C SMD F 0.1U 25V Z 060
C263
M7410439
<G>C SMD F 0.1U 25V Z 060
C264
M741042K
<G>C SMD B 0.1U 16V K 060
C265
M741042K
<G>C SMD B 0.1U 16V K 060
C266
M741042K
<G>C SMD B 0.1U 16V K 060
C271
M7410157
<G>C SMD CH 100P 50V J 06
C272
M7410157
<G>C SMD CH 100P 50V J 06
C273
M7410157
<G>C SMD CH 100P 50V J 06
C281
M7410157
<G>C SMD CH 100P 50V J 06
C282
M7410157
<G>C SMD CH 100P 50V J 06
C292
M701060M
<G>C SMD B 10U 6.3V M 080
C293
M701060M
<G>C SMD B 10U 6.3V M 080
C294
M741042K
<G>C SMD B 0.1U 16V K 060
C295
M741042K
<G>C SMD B 0.1U 16V K 060
C296
M701060M
<G>C SMD B 10U 6.3V M 080
C2A2
M701060M
<G>C SMD B 10U 6.3V M 080
C2A3
M701060M
<G>C SMD B 10U 6.3V M 080
C2A4
M741042K
<G>C SMD B 0.1U 16V K 060
C2A5
M741042K
<G>C SMD B 0.1U 16V K 060
C2A6
M701060M
<G>C SMD B 10U 6.3V M 080
C311
M741042K
<G>C SMD B 0.1U 16V K 060
C312
M741042K
<G>C SMD B 0.1U 16V K 060
C320A
M741042K
<G>C SMD B 0.1U 16V K 060
C320E
M741042K
<G>C SMD B 0.1U 16V K 060
C320V
M741025K
<G>C SMD B 1000P 50V K
C321
M741042K
<G>C SMD B 0.1U 16V K 060
C322
M741042K
<G>C SMD B 0.1U 16V K 060
C330A
M741042K
<G>C SMD B 0.1U 16V K 060
C330E
M741042K
<G>C SMD B 0.1U 16V K 060
C330V
M741025K
<G>C SMD B 1000P 50V K
C340
M701060M
<G>C SMD B 10U 6.3V M 080
C341A
M701060M
<G>C SMD B 10U 6.3V M 080
C341B
M701060M
<G>C SMD B 10U 6.3V M 080
C341G
M701060M
<G>C SMD B 10U 6.3V M 080
C341R
M701060M
<G>C SMD B 10U 6.3V M 080
8-18

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C342B
M741042K
<G>C SMD B 0.1U 16V K 060
C342G
M741042K
<G>C SMD B 0.1U 16V K 060
C342R
M741042K
<G>C SMD B 0.1U 16V K 060
C343B
M741042K
<G>C SMD B 0.1U 16V K 060
C343G
M741042K
<G>C SMD B 0.1U 16V K 060
C343R
M741042K
<G>C SMD B 0.1U 16V K 060
C344B
M7422052
<G>C SMD COG 22P 50V J 06
C344G
M7422052
<G>C SMD COG 22P 50V J 06
C344R
M7422052
<G>C SMD COG 22P 50V J 06
C34K
M741042K
<G>C SMD B 0.1U 16V K 060
C350
M701060M
<G>C SMD B 10U 6.3V M 080
C351A
M701060M
<G>C SMD B 10U 6.3V M 080
C351B
M701060M
<G>C SMD B 10U 6.3V M 080
C351G
M701060M
<G>C SMD B 10U 6.3V M 080
C351R
M701060M
<G>C SMD B 10U 6.3V M 080
C352B
M741042K
<G>C SMD B 0.1U 16V K 060
C352G
M741042K
<G>C SMD B 0.1U 16V K 060
C352R
M741042K
<G>C SMD B 0.1U 16V K 060
C353B
M741042K
<G>C SMD B 0.1U 16V K 060
C353G
M741042K
<G>C SMD B 0.1U 16V K 060
C353R
M741042K
<G>C SMD B 0.1U 16V K 060
C354B
M7422052
<G>C SMD COG 22P 50V J 06
C354G
M7422052
<G>C SMD COG 22P 50V J 06
C354R
M7422052
<G>C SMD COG 22P 50V J 06
C361
M741042K
<G>C SMD B 0.1U 16V K 060
C362
M701060M
<G>C SMD B 10U 6.3V M 080
C363
M741042K
<G>C SMD B 0.1U 16V K 060
C364
M741051M
<G>CSMDB1U10VM0603
C365
M741051M
<G>CSMDB1U10VM0603
C366
M741042K
<G>C SMD B 0.1U 16V K 060
C381
M741042K
<G>C SMD B 0.1U 16V K 060
C382
M701060M
<G>C SMD B 10U 6.3V M 080
C383
M741042K
<G>C SMD B 0.1U 16V K 060
C384
M741051M
<G>CSMDB1U10VM0603
C386
M741042K
<G>C SMD B 0.1U 16V K 060
C395
M741051M
<G>CSMDB1U10VM0603
C3E1
M741042K
<G>C SMD B 0.1U 16V K 060
C3E2
M741042K
<G>C SMD B 0.1U 16V K 060
C3E3
M741042K
<G>C SMD B 0.1U 16V K 060
C3E4
M701060M
<G>C SMD B 10U 6.3V M 080
C401
M7415057
<G>C SMD CH 15P 50V J 060
C402
M7415057
<G>C SMD CH 15P 50V J 060
C403
M741042K
<G>C SMD B 0.1U 16V K 060
C407
M741042K
<G>C SMD B 0.1U 16V K 060
C408
M741042K
<G>C SMD B 0.1U 16V K 060
8-19

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C409
M741042K
<G>C SMD B 0.1U 16V K 060
C410
M741042K
<G>C SMD B 0.1U 16V K 060
C411A
M741025K
<G>C SMD B 1000P 50V K
C411B
M7447323
<G>C SMD X7R 0.047U 16V K
C411G
M7447323
<G>C SMD X7R 0.047U 16V K
C411R
M7447323
<G>C SMD X7R 0.047U 16V K
C412B
M7447323
<G>C SMD X7R 0.047U 16V K
C412G
M7447323
<G>C SMD X7R 0.047U 16V K
C412R
M7447323
<G>C SMD X7R 0.047U 16V K
C413A
M741025K
<G>C SMD B 1000P 50V K
C413B
M7447323
<G>C SMD X7R 0.047U 16V K
C413G
M7447323
<G>C SMD X7R 0.047U 16V K
C413R
M7447323
<G>C SMD X7R 0.047U 16V K
C414B
M7447323
<G>C SMD X7R 0.047U 16V K
C414G
M7447323
<G>C SMD X7R 0.047U 16V K
C414R
M7447323
<G>C SMD X7R 0.047U 16V K
C415
M7433052
<G>C SMD C0G 33P 50V J 06
C416
M7433052
<G>C SMD C0G 33P 50V J 06
C417
M7447052
<G>C SMD C0G 47P 50V J 06
C418
M7447052
<G>C SMD C0G 47P 50V J 06
C421
M741042K
<G>C SMD B 0.1U 16V K 060
C431
M741042K
<G>C SMD B 0.1U 16V K 060
C433
M741042K
<G>C SMD B 0.1U 16V K 060
C435
M741042K
<G>C SMD B 0.1U 16V K 060
C436
M741042K
<G>C SMD B 0.1U 16V K 060
C441
M741042K
<G>C SMD B 0.1U 16V K 060
C442
M741042K
<G>C SMD B 0.1U 16V K 060
C445
M741042K
<G>C SMD B 0.1U 16V K 060
C446
M741042K
<G>C SMD B 0.1U 16V K 060
C447
M741042K
<G>C SMD B 0.1U 16V K 060
C448
M741042K
<G>C SMD B 0.1U 16V K 060
C451
M741042K
<G>C SMD B 0.1U 16V K 060
C452
M741042K
<G>C SMD B 0.1U 16V K 060
C461
M741042K
<G>C SMD B 0.1U 16V K 060
C462
M741042K
<G>C SMD B 0.1U 16V K 060
C463
M741042K
<G>C SMD B 0.1U 16V K 060
C464
M741042K
<G>C SMD B 0.1U 16V K 060
C471
M741042K
<G>C SMD B 0.1U 16V K 060
C472
M741042K
<G>C SMD B 0.1U 16V K 060
C473
M701060M
<G>C SMD B 10U 6.3V M 080
C481
M701060M
<G>C SMD B 10U 6.3V M 080
C481A
M701060M
<G>C SMD B 10U 6.3V M 080
C482
M741051M
<G>CSMDB1U10VM0603
C483
M741051M
<G>CSMDB1U10VM0603
C484
M741051M
<G>CSMDB1U10VM0603
8-20

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C487
M741042K
<G>C SMD B 0.1U 16V K 060
C488
M741042K
<G>C SMD B 0.1U 16V K 060
C489
M741042K
<G>C SMD B 0.1U 16V K 060
C491
M741042K
<G>C SMD B 0.1U 16V K 060
C492
M741042K
<G>C SMD B 0.1U 16V K 060
C611
M741042K
<G>C SMD B 0.1U 16V K 060
C612
M741042K
<G>C SMD B 0.1U 16V K 060
C621
M701060M
<G>C SMD B 10U 6.3V M 080
C622
M741042K
<G>C SMD B 0.1U 16V K 060
C623
M741042K
<G>C SMD B 0.1U 16V K 060
C624
M741042K
<G>C SMD B 0.1U 16V K 060
C625
M741042K
<G>C SMD B 0.1U 16V K 060
C631
M701060M
<G>C SMD B 10U 6.3V M 080
C632
M741042K
<G>C SMD B 0.1U 16V K 060
C633
M741042K
<G>C SMD B 0.1U 16V K 060
C634
M741042K
<G>C SMD B 0.1U 16V K 060
C635
M741042K
<G>C SMD B 0.1U 16V K 060
C636
M741042K
<G>C SMD B 0.1U 16V K 060
C637
M741042K
<G>C SMD B 0.1U 16V K 060
C638
M741042K
<G>C SMD B 0.1U 16V K 060
C639
M741042K
<G>C SMD B 0.1U 16V K 060
C701
G2Y00780
<G>C ELE85 1F 5.5V N A
C702
M741042K
<G>C SMD B 0.1U 16V K 060
C703
M741042K
<G>C SMD B 0.1U 16V K 060
C704
M741042K
<G>C SMD B 0.1U 16V K 060
C705
M741051M
<G>CSMDB1U10VM0603
C810
M741042K
<G>C SMD B 0.1U 16V K 060
C820
M741042K
<G>C SMD B 0.1U 16V K 060
C851
M741042K
<G>C SMD B 0.1U 16V K 060
C852
M741042K
<G>C SMD B 0.1U 16V K 060
C853
M741042K
<G>C SMD B 0.1U 16V K 060
C854
M741042K
<G>C SMD B 0.1U 16V K 060
8-21

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi-BK(A)
(For U.S.)
SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
*** ICS ***
IC100
E1A13091
<G>IC SMD UPD70F3261YGC-8
IC171
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC172
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC183
E1A13171
<G>IC SMD XC6108N33AMR RE
IC1H1
E1A13171
<G>IC SMD XC6108N33AMR RE
IC211
E1A13081
<G>IC SMD XC9223B081AR RE
IC221
E1A13081
<G>IC SMD XC9223B081AR RE
IC231
E1A13081
<G>IC SMD XC9223B081AR RE
IC241
E1A13121
<G>IC SMD LT1961EMS8E#TRP
IC291
E1A10951
<G>IC SMD NJM2870F18 REGU
IC2A1
E1A10141
<G>IC SMD NJM2870F33 REGU
IC361
E1A10131
<G>IC SMD NJM319V LINEAR
IC381
E1A10131
<G>IC SMD NJM319V LINEAR
IC3E1
E1A11071
<G>IC SMD TA76431F
IC3E2
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC3E3
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC401
E1A13151
<G>IC SMD NDS0001B-LF CAV
IC601
E1A13101
<G>IC SMD K4D263238G-VC36
IC701
E1A12621
<G>IC SMD RTC8564JE
IC702
E1A11771
<G>IC SMD TCN75-3 .3MUA713
IC704
E1A13181
<G>IC SMD ADXL322JCP-REEL
IC851
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC852
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC853
E1A10821
<G>IC SMD X9116WM8Z-2 .7T1
IC854
E1A13111
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
E2A00281
<G>TR SMD 2SA1037AK F T14
Q152
E2A00281
<G>TR SMD 2SA1037AK F T14
Q153
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F1
E3K00051
<G>FET SMD CPH6311-TL -E
Q1F2
E2A00201
<G>TR SMD DTA144WKAT146 P
Q1F3
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F4
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F5
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F6
E2A00251
<G>TR SMD 2SC2412K F T146
Q1F7
E2A00061
<G>TR SMD DTC144EKAT146 N
Q251
E3K00051
<G>FET SMD CPH6311-TL -E
Q252
E2A00061
<G>TR SMD DTC144EKAT146 N
8-22

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
Q261
E3K00011
<G>FET SMD 2SK3018 T106
Q262
E2A00061
<G>TR SMD DTC144EKAT146 N
Q263
E3K00051
<G>FET SMD CPH6311-TL -E
Q264
E2A00061
<G>TR SMD DTC144EKAT146 N
Q341B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q342B
E2A00071
<G>TR SMD DTA144EKAT146
Q342G
E2A00071
<G>TR SMD DTA144EKAT146
Q342R
E2A00071
<G>TR SMD DTA144EKAT146
Q34K
E3K00051
<G>FET SMD CPH6311-TL -E
Q34L
E2A00061
<G>TR SMD DTC144EKAT146 N
Q34M
E2A00061
<G>TR SMD DTC144EKAT146 N
Q351B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q352B
E2A00071
<G>TR SMD DTA144EKAT146
Q352G
E2A00071
<G>TR SMD DTA144EKAT146
Q352R
E2A00071
<G>TR SMD DTA144EKAT146
Q361
E3K00181
<G>FET SMD 2SK360-E
Q362
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q381
E3K00181
<G>FET SMD 2SK360-E
Q382
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q3E1
E2A00061
<G>TR SMD DTC144EKAT146 N
Q701
E3K00011
<G>FET SMD 2SK3018 T106
Q702
E3K00011
<G>FET SMD 2SK3018 T106
Q821
E2A00281
<G>TR SMD 2SA1037AK F T14
Q851
E3K00011
<G>FET SMD 2SK3018 T106
Q852
E3K00011
<G>FET SMD 2SK3018 T106
Q853
E2A00061
<G>TR SMD DTC144EKAT146 N
Q854
E3K00011
<G>FET SMD 2SK3018 T106
Q855
E2A00251
<G>TR SMD 2SC2412K F T146
Q856
E2A00061
<G>TR SMD DTC144EKAT146 N
Q857
E2A00061
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
E4K00251
<G>DI SMD 1SS355 F TE-17
D162
E4K00251
<G>DI SMD 1SS355 F TE-17
D163
E4K00251
<G>DI SMD 1SS355 F TE-17
D164
E4K00251
<G>DI SMD 1SS355 F TE-17
D165
E4K00251
<G>DI SMD 1SS355 F TE-17
D166
E4K00251
<G>DI SMD 1SS355 F TE-17
D167
E4K00251
<G>DI SMD 1SS355 F TE-17
D168
E4K00261
<G>DI SMD DAN217 F T146
D183
E4K00251
<G>DI SMD 1SS355 F TE-17
8-23

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
D1F1
E4K00271
<G>DI SMD RB495DT146
D1F2
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F3
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F4
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H1
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H2
E4K00251
<G>DI SMD 1SS355 F TE-17
D241
E4K00441
<G>DI SMD RB160M-30TR
D311
E4K00261
<G>DI SMD DAN217 F T146
D312
E4K00261
<G>DI SMD DAN217 F T146
D313
E4K00261
<G>DI SMD DAN217 F T146
D314
E4K00261
<G>DI SMD DAN217 F T146
D315
E4K00261
<G>DI SMD DAN217 F T146
D316
E4K00261
<G>DI SMD DAN217 F T146
D317
E4K00261
<G>DI SMD DAN217 F T146
D318
E4K00261
<G>DI SMD DAN217 F T146
D320A
E4K00251
<G>DI SMD 1SS355 F TE-17
D320B
E4K00261
<G>DI SMD DAN217 F T146
D320G
E4K00261
<G>DI SMD DAN217 F T146
D320R
E4K00261
<G>DI SMD DAN217 F T146
D321
E4K00261
<G>DI SMD DAN217 F T146
D322
E4K00261
<G>DI SMD DAN217 F T146
D323
E4K00261
<G>DI SMD DAN217 F T146
D324
E4K00261
<G>DI SMD DAN217 F T146
D325
E4K00261
<G>DI SMD DAN217 F T146
D326
E4K00261
<G>DI SMD DAN217 F T146
D327
E4K00261
<G>DI SMD DAN217 F T146
D328
E4K00261
<G>DI SMD DAN217 F T146
D330A
E4K00251
<G>DI SMD 1SS355 F TE-17
D330B
E4K00261
<G>DI SMD DAN217 F T146
D330G
E4K00261
<G>DI SMD DAN217 F T146
D330R
E4K00261
<G>DI SMD DAN217 F T146
D341B
E4K00011
<G>DI SMD 1SS356TW11
D341G
E4K00011
<G>DI SMD 1SS356TW11
D341R
E4K00011
<G>DI SMD 1SS356TW11
D351B
E4K00011
<G>DI SMD 1SS356TW11
D351G
E4K00011
<G>DI SMD 1SS356TW11
D351R
E4K00011
<G>DI SMD 1SS356TW11
D820
E4K00261
<G>DI SMD DAN217 F T146
D821
E4K00271
<G>DI SMD RB495DT146
D831
E4K00271
<G>DI SMD RB495DT146
ZD181
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD183
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD311
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD312
E6D40362
<G>ZD SMD UDZS3.6BTE-17
ZD321
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
8-24

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
ZD322
E6D40362
<G>ZD SMD UDZS3.6BTE-17
ZD331
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
J8100541
<G>U INVERT L205GR
MAIN1
AM0GR1ML
<G>MAIN INSERT ASSY ROHS
POWER1
J8100551
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
H4011811
<G>L SMD BEAD BK1608LM252
B103
H4011811
<G>L SMD BEAD BK1608LM252
B151
H4011811
<G>L SMD BEAD BK1608LM252
B152
H4011811
<G>L SMD BEAD BK1608LM252
B153
H4011811
<G>L SMD BEAD BK1608LM252
B161
H4011811
<G>L SMD BEAD BK1608LM252
B162
H4011811
<G>L SMD BEAD BK1608LM252
B163
H4011811
<G>L SMD BEAD BK1608LM252
B164
H4011811
<G>L SMD BEAD BK1608LM252
B165
H4011811
<G>L SMD BEAD BK1608LM252
B166
H4011811
<G>L SMD BEAD BK1608LM252
B167
H4011811
<G>L SMD BEAD BK1608LM252
B168
H4011811
<G>L SMD BEAD BK1608LM252
B169
H4011811
<G>L SMD BEAD BK1608LM252
B1F1
H4019281
<G>L SMD BEAD FBMH3216HM5
B201
H4019281
<G>L SMD BEAD FBMH3216HM5
B211
H4019281
<G>L SMD BEAD FBMH3216HM5
B221
H4019281
<G>L SMD BEAD FBMH3216HM5
B231
H4019281
<G>L SMD BEAD FBMH3216HM5
B261
H4019281
<G>L SMD BEAD FBMH3216HM5
B291
H4011811
<G>L SMD BEAD BK1608LM252
B2A1
H4011811
<G>L SMD BEAD BK1608LM252
B361
H4020011
<G>L SMD BEAD BKP1608HS33
B362
H4020011
<G>L SMD BEAD BKP1608HS33
B381
H4020011
<G>L SMD BEAD BKP1608HS33
B382
H4020011
<G>L SMD BEAD BKP1608HS33
B3E1
H4020011
<G>L SMD BEAD BKP1608HS33
B3E2
H4020011
<G>L SMD BEAD BKP1608HS33
B3E3
H4020011
<G>L SMD BEAD BKP1608HS33
B401
H4011811
<G>L SMD BEAD BK1608LM252
B402
H4011811
<G>L SMD BEAD BK1608LM252
B431
H4011681
<G>L SMD BEAD BK1608HS601
B433
H4011681
<G>L SMD BEAD BK1608HS601
B435
H4011811
<G>L SMD BEAD BK1608LM252
B436
H4011811
<G>L SMD BEAD BK1608LM252
B441
H4011681
<G>L SMD BEAD BK1608HS601
8-25

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
B445
H4011811
<G>L SMD BEAD BK1608LM252
B446
H4011811
<G>L SMD BEAD BK1608LM252
B447
H4011811
<G>L SMD BEAD BK1608LM252
B448
H4011811
<G>L SMD BEAD BK1608LM252
B451
H4011681
<G>L SMD BEAD BK1608HS601
B452
H4011811
<G>L SMD BEAD BK1608LM252
B461
H4011681
<G>L SMD BEAD BK1608HS601
B471
H4011681
<G>L SMD BEAD BK1608HS601
B481
H4019281
<G>L SMD BEAD FBMH3216HM5
B487
H4011811
<G>L SMD BEAD BK1608LM252
B488
H4011811
<G>L SMD BEAD BK1608LM252
B489
H4011811
<G>L SMD BEAD BK1608LM252
B621
H4019281
<G>L SMD BEAD FBMH3216HM5
B631
H4019281
<G>L SMD BEAD FBMH3216HM5
B704
H4011811
<G>L SMD BEAD BK1608LM252
B853
H4020011
<G>L SMD BEAD BKP1608HS33
FL218
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL225
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL233
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL551
H1B00207
<G>L SMD NFE31PT222Z1E9L
L211
H1B00169
<G>L SMD SLF7030T-100M1R3
L221
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L231
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L241
H1B00169
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
R5010561
<G>CABLE VIDEO BLK DVID-D
CBL2
R5010551
<G>CABLE VIDEO BLK DVIA-D
CBL3
R7021011
<G>PW CORD USA 2M BLK I-S
CBL4
R5010581
<G>CABLE VIDEO BK DSUB-D
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
R3201971
<G>WIRE CC31P/8P 1516#30L
SWBD1
J8100611
<G>U FPC SW ASSY BLK LCD1
WIRE1
R3201941
<G>WIRE CC13P/8P5P 1007#2
WIRE2
R3201951
<G>WIRE CC9P 1007#26L100
X100
E82K0101
<G>OSC SMD CSTCR4M91G55-R
X401
E81K0201
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
KL0WB2WL
<G>SKD BACK ASSY LCD2090U
COVER1
1A701151
<G>COVER OUTER BK
FRONT1
1K108561
<G>BEZEL L205GR BK
SCR01
1D301051
<G>SC CBIMS3X10X3K
SCR02
1D000901
<G>SC #2CPISSX3X6X3K
SCR03
1D300831
<G>BM 3X5.7 BLACK-NI
8-26

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
SCR04
1D301031
<G>P4X6+SPW+WAS MC(NI)
SCR05
1D000831
<G>SC #2CPISSX3X6X16B
SCR06
1D301041
<G>SC CBIMS3X6X3G
SCR07
1D000121
<G>SCREW CUP 3X8X15BF
SCR08
1D300201
<G>SCR 4#-40TX4.8HLX4HLX5
STAND1
1A003321
<G>STAND UNIT BK
*** PRINTED & PACKING MATERIALS ***
CTN1
1C205671
<G>CARTON BOX L205GR WHA
CTN2
1C203011
<G>CARTON SHEET
EPS1
1C401991
<G>FILLER T L205GR
EPS2
1C402001
<G>FILLER B L205GR
LBL1
1E004861
<G>LABEL RATING L205GR BK
MANU1
1E504741
<G>MANUAL ASSY LCD2090UXI
MANU2
1E802481
<G>SHEET SETUP L205GR A
PE1
1C700651
<G>BAG PE 6LANG(270X370)
PE2
1C700741
<G>BAG POLYETHYLENE 170X9
PE3
1C700522
<G>PACKING BAG
*** RESISTORS ***
B281
F7110000
<G>R SMD METAL 1/4W 0 J 1
B282
F7110000
<G>R SMD METAL 1/4W 0 J 1
B290
F7110000
<G>R SMD METAL 1/4W 0 J 1
B2E1
F7010000
<G>R SMD METAL 1/10W 0 J
B320B
F7010000
<G>R SMD METAL 1/10W 0 J
B320G
F7010000
<G>R SMD METAL 1/10W 0 J
B320R
F7010000
<G>R SMD METAL 1/10W 0 J
B330B
F7010000
<G>R SMD METAL 1/10W 0 J
B330G
F7010000
<G>R SMD METAL 1/10W 0 J
B330R
F7010000
<G>R SMD METAL 1/10W 0 J
B360
F7010000
<G>R SMD METAL 1/10W 0 J
F281
B7015021
<G>R SMD FUSE MINISMDC150
MR103
F9221013
<G>R SMD NET 1/16W 100 J
MR104
F9221013
<G>R SMD NET 1/16W 100 J
MR105
F9221013
<G>R SMD NET 1/16W 100 J
MR121
F9221013
<G>R SMD NET 1/16W 100 J
MR122
F9221013
<G>R SMD NET 1/16W 100 J
MR151
F9221033
<G>R SMD NET 1/16W 10K J
MR152
F9221033
<G>R SMD NET 1/16W 10K J
MR401
F9223303
<G>R SMD NET 1/16W 33 J (
MR402
F9223303
<G>R SMD NET 1/16W 33 J (
MR403
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR404
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR405
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR406
F9220003
<G>R SMD NET 1/16W 0 J 8P
8-27

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
MR407
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR450H
F9223303
<G>R SMD NET 1/16W 33 J (
MR450L
F9223303
<G>R SMD NET 1/16W 33 J (
MR451H
F9223303
<G>R SMD NET 1/16W 33 J (
MR451L
F9223303
<G>R SMD NET 1/16W 33 J (
MR452H
F9223303
<G>R SMD NET 1/16W 33 J (
MR452L
F9223303
<G>R SMD NET 1/16W 33 J (
MR453H
F9223303
<G>R SMD NET 1/16W 33 J (
MR453L
F9223303
<G>R SMD NET 1/16W 33 J (
MR454
F9223303
<G>R SMD NET 1/16W 33 J (
MR455
F9223303
<G>R SMD NET 1/16W 33 J (
MR456
F9223303
<G>R SMD NET 1/16W 33 J (
R100
F7010105
<G>R SMD METAL 1/10W 1.0M
R102
F7010103
<G>R SMD METAL 1/10W 10K
R103
F7010103
<G>R SMD METAL 1/10W 10K
R104
F7010330
<G>R SMD METAL 1/10W 33 J
R105
F7010103
<G>R SMD METAL 1/10W 10K
R106
F7010330
<G>R SMD METAL 1/10W 33 J
R107
F7010330
<G>R SMD METAL 1/10W 33 J
R108
F7010330
<G>R SMD METAL 1/10W 33 J
R109
F7010330
<G>R SMD METAL 1/10W 33 J
R110
F7010330
<G>R SMD METAL 1/10W 33 J
R111
F7010330
<G>R SMD METAL 1/10W 33 J
R112
F7010330
<G>R SMD METAL 1/10W 33 J
R113
F7010330
<G>R SMD METAL 1/10W 33 J
R114
F7010330
<G>R SMD METAL 1/10W 33 J
R115
F7010223
<G>R SMD METAL 1/10W 22K
R116
F7010473
<G>R SMD METAL 1/10W 47K
R117
F7010473
<G>R SMD METAL 1/10W 47K
R121
F7010102
<G>R SMD METAL 1/10W 1.0K
R122
F7010101
<G>R SMD METAL 1/10W 100
R123
F7010101
<G>R SMD METAL 1/10W 100
R124
F7010101
<G>R SMD METAL 1/10W 100
R125
F7010101
<G>R SMD METAL 1/10W 100
R126
F7010330
<G>R SMD METAL 1/10W 33 J
R128
F7010330
<G>R SMD METAL 1/10W 33 J
R129
F7010330
<G>R SMD METAL 1/10W 33 J
R131
F7010330
<G>R SMD METAL 1/10W 33 J
R132
F7010330
<G>R SMD METAL 1/10W 33 J
R133
F7010330
<G>R SMD METAL 1/10W 33 J
R134
F7010330
<G>R SMD METAL 1/10W 33 J
R135
F7010330
<G>R SMD METAL 1/10W 33 J
R136
F7010330
<G>R SMD METAL 1/10W 33 J
R137
F7010330
<G>R SMD METAL 1/10W 33 J
R138
F7010330
<G>R SMD METAL 1/10W 33 J
8-28

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R140
F7010000
<G>R SMD METAL 1/10W 0 J
R141
F7010000
<G>R SMD METAL 1/10W 0 J
R142
F7010000
<G>R SMD METAL 1/10W 0 J
R143
F7010101
<G>R SMD METAL 1/10W 100
R144
F7010104
<G>R SMD METAL 1/10W 100K
R146
F7010104
<G>R SMD METAL 1/10W 100K
R148
F7010104
<G>R SMD METAL 1/10W 100K
R149
F7010000
<G>R SMD METAL 1/10W 0 J
R14A
F7010104
<G>R SMD METAL 1/10W 100K
R151
F8016800
<G>R SMD METAL 1/10W 680
R152
F8016800
<G>R SMD METAL 1/10W 680
R153
F7010182
<G>R SMD METAL 1/10W 1.8K
R154
F7010182
<G>R SMD METAL 1/10W 1.8K
R155
F7010682
<G>R SMD METAL 1/10W 6.8K
R156
F7010682
<G>R SMD METAL 1/10W 6.8K
R157
F7010473
<G>R SMD METAL 1/10W 47K
R158
F7010103
<G>R SMD METAL 1/10W 10K
R159
F7010101
<G>R SMD METAL 1/10W 100
R160
F7010101
<G>R SMD METAL 1/10W 100
R161
F7100102
<G>R SMD METAL 1/8W 1.0K
R162
F7100102
<G>R SMD METAL 1/8W 1.0K
R163
F7100102
<G>R SMD METAL 1/8W 1.0K
R164
F7100102
<G>R SMD METAL 1/8W 1.0K
R165
F7100102
<G>R SMD METAL 1/8W 1.0K
R166
F7100102
<G>R SMD METAL 1/8W 1.0K
R167
F7100102
<G>R SMD METAL 1/8W 1.0K
R168
F7100102
<G>R SMD METAL 1/8W 1.0K
R169
F7010334
<G>R SMD METAL 1/10W 330K
R171
F7010103
<G>R SMD METAL 1/10W 10K
R172
F7010103
<G>R SMD METAL 1/10W 10K
R184
F8013903
<G>R SMD METAL 1/10W 390K
R185
F8012203
<G>R SMD METAL 1/10W 220K
R186
F7010104
<G>R SMD METAL 1/10W 100K
R187
F8011300
<G>R SMD METAL 1/10W 130
R188
F7010182
<G>R SMD METAL 1/10W 1.8K
R189
F7010682
<G>R SMD METAL 1/10W 6.8K
R191
F7010103
<G>R SMD METAL 1/10W 10K
R193
F7010103
<G>R SMD METAL 1/10W 10K
R195
F7010103
<G>R SMD METAL 1/10W 10K
R1F1
F7010102
<G>R SMD METAL 1/10W 1.0K
R1F2
F7010103
<G>R SMD METAL 1/10W 10K
R1F3
F7010223
<G>R SMD METAL 1/10W 22K
R1F4
F7010103
<G>R SMD METAL 1/10W 10K
R1F5
F7010152
<G>R SMD METAL 1/10W 1.5K
R1F6
F7010103
<G>R SMD METAL 1/10W 10K
8-29

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R1F7
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F8
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F9
F7010560
<G>R SMD METAL 1/10W 56 J
R1H1
F7010824
<G>R SMD METAL 1/10W 820K
R1H2
F7010103
<G>R SMD METAL 1/10W 10K
R1H3
F7010104
<G>R SMD METAL 1/10W 100K
R1H4
F7010102
<G>R SMD METAL 1/10W 1.0K
R1H5
F8012202
<G>R SMD METAL 1/10W 22K
R1H6
F8011503
<G>R SMD METAL 1/10W 150K
R1H7
F7010104
<G>R SMD METAL 1/10W 100K
R1H8
F7010102
<G>R SMD METAL 1/10W 1.0K
R201
F7110000
<G>R SMD METAL 1/4W 0 J 1
R203M
F7010000
<G>R SMD METAL 1/10W 0 J
R203N
F7010000
<G>R SMD METAL 1/10W 0 J
R20UX
F7010000
<G>R SMD METAL 1/10W 0 J
R211
F7010000
<G>R SMD METAL 1/10W 0 J
R212
F8011503
<G>R SMD METAL 1/10W 150K
R213
F8011503
<G>R SMD METAL 1/10W 150K
R214
F8012403
<G>R SMD METAL 1/10W 240K
R215
F8011003
<G>R SMD METAL 1/10W 100K
R216
F8011003
<G>R SMD METAL 1/10W 100K
R217
F7010000
<G>R SMD METAL 1/10W 0 J
R221
F7010000
<G>R SMD METAL 1/10W 0 J
R222
F7010000
<G>R SMD METAL 1/10W 0 J
R223
F8015103
<G>R SMD METAL 1/10W 510K
R224
F8012403
<G>R SMD METAL 1/10W 240K
R225
F8011003
<G>R SMD METAL 1/10W 100K
R226
F8015602
<G>R SMD METAL 1/10W 56K
R231
F7010000
<G>R SMD METAL 1/10W 0 J
R232
F7010000
<G>R SMD METAL 1/10W 0 J
R233
F8014703
<G>R SMD METAL 1/10W 470K
R234
F8011503
<G>R SMD METAL 1/10W 150K
R235
F8011503
<G>R SMD METAL 1/10W 150K
R236
F8015602
<G>R SMD METAL 1/10W 56K
R241
F8013903
<G>R SMD METAL 1/10W 390K
R242
F8015102
<G>R SMD METAL 1/10W 51K
R243M
F7010000
<G>R SMD METAL 1/10W 0 J
R243N
F7010000
<G>R SMD METAL 1/10W 0 J
R245
F7010103
<G>R SMD METAL 1/10W 10K
R246
F8012202
<G>R SMD METAL 1/10W 22K
R247
F8011203
<G>R SMD METAL 1/10W 120K
R248
F8011002
<G>R SMD METAL 1/10W 10K
R249
F7010000
<G>R SMD METAL 1/10W 0 J
R251
F7010333
<G>R SMD METAL 1/10W 33K
R252
F7010104
<G>R SMD METAL 1/10W 100K
8-30

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R261
F7310681
<G>R SMD METAL 3/4W 680 J
R262
F7310681
<G>R SMD METAL 3/4W 680 J
R263
F7010102
<G>R SMD METAL 1/10W 1.0K
R264
F7010103
<G>R SMD METAL 1/10W 10K
R265
F8011003
<G>R SMD METAL 1/10W 100K
R266
F8013302
<G>R SMD METAL 1/10W 33K
R267
F7010000
<G>R SMD METAL 1/10W 0 J
R268
F7010000
<G>R SMD METAL 1/10W 0 J
R269
F7010333
<G>R SMD METAL 1/10W 33K
R270
F7010000
<G>R SMD METAL 1/10W 0 J
R271
F7010101
<G>R SMD METAL 1/10W 100
R272
F7010101
<G>R SMD METAL 1/10W 100
R273
F7010101
<G>R SMD METAL 1/10W 100
R274
F7010105
<G>R SMD METAL 1/10W 1.0M
R291
F7010103
<G>R SMD METAL 1/10W 10K
R2A1
F7010103
<G>R SMD METAL 1/10W 10K
R312
F7010101
<G>R SMD METAL 1/10W 100
R313
F7010101
<G>R SMD METAL 1/10W 100
R314
F7010222
<G>R SMD METAL 1/10W 2.2K
R315N
F7010100
<G>R SMD METAL 1/10W 10 J
R315P
F7010100
<G>R SMD METAL 1/10W 10 J
R316N
F7010100
<G>R SMD METAL 1/10W 10 J
R316P
F7010100
<G>R SMD METAL 1/10W 10 J
R317N
F7010100
<G>R SMD METAL 1/10W 10 J
R317P
F7010100
<G>R SMD METAL 1/10W 10 J
R318N
F7010100
<G>R SMD METAL 1/10W 10 J
R318P
F7010100
<G>R SMD METAL 1/10W 10 J
R320E
F7010104
<G>R SMD METAL 1/10W 100K
R320H
F7010330
<G>R SMD METAL 1/10W 33 J
R320V
F7010330
<G>R SMD METAL 1/10W 33 J
R322
F7010101
<G>R SMD METAL 1/10W 100
R323
F7010101
<G>R SMD METAL 1/10W 100
R324
F7010222
<G>R SMD METAL 1/10W 2.2K
R325N
F7010100
<G>R SMD METAL 1/10W 10 J
R325P
F7010100
<G>R SMD METAL 1/10W 10 J
R326N
F7010100
<G>R SMD METAL 1/10W 10 J
R326P
F7010100
<G>R SMD METAL 1/10W 10 J
R327N
F7010100
<G>R SMD METAL 1/10W 10 J
R327P
F7010100
<G>R SMD METAL 1/10W 10 J
R328N
F7010100
<G>R SMD METAL 1/10W 10 J
R328P
F7010100
<G>R SMD METAL 1/10W 10 J
R329H
F7010222
<G>R SMD METAL 1/10W 2.2K
R329V
F7010222
<G>R SMD METAL 1/10W 2.2K
R330E
F7010104
<G>R SMD METAL 1/10W 100K
R330H
F7010330
<G>R SMD METAL 1/10W 33 J
8-31

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R330V
F7010330
<G>R SMD METAL 1/10W 33 J
R332
F7010101
<G>R SMD METAL 1/10W 100
R333
F7010101
<G>R SMD METAL 1/10W 100
R339H
F7010222
<G>R SMD METAL 1/10W 2.2K
R339V
F7010222
<G>R SMD METAL 1/10W 2.2K
R341A
F7010000
<G>R SMD METAL 1/10W 0 J
R341B
F8517509
<G>R SMD METAL 1/3W 75 F
R341G
F8517509
<G>R SMD METAL 1/3W 75 F
R341R
F8517509
<G>R SMD METAL 1/3W 75 F
R342B
F7010103
<G>R SMD METAL 1/10W 10K
R342G
F7010103
<G>R SMD METAL 1/10W 10K
R342R
F7010103
<G>R SMD METAL 1/10W 10K
R343B
F7010153
<G>R SMD METAL 1/10W 15K
R343G
F7010153
<G>R SMD METAL 1/10W 15K
R343R
F7010153
<G>R SMD METAL 1/10W 15K
R344B
F7010101
<G>R SMD METAL 1/10W 100
R344G
F7010101
<G>R SMD METAL 1/10W 100
R344R
F7010101
<G>R SMD METAL 1/10W 100
R345B
F7010331
<G>R SMD METAL 1/10W 330
R345G
F7010331
<G>R SMD METAL 1/10W 330
R345R
F7010331
<G>R SMD METAL 1/10W 330
R346B
F7010510
<G>R SMD METAL 1/10W 51 J
R346G
F7010510
<G>R SMD METAL 1/10W 51 J
R346R
F7010510
<G>R SMD METAL 1/10W 51 J
R347B
F7010102
<G>R SMD METAL 1/10W 1.0K
R347G
F7010102
<G>R SMD METAL 1/10W 1.0K
R347R
F7010102
<G>R SMD METAL 1/10W 1.0K
R348B
F7010473
<G>R SMD METAL 1/10W 47K
R348G
F7010473
<G>R SMD METAL 1/10W 47K
R348R
F7010473
<G>R SMD METAL 1/10W 47K
R349B
F7010000
<G>R SMD METAL 1/10W 0 J
R349G
F7010000
<G>R SMD METAL 1/10W 0 J
R349R
F7010000
<G>R SMD METAL 1/10W 0 J
R34K
F7010473
<G>R SMD METAL 1/10W 47K
R34L
F7010101
<G>R SMD METAL 1/10W 100
R351A
F7010000
<G>R SMD METAL 1/10W 0 J
R351B
F8517509
<G>R SMD METAL 1/3W 75 F
R351G
F8517509
<G>R SMD METAL 1/3W 75 F
R351R
F8517509
<G>R SMD METAL 1/3W 75 F
R352B
F7010103
<G>R SMD METAL 1/10W 10K
R352G
F7010103
<G>R SMD METAL 1/10W 10K
R352R
F7010103
<G>R SMD METAL 1/10W 10K
R353B
F7010153
<G>R SMD METAL 1/10W 15K
R353G
F7010153
<G>R SMD METAL 1/10W 15K
R353R
F7010153
<G>R SMD METAL 1/10W 15K
8-32

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R354B
F7010101
<G>R SMD METAL 1/10W 100
R354G
F7010101
<G>R SMD METAL 1/10W 100
R354R
F7010101
<G>R SMD METAL 1/10W 100
R355B
F7010331
<G>R SMD METAL 1/10W 330
R355G
F7010331
<G>R SMD METAL 1/10W 330
R355R
F7010331
<G>R SMD METAL 1/10W 330
R356B
F7010510
<G>R SMD METAL 1/10W 51 J
R356G
F7010510
<G>R SMD METAL 1/10W 51 J
R356R
F7010510
<G>R SMD METAL 1/10W 51 J
R357B
F7010102
<G>R SMD METAL 1/10W 1.0K
R357G
F7010102
<G>R SMD METAL 1/10W 1.0K
R357R
F7010102
<G>R SMD METAL 1/10W 1.0K
R358B
F7010473
<G>R SMD METAL 1/10W 47K
R358G
F7010473
<G>R SMD METAL 1/10W 47K
R358R
F7010473
<G>R SMD METAL 1/10W 47K
R359B
F7010000
<G>R SMD METAL 1/10W 0 J
R359G
F7010000
<G>R SMD METAL 1/10W 0 J
R359R
F7010000
<G>R SMD METAL 1/10W 0 J
R361
F7010104
<G>R SMD METAL 1/10W 100K
R362
F7010104
<G>R SMD METAL 1/10W 100K
R363
F7010102
<G>R SMD METAL 1/10W 1.0K
R364
F7010561
<G>R SMD METAL 1/10W 560
R365
F7010221
<G>R SMD METAL 1/10W 220
R366
F7010103
<G>R SMD METAL 1/10W 10K
R367
F7010223
<G>R SMD METAL 1/10W 22K
R368
F8011302
<G>R SMD METAL 1/10W 13K
R369
F7010101
<G>R SMD METAL 1/10W 100
R371
F7010332
<G>R SMD METAL 1/10W 3.3K
R372
F7010472
<G>R SMD METAL 1/10W 4.7K
R373
F7010471
<G>R SMD METAL 1/10W 470
R374
F7010330
<G>R SMD METAL 1/10W 33 J
R375
F8015601
<G>R SMD METAL 1/10W 5.6K
R376
F8011500
<G>R SMD METAL 1/10W 150
R377
F8013300
<G>R SMD METAL 1/10W 330
R378
F8012201
<G>R SMD METAL 1/10W 2.2K
R381
F7010104
<G>R SMD METAL 1/10W 100K
R382
F7010104
<G>R SMD METAL 1/10W 100K
R383
F7010102
<G>R SMD METAL 1/10W 1.0K
R384
F7010561
<G>R SMD METAL 1/10W 560
R385
F7010221
<G>R SMD METAL 1/10W 220
R386
F7010103
<G>R SMD METAL 1/10W 10K
R387
F7010223
<G>R SMD METAL 1/10W 22K
R389
F7010101
<G>R SMD METAL 1/10W 100
R391
F7010332
<G>R SMD METAL 1/10W 3.3K
R392
F7010472
<G>R SMD METAL 1/10W 4.7K
8-33

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R393
F7010471
<G>R SMD METAL 1/10W 470
R394
F7010330
<G>R SMD METAL 1/10W 33 J
R395
F8012701
<G>R SMD METAL 1/10W 2.7K
R396
F8015600
<G>R SMD METAL 1/10W 560
R397
F8011500
<G>R SMD METAL 1/10W 150
R398
F8011101
<G>R SMD METAL 1/10W 1.1K
R3E1
F7010471
<G>R SMD METAL 1/10W 470
R3E2
F7010330
<G>R SMD METAL 1/10W 33 J
R3E3
F7010330
<G>R SMD METAL 1/10W 33 J
R3E4
F7010330
<G>R SMD METAL 1/10W 33 J
R3E5
F7010330
<G>R SMD METAL 1/10W 33 J
R3E6
F8012201
<G>R SMD METAL 1/10W 2.2K
R3E7
F8016801
<G>R SMD METAL 1/10W 6.8K
R3E8
F8012202
<G>R SMD METAL 1/10W 22K
R401
F8013900
<G>R SMD METAL 1/10W 390
R411A
F7010471
<G>R SMD METAL 1/10W 470
R411B
F7010270
<G>R SMD METAL 1/10W 27 J
R411G
F7010270
<G>R SMD METAL 1/10W 27 J
R411H
F7010330
<G>R SMD METAL 1/10W 33 J
R411R
F7010270
<G>R SMD METAL 1/10W 27 J
R411V
F7010330
<G>R SMD METAL 1/10W 33 J
R412B
F7010220
<G>R SMD METAL 1/10W 22 J
R412G
F7010220
<G>R SMD METAL 1/10W 22 J
R412R
F7010220
<G>R SMD METAL 1/10W 22 J
R413A
F7010471
<G>R SMD METAL 1/10W 470
R413B
F7010270
<G>R SMD METAL 1/10W 27 J
R413G
F7010270
<G>R SMD METAL 1/10W 27 J
R413H
F7010330
<G>R SMD METAL 1/10W 33 J
R413R
F7010270
<G>R SMD METAL 1/10W 27 J
R413V
F7010330
<G>R SMD METAL 1/10W 33 J
R414B
F7010220
<G>R SMD METAL 1/10W 22 J
R414G
F7010220
<G>R SMD METAL 1/10W 22 J
R414R
F7010220
<G>R SMD METAL 1/10W 22 J
R415
F7010152
<G>R SMD METAL 1/10W 1.5K
R416
F7010152
<G>R SMD METAL 1/10W 1.5K
R417
F7010511
<G>R SMD METAL 1/10W 510
R418
F7010511
<G>R SMD METAL 1/10W 510
R421
F7010330
<G>R SMD METAL 1/10W 33 J
R422
F7010330
<G>R SMD METAL 1/10W 33 J
R423
F7010330
<G>R SMD METAL 1/10W 33 J
R424
F7010473
<G>R SMD METAL 1/10W 47K
R425
F7010473
<G>R SMD METAL 1/10W 47K
R426
F7010473
<G>R SMD METAL 1/10W 47K
R427
F7010000
<G>R SMD METAL 1/10W 0 J
R428
F7010103
<G>R SMD METAL 1/10W 10K
8-34

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R429
F7010103
<G>R SMD METAL 1/10W 10K
R431
F7010103
<G>R SMD METAL 1/10W 10K
R432
F7010103
<G>R SMD METAL 1/10W 10K
R433
F7010103
<G>R SMD METAL 1/10W 10K
R434
F7010330
<G>R SMD METAL 1/10W 33 J
R435
F7010330
<G>R SMD METAL 1/10W 33 J
R436
F7010330
<G>R SMD METAL 1/10W 33 J
R441N
F7010180
<G>R SMD METAL 1/10W 18 J
R441P
F7010180
<G>R SMD METAL 1/10W 18 J
R442
F7010330
<G>R SMD METAL 1/10W 33 J
R443
F7010330
<G>R SMD METAL 1/10W 33 J
R444
F7010330
<G>R SMD METAL 1/10W 33 J
R445
F7010330
<G>R SMD METAL 1/10W 33 J
R446
F7010330
<G>R SMD METAL 1/10W 33 J
R447
F7010330
<G>R SMD METAL 1/10W 33 J
R448
F7010330
<G>R SMD METAL 1/10W 33 J
R449
F7010330
<G>R SMD METAL 1/10W 33 J
R450
F7010330
<G>R SMD METAL 1/10W 33 J
R451
F7010330
<G>R SMD METAL 1/10W 33 J
R452
F7010330
<G>R SMD METAL 1/10W 33 J
R453
F7010330
<G>R SMD METAL 1/10W 33 J
R454
F7010330
<G>R SMD METAL 1/10W 33 J
R491
F8011001
<G>R SMD METAL 1/10W 1.0K
R492
F8011001
<G>R SMD METAL 1/10W 1.0K
R551
F7010562
<G>R SMD METAL 1/10W 5.6K
R601
F7010151
<G>R SMD METAL 1/10W 150
R602
F7010330
<G>R SMD METAL 1/10W 33 J
R603
F7010330
<G>R SMD METAL 1/10W 33 J
R604
F7010330
<G>R SMD METAL 1/10W 33 J
R605
F7010330
<G>R SMD METAL 1/10W 33 J
R611
F8011001
<G>R SMD METAL 1/10W 1.0K
R612
F8011001
<G>R SMD METAL 1/10W 1.0K
R701
F7010272
<G>R SMD METAL 1/10W 2.7K
R702
F7010272
<G>R SMD METAL 1/10W 2.7K
R703
F7010470
<G>R SMD METAL 1/10W 47 J
R704
F7010470
<G>R SMD METAL 1/10W 47 J
R705
F7010470
<G>R SMD METAL 1/10W 47 J
R706
B3Y00011
<G>R SMD METAL 1W 33 J 25
R707
F7010330
<G>R SMD METAL 1/10W 33 J
R708
F7010103
<G>R SMD METAL 1/10W 10K
R709
F7010103
<G>R SMD METAL 1/10W 10K
R710
F7010330
<G>R SMD METAL 1/10W 33 J
R711
F7010103
<G>R SMD METAL 1/10W 10K
R810
F7010103
<G>R SMD METAL 1/10W 10K
R811
B3Y00011
<G>R SMD METAL 1W 33 J 25
8-35

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
R812
F8015100
<G>R SMD METAL 1/10W 510
R821
B3Y00011
<G>R SMD METAL 1W 33 J 25
R822
F8015100
<G>R SMD METAL 1/10W 510
R823
F7010101
<G>R SMD METAL 1/10W 100
R824
F7010272
<G>R SMD METAL 1/10W 2.7K
R825
F7010473
<G>R SMD METAL 1/10W 47K
R826
F7010103
<G>R SMD METAL 1/10W 10K
R830
F7010103
<G>R SMD METAL 1/10W 10K
R831
B3Y00011
<G>R SMD METAL 1W 33 J 25
R851
F7010473
<G>R SMD METAL 1/10W 47K
R852
F7010273
<G>R SMD METAL 1/10W 27K
R853
F7010473
<G>R SMD METAL 1/10W 47K
R854
F7010473
<G>R SMD METAL 1/10W 47K
R855
F7010273
<G>R SMD METAL 1/10W 27K
R856
F7010000
<G>R SMD METAL 1/10W 0 J
R857
F7010000
<G>R SMD METAL 1/10W 0 J
R858
F7010562
<G>R SMD METAL 1/10W 5.6K
R859
F7010562
<G>R SMD METAL 1/10W 5.6K
R861
F7010473
<G>R SMD METAL 1/10W 47K
R862
F7010273
<G>R SMD METAL 1/10W 27K
R863
F7010473
<G>R SMD METAL 1/10W 47K
R864
F7010473
<G>R SMD METAL 1/10W 47K
R865
F7010473
<G>R SMD METAL 1/10W 47K
R866
F7010273
<G>R SMD METAL 1/10W 27K
R867
F7010473
<G>R SMD METAL 1/10W 47K
R868
F7010473
<G>R SMD METAL 1/10W 47K
R871
F7010000
<G>R SMD METAL 1/10W 0 J
R872
F8013302
<G>R SMD METAL 1/10W 33K
R873
F8013302
<G>R SMD METAL 1/10W 33K
R874
F8013302
<G>R SMD METAL 1/10W 33K
R875
F7010103
<G>R SMD METAL 1/10W 10K
R876
F7010000
<G>R SMD METAL 1/10W 0 J
R877
F7010473
<G>R SMD METAL 1/10W 47K
R878
F7010473
<G>R SMD METAL 1/10W 47K
R879
F7010562
<G>R SMD METAL 1/10W 5.6K
R881
F7010273
<G>R SMD METAL 1/10W 27K
R882
F7010273
<G>R SMD METAL 1/10W 27K
R883
F7010273
<G>R SMD METAL 1/10W 27K
R891
F7010473
<G>R SMD METAL 1/10W 47K
R892
F7010473
<G>R SMD METAL 1/10W 47K
R893
F7010473
<G>R SMD METAL 1/10W 47K
R894
F7010473
<G>R SMD METAL 1/10W 47K
R895
F7010473
<G>R SMD METAL 1/10W 47K
R896
F7010473
<G>R SMD METAL 1/10W 47K
8-36

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
*** CAPACITORS ***
C101
M741042K
<G>C SMD B 0.1U 16V K 060
C103
M741042K
<G>C SMD B 0.1U 16V K 060
C104
M741042K
<G>C SMD B 0.1U 16V K 060
C105
M741042K
<G>C SMD B 0.1U 16V K 060
C106
M704750S
<G>C SMD X5R 4.7U 6.3V K
C109
M741042K
<G>C SMD B 0.1U 16V K 060
C112
M701060M
<G>C SMD B 10U 6.3V M 080
C113
M741042K
<G>C SMD B 0.1U 16V K 060
C114
M741042K
<G>C SMD B 0.1U 16V K 060
C115
M741042K
<G>C SMD B 0.1U 16V K 060
C144
M741042K
<G>C SMD B 0.1U 16V K 060
C146
M741042K
<G>C SMD B 0.1U 16V K 060
C148
M741042K
<G>C SMD B 0.1U 16V K 060
C161
M741042K
<G>C SMD B 0.1U 16V K 060
C162
M741042K
<G>C SMD B 0.1U 16V K 060
C163
M741042K
<G>C SMD B 0.1U 16V K 060
C164
M741042K
<G>C SMD B 0.1U 16V K 060
C165
M741042K
<G>C SMD B 0.1U 16V K 060
C166
M741042K
<G>C SMD B 0.1U 16V K 060
C167
M741042K
<G>C SMD B 0.1U 16V K 060
C168
M741042K
<G>C SMD B 0.1U 16V K 060
C171
M741042K
<G>C SMD B 0.1U 16V K 060
C172
M741042K
<G>C SMD B 0.1U 16V K 060
C184
M7410353
<G>C SMD X7R 0.01U 50V K
C186
M741042K
<G>C SMD B 0.1U 16V K 060
C1F0
M701060M
<G>C SMD B 10U 6.3V M 080
C1F1
M701060M
<G>C SMD B 10U 6.3V M 080
C1F2
M704750S
<G>C SMD X5R 4.7U 6.3V K
C1F3
M741051M
<G>CSMDB1U10VM0603
C1F4
M7439157
<G>C SMD CH 390P 50V J 06
C1F5
M741042K
<G>C SMD B 0.1U 16V K 060
C1F6
M741042K
<G>C SMD B 0.1U 16V K 060
C1F7
M7410353
<G>C SMD X7R 0.01U 50V K
C211
M701060M
<G>C SMD B 10U 6.3V M 080
C212
M701060M
<G>C SMD B 10U 6.3V M 080
C213
M701060M
<G>C SMD B 10U 6.3V M 080
C214
M7418057
<G>C SMD CH 18P 50V J 060
C216
M741042K
<G>C SMD B 0.1U 16V K 060
C221
M701060M
<G>C SMD B 10U 6.3V M 080
C222
M701060M
<G>C SMD B 10U 6.3V M 080
C223
M701060M
<G>C SMD B 10U 6.3V M 080
C224
M7418057
<G>C SMD CH 18P 50V J 060
C226
M741042K
<G>C SMD B 0.1U 16V K 060
C231
M701060M
<G>C SMD B 10U 6.3V M 080
8-37

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C232
M701060M
<G>C SMD B 10U 6.3V M 080
C233
M701060M
<G>C SMD B 10U 6.3V M 080
C234
M7418057
<G>C SMD CH 18P 50V J 060
C236
M741042K
<G>C SMD B 0.1U 16V K 060
C241
M7010535
<G>C SMD X7R 1.0U 25V M 0
C242
M7210635
<G>C SMD X7R 10U 25V M 12
C243
M7210635
<G>C SMD X7R 10U 25V M 12
C244
M7410157
<G>C SMD CH 100P 50V J 06
C245
M7410353
<G>C SMD X7R 0.01U 50V K
C261
M7410439
<G>C SMD F 0.1U 25V Z 060
C263
M7410439
<G>C SMD F 0.1U 25V Z 060
C264
M741042K
<G>C SMD B 0.1U 16V K 060
C265
M741042K
<G>C SMD B 0.1U 16V K 060
C266
M741042K
<G>C SMD B 0.1U 16V K 060
C271
M7410157
<G>C SMD CH 100P 50V J 06
C272
M7410157
<G>C SMD CH 100P 50V J 06
C273
M7410157
<G>C SMD CH 100P 50V J 06
C281
M7410157
<G>C SMD CH 100P 50V J 06
C282
M7410157
<G>C SMD CH 100P 50V J 06
C292
M701060M
<G>C SMD B 10U 6.3V M 080
C293
M701060M
<G>C SMD B 10U 6.3V M 080
C294
M741042K
<G>C SMD B 0.1U 16V K 060
C295
M741042K
<G>C SMD B 0.1U 16V K 060
C296
M701060M
<G>C SMD B 10U 6.3V M 080
C2A2
M701060M
<G>C SMD B 10U 6.3V M 080
C2A3
M701060M
<G>C SMD B 10U 6.3V M 080
C2A4
M741042K
<G>C SMD B 0.1U 16V K 060
C2A5
M741042K
<G>C SMD B 0.1U 16V K 060
C2A6
M701060M
<G>C SMD B 10U 6.3V M 080
C311
M741042K
<G>C SMD B 0.1U 16V K 060
C312
M741042K
<G>C SMD B 0.1U 16V K 060
C320A
M741042K
<G>C SMD B 0.1U 16V K 060
C320E
M741042K
<G>C SMD B 0.1U 16V K 060
C320V
M741025K
<G>C SMD B 1000P 50V K
C321
M741042K
<G>C SMD B 0.1U 16V K 060
C322
M741042K
<G>C SMD B 0.1U 16V K 060
C330A
M741042K
<G>C SMD B 0.1U 16V K 060
C330E
M741042K
<G>C SMD B 0.1U 16V K 060
C330V
M741025K
<G>C SMD B 1000P 50V K
C340
M701060M
<G>C SMD B 10U 6.3V M 080
C341A
M701060M
<G>C SMD B 10U 6.3V M 080
C341B
M701060M
<G>C SMD B 10U 6.3V M 080
C341G
M701060M
<G>C SMD B 10U 6.3V M 080
C341R
M701060M
<G>C SMD B 10U 6.3V M 080
C342B
M741042K
<G>C SMD B 0.1U 16V K 060
8-38

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C342G
M741042K
<G>C SMD B 0.1U 16V K 060
C342R
M741042K
<G>C SMD B 0.1U 16V K 060
C343B
M741042K
<G>C SMD B 0.1U 16V K 060
C343G
M741042K
<G>C SMD B 0.1U 16V K 060
C343R
M741042K
<G>C SMD B 0.1U 16V K 060
C344B
M7422052
<G>C SMD COG 22P 50V J 06
C344G
M7422052
<G>C SMD COG 22P 50V J 06
C344R
M7422052
<G>C SMD COG 22P 50V J 06
C34K
M741042K
<G>C SMD B 0.1U 16V K 060
C350
M701060M
<G>C SMD B 10U 6.3V M 080
C351A
M701060M
<G>C SMD B 10U 6.3V M 080
C351B
M701060M
<G>C SMD B 10U 6.3V M 080
C351G
M701060M
<G>C SMD B 10U 6.3V M 080
C351R
M701060M
<G>C SMD B 10U 6.3V M 080
C352B
M741042K
<G>C SMD B 0.1U 16V K 060
C352G
M741042K
<G>C SMD B 0.1U 16V K 060
C352R
M741042K
<G>C SMD B 0.1U 16V K 060
C353B
M741042K
<G>C SMD B 0.1U 16V K 060
C353G
M741042K
<G>C SMD B 0.1U 16V K 060
C353R
M741042K
<G>C SMD B 0.1U 16V K 060
C354B
M7422052
<G>C SMD COG 22P 50V J 06
C354G
M7422052
<G>C SMD COG 22P 50V J 06
C354R
M7422052
<G>C SMD COG 22P 50V J 06
C361
M741042K
<G>C SMD B 0.1U 16V K 060
C362
M701060M
<G>C SMD B 10U 6.3V M 080
C363
M741042K
<G>C SMD B 0.1U 16V K 060
C364
M744725K
<G>C SMD B 4700P 50V K 06
C365
M744725K
<G>C SMD B 4700P 50V K 06
C366
M741042K
<G>C SMD B 0.1U 16V K 060
C381
M741042K
<G>C SMD B 0.1U 16V K 060
C382
M701060M
<G>C SMD B 10U 6.3V M 080
C383
M741042K
<G>C SMD B 0.1U 16V K 060
C384
M744725K
<G>C SMD B 4700P 50V K 06
C386
M741042K
<G>C SMD B 0.1U 16V K 060
C395
M744725K
<G>C SMD B 4700P 50V K 06
C3E1
M741042K
<G>C SMD B 0.1U 16V K 060
C3E2
M741042K
<G>C SMD B 0.1U 16V K 060
C3E3
M741042K
<G>C SMD B 0.1U 16V K 060
C3E4
M701060M
<G>C SMD B 10U 6.3V M 080
C401
M7415057
<G>C SMD CH 15P 50V J 060
C402
M7415057
<G>C SMD CH 15P 50V J 060
C403
M741042K
<G>C SMD B 0.1U 16V K 060
C407
M741042K
<G>C SMD B 0.1U 16V K 060
C408
M741042K
<G>C SMD B 0.1U 16V K 060
C409
M741042K
<G>C SMD B 0.1U 16V K 060
8-39

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C410
M741042K
<G>C SMD B 0.1U 16V K 060
C411A
M741025K
<G>C SMD B 1000P 50V K
C411B
M7447323
<G>C SMD X7R 0.047U 16V K
C411G
M7447323
<G>C SMD X7R 0.047U 16V K
C411R
M7447323
<G>C SMD X7R 0.047U 16V K
C412B
M7447323
<G>C SMD X7R 0.047U 16V K
C412G
M7447323
<G>C SMD X7R 0.047U 16V K
C412R
M7447323
<G>C SMD X7R 0.047U 16V K
C413A
M741025K
<G>C SMD B 1000P 50V K
C413B
M7447323
<G>C SMD X7R 0.047U 16V K
C413G
M7447323
<G>C SMD X7R 0.047U 16V K
C413R
M7447323
<G>C SMD X7R 0.047U 16V K
C414B
M7447323
<G>C SMD X7R 0.047U 16V K
C414G
M7447323
<G>C SMD X7R 0.047U 16V K
C414R
M7447323
<G>C SMD X7R 0.047U 16V K
C415
M7433052
<G>C SMD C0G 33P 50V J 06
C416
M7433052
<G>C SMD C0G 33P 50V J 06
C417
M7447052
<G>C SMD C0G 47P 50V J 06
C418
M7447052
<G>C SMD C0G 47P 50V J 06
C421
M741042K
<G>C SMD B 0.1U 16V K 060
C431
M741042K
<G>C SMD B 0.1U 16V K 060
C433
M741042K
<G>C SMD B 0.1U 16V K 060
C435
M741042K
<G>C SMD B 0.1U 16V K 060
C436
M741042K
<G>C SMD B 0.1U 16V K 060
C441
M741042K
<G>C SMD B 0.1U 16V K 060
C442
M741042K
<G>C SMD B 0.1U 16V K 060
C445
M741042K
<G>C SMD B 0.1U 16V K 060
C446
M741042K
<G>C SMD B 0.1U 16V K 060
C447
M741042K
<G>C SMD B 0.1U 16V K 060
C448
M741042K
<G>C SMD B 0.1U 16V K 060
C451
M741042K
<G>C SMD B 0.1U 16V K 060
C452
M741042K
<G>C SMD B 0.1U 16V K 060
C461
M741042K
<G>C SMD B 0.1U 16V K 060
C462
M741042K
<G>C SMD B 0.1U 16V K 060
C463
M741042K
<G>C SMD B 0.1U 16V K 060
C464
M741042K
<G>C SMD B 0.1U 16V K 060
C471
M741042K
<G>C SMD B 0.1U 16V K 060
C472
M741042K
<G>C SMD B 0.1U 16V K 060
C473
M701060M
<G>C SMD B 10U 6.3V M 080
C481
M701060M
<G>C SMD B 10U 6.3V M 080
C482
M741042K
<G>C SMD B 0.1U 16V K 060
C483
M741042K
<G>C SMD B 0.1U 16V K 060
C484
M741042K
<G>C SMD B 0.1U 16V K 060
C487
M741042K
<G>C SMD B 0.1U 16V K 060
C488
M741042K
<G>C SMD B 0.1U 16V K 060
8-40

SYMBOL
For U.S .
(NPG Part Number)
DESCRIPTION
C489
M741042K
<G>C SMD B 0.1U 16V K 060
C491
M741042K
<G>C SMD B 0.1U 16V K 060
C492
M741042K
<G>C SMD B 0.1U 16V K 060
C611
M741042K
<G>C SMD B 0.1U 16V K 060
C612
M741042K
<G>C SMD B 0.1U 16V K 060
C621
M701060M
<G>C SMD B 10U 6.3V M 080
C622
M741042K
<G>C SMD B 0.1U 16V K 060
C623
M741042K
<G>C SMD B 0.1U 16V K 060
C624
M741042K
<G>C SMD B 0.1U 16V K 060
C625
M741042K
<G>C SMD B 0.1U 16V K 060
C631
M701060M
<G>C SMD B 10U 6.3V M 080
C632
M741042K
<G>C SMD B 0.1U 16V K 060
C633
M741042K
<G>C SMD B 0.1U 16V K 060
C634
M741042K
<G>C SMD B 0.1U 16V K 060
C635
M741042K
<G>C SMD B 0.1U 16V K 060
C636
M741042K
<G>C SMD B 0.1U 16V K 060
C637
M741042K
<G>C SMD B 0.1U 16V K 060
C638
M741042K
<G>C SMD B 0.1U 16V K 060
C639
M741042K
<G>C SMD B 0.1U 16V K 060
C701
G2Y00780
<G>C ELE85 1F 5.5V N A
C702
M741042K
<G>C SMD B 0.1U 16V K 060
C703
M741042K
<G>C SMD B 0.1U 16V K 060
C704
M741042K
<G>C SMD B 0.1U 16V K 060
C705
M741051M
<G>CSMDB1U10VM0603
C810
M741042K
<G>C SMD B 0.1U 16V K 060
C820
M741042K
<G>C SMD B 0.1U 16V K 060
C851
M741042K
<G>C SMD B 0.1U 16V K 060
C852
M741042K
<G>C SMD B 0.1U 16V K 060
C853
M741042K
<G>C SMD B 0.1U 16V K 060
C854
M741042K
<G>C SMD B 0.1U 16V K 060
8-41

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi(B)
(For Europe)
SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
*** ICS ***
IC100
E1A13091
<G>IC SMD UPD70F3261YGC-8
IC171
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC172
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC183
E1A13171
<G>IC SMD XC6108N33AMR RE
IC1H1
E1A13171
<G>IC SMD XC6108N33AMR RE
IC211
E1A13081
<G>IC SMD XC9223B081AR RE
IC221
E1A13081
<G>IC SMD XC9223B081AR RE
IC231
E1A13081
<G>IC SMD XC9223B081AR RE
IC241
E1A13121
<G>IC SMD LT1961EMS8E#TRP
IC291
E1A10951
<G>IC SMD NJM2870F18 REGU
IC2A1
E1A10141
<G>IC SMD NJM2870F33 REGU
IC361
E1A10131
<G>IC SMD NJM319V LINEAR
IC381
E1A10131
<G>IC SMD NJM319V LINEAR
IC3E1
E1A11071
<G>IC SMD TA76431F
IC3E2
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC3E3
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC401
E1A13151
<G>IC SMD NDS0001B-LF CAV
IC601
E1A13101
<G>IC SMD K4D263238G-VC36
IC701
E1A12621
<G>IC SMD RTC8564JE
IC702
E1A11771
<G>IC SMD TCN75-3 .3MUA713
IC704
E1A13181
<G>IC SMD ADXL322JCP-REEL
IC851
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC852
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC853
E1A10821
<G>IC SMD X9116WM8Z-2 .7T1
IC854
E1A13111
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
E2A00281
<G>TR SMD 2SA1037AK F T14
Q152
E2A00281
<G>TR SMD 2SA1037AK F T14
Q153
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F1
E3K00051
<G>FET SMD CPH6311-TL -E
Q1F2
E2A00201
<G>TR SMD DTA144WKAT146 P
Q1F3
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F4
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F5
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F6
E2A00251
<G>TR SMD 2SC2412K F T146
Q1F7
E2A00061
<G>TR SMD DTC144EKAT146 N
Q251
E3K00051
<G>FET SMD CPH6311-TL -E
Q252
E2A00061
<G>TR SMD DTC144EKAT146 N
8-42

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
Q261
E3K00011
<G>FET SMD 2SK3018 T106
Q262
E2A00061
<G>TR SMD DTC144EKAT146 N
Q263
E3K00051
<G>FET SMD CPH6311-TL -E
Q264
E2A00061
<G>TR SMD DTC144EKAT146 N
Q341B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q342B
E2A00071
<G>TR SMD DTA144EKAT146
Q342G
E2A00071
<G>TR SMD DTA144EKAT146
Q342R
E2A00071
<G>TR SMD DTA144EKAT146
Q34K
E3K00051
<G>FET SMD CPH6311-TL -E
Q34L
E2A00061
<G>TR SMD DTC144EKAT146 N
Q34M
E2A00061
<G>TR SMD DTC144EKAT146 N
Q351B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q352B
E2A00071
<G>TR SMD DTA144EKAT146
Q352G
E2A00071
<G>TR SMD DTA144EKAT146
Q352R
E2A00071
<G>TR SMD DTA144EKAT146
Q361
E3K00181
<G>FET SMD 2SK360-E
Q362
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q381
E3K00181
<G>FET SMD 2SK360-E
Q382
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q3E1
E2A00061
<G>TR SMD DTC144EKAT146 N
Q701
E3K00011
<G>FET SMD 2SK3018 T106
Q702
E3K00011
<G>FET SMD 2SK3018 T106
Q821
E2A00281
<G>TR SMD 2SA1037AK F T14
Q851
E3K00011
<G>FET SMD 2SK3018 T106
Q852
E3K00011
<G>FET SMD 2SK3018 T106
Q853
E2A00061
<G>TR SMD DTC144EKAT146 N
Q854
E3K00011
<G>FET SMD 2SK3018 T106
Q855
E2A00251
<G>TR SMD 2SC2412K F T146
Q856
E2A00061
<G>TR SMD DTC144EKAT146 N
Q857
E2A00061
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
E4K00251
<G>DI SMD 1SS355 F TE-17
D162
E4K00251
<G>DI SMD 1SS355 F TE-17
D163
E4K00251
<G>DI SMD 1SS355 F TE-17
D164
E4K00251
<G>DI SMD 1SS355 F TE-17
D165
E4K00251
<G>DI SMD 1SS355 F TE-17
D166
E4K00251
<G>DI SMD 1SS355 F TE-17
D167
E4K00251
<G>DI SMD 1SS355 F TE-17
D168
E4K00261
<G>DI SMD DAN217 F T146
D183
E4K00251
<G>DI SMD 1SS355 F TE-17
8-43

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
D1F1
E4K00271
<G>DI SMD RB495DT146
D1F2
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F3
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F4
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H1
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H2
E4K00251
<G>DI SMD 1SS355 F TE-17
D241
E4K00441
<G>DI SMD RB160M-30TR
D290
E4K00441
<G>DI SMD RB160M-30TR
D311
E4K00261
<G>DI SMD DAN217 F T146
D312
E4K00261
<G>DI SMD DAN217 F T146
D313
E4K00261
<G>DI SMD DAN217 F T146
D314
E4K00261
<G>DI SMD DAN217 F T146
D315
E4K00261
<G>DI SMD DAN217 F T146
D316
E4K00261
<G>DI SMD DAN217 F T146
D317
E4K00261
<G>DI SMD DAN217 F T146
D318
E4K00261
<G>DI SMD DAN217 F T146
D320A
E4K00251
<G>DI SMD 1SS355 F TE-17
D320B
E4K00261
<G>DI SMD DAN217 F T146
D320G
E4K00261
<G>DI SMD DAN217 F T146
D320R
E4K00261
<G>DI SMD DAN217 F T146
D321
E4K00261
<G>DI SMD DAN217 F T146
D322
E4K00261
<G>DI SMD DAN217 F T146
D323
E4K00261
<G>DI SMD DAN217 F T146
D324
E4K00261
<G>DI SMD DAN217 F T146
D325
E4K00261
<G>DI SMD DAN217 F T146
D326
E4K00261
<G>DI SMD DAN217 F T146
D327
E4K00261
<G>DI SMD DAN217 F T146
D328
E4K00261
<G>DI SMD DAN217 F T146
D330A
E4K00251
<G>DI SMD 1SS355 F TE-17
D330B
E4K00261
<G>DI SMD DAN217 F T146
D330G
E4K00261
<G>DI SMD DAN217 F T146
D330R
E4K00261
<G>DI SMD DAN217 F T146
D341B
E4K00011
<G>DI SMD 1SS356TW11
D341G
E4K00011
<G>DI SMD 1SS356TW11
D341R
E4K00011
<G>DI SMD 1SS356TW11
D351B
E4K00011
<G>DI SMD 1SS356TW11
D351G
E4K00011
<G>DI SMD 1SS356TW11
D351R
E4K00011
<G>DI SMD 1SS356TW11
D820
E4K00261
<G>DI SMD DAN217 F T146
D821
E4K00271
<G>DI SMD RB495DT146
D831
E4K00271
<G>DI SMD RB495DT146
ZD181
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD183
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD311
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD312
E6D40362
<G>ZD SMD UDZS3.6BTE-17
8-44

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
ZD321
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD322
E6D40362
<G>ZD SMD UDZS3.6BTE-17
ZD331
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
J8100541
<G>U INVERT L205GR
MAIN1
AM0GR1ML
<G>MAIN INSERT ASSY ROHS
POWER1
J8100551
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
H4011811
<G>L SMD BEAD BK1608LM252
B103
H4011811
<G>L SMD BEAD BK1608LM252
B151
H4011811
<G>L SMD BEAD BK1608LM252
B152
H4011811
<G>L SMD BEAD BK1608LM252
B153
H4011811
<G>L SMD BEAD BK1608LM252
B161
H4011811
<G>L SMD BEAD BK1608LM252
B162
H4011811
<G>L SMD BEAD BK1608LM252
B163
H4011811
<G>L SMD BEAD BK1608LM252
B164
H4011811
<G>L SMD BEAD BK1608LM252
B165
H4011811
<G>L SMD BEAD BK1608LM252
B166
H4011811
<G>L SMD BEAD BK1608LM252
B167
H4011811
<G>L SMD BEAD BK1608LM252
B168
H4011811
<G>L SMD BEAD BK1608LM252
B169
H4011811
<G>L SMD BEAD BK1608LM252
B1F1
H4019281
<G>L SMD BEAD FBMH3216HM5
B201
H4019281
<G>L SMD BEAD FBMH3216HM5
B211
H4019281
<G>L SMD BEAD FBMH3216HM5
B221
H4019281
<G>L SMD BEAD FBMH3216HM5
B231
H4019281
<G>L SMD BEAD FBMH3216HM5
B261
H4019281
<G>L SMD BEAD FBMH3216HM5
B291
H4011811
<G>L SMD BEAD BK1608LM252
B2A1
H4011811
<G>L SMD BEAD BK1608LM252
B361
H4020011
<G>L SMD BEAD BKP1608HS33
B362
H4020011
<G>L SMD BEAD BKP1608HS33
B381
H4020011
<G>L SMD BEAD BKP1608HS33
B382
H4020011
<G>L SMD BEAD BKP1608HS33
B3E1
H4020011
<G>L SMD BEAD BKP1608HS33
B3E2
H4020011
<G>L SMD BEAD BKP1608HS33
B3E3
H4020011
<G>L SMD BEAD BKP1608HS33
B401
H4011811
<G>L SMD BEAD BK1608LM252
B402
H4011811
<G>L SMD BEAD BK1608LM252
B431
H4011681
<G>L SMD BEAD BK1608HS601
B433
H4011681
<G>L SMD BEAD BK1608HS601
B435
H4011811
<G>L SMD BEAD BK1608LM252
B436
H4011811
<G>L SMD BEAD BK1608LM252
8-45

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
B441
H4011681
<G>L SMD BEAD BK1608HS601
B445
H4011811
<G>L SMD BEAD BK1608LM252
B446
H4011811
<G>L SMD BEAD BK1608LM252
B447
H4011811
<G>L SMD BEAD BK1608LM252
B448
H4011811
<G>L SMD BEAD BK1608LM252
B451
H4011681
<G>L SMD BEAD BK1608HS601
B452
H4011811
<G>L SMD BEAD BK1608LM252
B461
H4011681
<G>L SMD BEAD BK1608HS601
B471
H4011681
<G>L SMD BEAD BK1608HS601
B481
H4019281
<G>L SMD BEAD FBMH3216HM5
B487
H4011811
<G>L SMD BEAD BK1608LM252
B488
H4011811
<G>L SMD BEAD BK1608LM252
B489
H4011811
<G>L SMD BEAD BK1608LM252
B621
H4019281
<G>L SMD BEAD FBMH3216HM5
B631
H4019281
<G>L SMD BEAD FBMH3216HM5
B704
H4011811
<G>L SMD BEAD BK1608LM252
B853
H4020011
<G>L SMD BEAD BKP1608HS33
FL218
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL225
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL233
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL551
H1B00207
<G>L SMD NFE31PT222Z1E9L
L211
H1B00169
<G>L SMD SLF7030T-100M1R3
L221
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L231
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L241
H1B00169
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
R5010531
<G>CABLE VIDEO GRY DVID-D
CBL2
R5010541
<G>CABLE VIDEO GRY DVIA-D
CBL3
R7031031
<G>PW CORD EUR 2M RPLUG G
CBL4
R7041041
<G>PW CORD UK 2.0M R-PLUG
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
R3201971
<G>WIRE CC31P/8P 1516#30L
SWBD1
J8100601
<G>U FPC SW ASSY WHT LCD1
WIRE1
R3201941
<G>WIRE CC13P/8P5P 1007#2
WIRE2
R3201951
<G>WIRE CC9P 1007#26L100
X100
E82K0101
<G>OSC SMD CSTCR4M91G55-R
X401
E81K0201
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
KL0WB1WL
<G>SKD BACK ASSY LCD2090U
COVER1
1A701141
<G>COVER OUTER WH
FRONT1
1K108551
<G>BEZEL L205GR WH
SCR01
1D301061
<G>SC CBIMS3X10X3G
SCR02
1D000901
<G>SC #2CPISSX3X6X3K
8-46

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
SCR03
1D300831
<G>BM 3X5.7 BLACK-NI
SCR04
1D301031
<G>P4X6+SPW+WAS MC(NI)
SCR05
1D000831
<G>SC #2CPISSX3X6X16B
SCR06
1D301041
<G>SC CBIMS3X6X3G
SCR07
1D000121
<G>SCREW CUP 3X8X15BF
SCR08
1D300201
<G>SCR 4#-40TX4.8HLX4HLX5
STAND1
1A003311
<G>STAND UNIT WH
*** PRINTED & PACKING MATERIALS ***
CTN1
1C205671
<G>CARTON BOX L205GR WHA
CTN2
1C203011
<G>CARTON SHEET
EPS1
1C401991
<G>FILLER T L205GR
EPS2
1C402001
<G>FILLER B L205GR
LBL1
1E004851
<G>LABEL RATING L205GR WH
MANU1
1E504751
<G>MANUAL ASSY LCD2090UXI
MANU2
1E802491
<G>SHEET SETUP L205GR B
MANU3
1E800231
<G>CAUTION SHEET FOR 15
PE1
1C700522
<G>PACKING BAG
PE2
1C700741
<G>BAG POLYETHYLENE 170X9
PE3
1C700251
<G>PE BAG 230X320
*** RESISTORS ***
B281
F7110000
<G>R SMD METAL 1/4W 0 J 1
B282
F7110000
<G>R SMD METAL 1/4W 0 J 1
B2E1
F7010000
<G>R SMD METAL 1/10W 0 J
B320B
F7010000
<G>R SMD METAL 1/10W 0 J
B320G
F7010000
<G>R SMD METAL 1/10W 0 J
B320R
F7010000
<G>R SMD METAL 1/10W 0 J
B330B
F7010000
<G>R SMD METAL 1/10W 0 J
B330G
F7010000
<G>R SMD METAL 1/10W 0 J
B330R
F7010000
<G>R SMD METAL 1/10W 0 J
B360
F7010000
<G>R SMD METAL 1/10W 0 J
F281
B7015021
<G>R SMD FUSE MINISMDC150
MR103
F9221013
<G>R SMD NET 1/16W 100 J
MR104
F9221013
<G>R SMD NET 1/16W 100 J
MR105
F9221013
<G>R SMD NET 1/16W 100 J
MR121
F9221013
<G>R SMD NET 1/16W 100 J
MR122
F9221013
<G>R SMD NET 1/16W 100 J
MR151
F9221033
<G>R SMD NET 1/16W 10K J
MR152
F9221033
<G>R SMD NET 1/16W 10K J
MR401
F9223303
<G>R SMD NET 1/16W 33 J (
MR402
F9223303
<G>R SMD NET 1/16W 33 J (
MR403
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR404
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR405
F9220003
<G>R SMD NET 1/16W 0 J 8P
8-47

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
MR406
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR407
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR450H
F9223303
<G>R SMD NET 1/16W 33 J (
MR450L
F9223303
<G>R SMD NET 1/16W 33 J (
MR451H
F9223303
<G>R SMD NET 1/16W 33 J (
MR451L
F9223303
<G>R SMD NET 1/16W 33 J (
MR452H
F9223303
<G>R SMD NET 1/16W 33 J (
MR452L
F9223303
<G>R SMD NET 1/16W 33 J (
MR453H
F9223303
<G>R SMD NET 1/16W 33 J (
MR453L
F9223303
<G>R SMD NET 1/16W 33 J (
MR454
F9223303
<G>R SMD NET 1/16W 33 J (
MR455
F9223303
<G>R SMD NET 1/16W 33 J (
MR456
F9223303
<G>R SMD NET 1/16W 33 J (
R100
F7010105
<G>R SMD METAL 1/10W 1.0M
R102
F7010103
<G>R SMD METAL 1/10W 10K
R103
F7010103
<G>R SMD METAL 1/10W 10K
R104
F7010330
<G>R SMD METAL 1/10W 33 J
R105
F7010103
<G>R SMD METAL 1/10W 10K
R106
F7010330
<G>R SMD METAL 1/10W 33 J
R107
F7010330
<G>R SMD METAL 1/10W 33 J
R108
F7010330
<G>R SMD METAL 1/10W 33 J
R109
F7010330
<G>R SMD METAL 1/10W 33 J
R110
F7010330
<G>R SMD METAL 1/10W 33 J
R111
F7010330
<G>R SMD METAL 1/10W 33 J
R112
F7010330
<G>R SMD METAL 1/10W 33 J
R113
F7010330
<G>R SMD METAL 1/10W 33 J
R114
F7010330
<G>R SMD METAL 1/10W 33 J
R115
F7010223
<G>R SMD METAL 1/10W 22K
R116
F7010473
<G>R SMD METAL 1/10W 47K
R117
F7010473
<G>R SMD METAL 1/10W 47K
R121
F7010102
<G>R SMD METAL 1/10W 1.0K
R122
F7010101
<G>R SMD METAL 1/10W 100
R123
F7010101
<G>R SMD METAL 1/10W 100
R124
F7010101
<G>R SMD METAL 1/10W 100
R125
F7010101
<G>R SMD METAL 1/10W 100
R126
F7010330
<G>R SMD METAL 1/10W 33 J
R128
F7010330
<G>R SMD METAL 1/10W 33 J
R129
F7010330
<G>R SMD METAL 1/10W 33 J
R131
F7010330
<G>R SMD METAL 1/10W 33 J
R132
F7010330
<G>R SMD METAL 1/10W 33 J
R133
F7010330
<G>R SMD METAL 1/10W 33 J
R134
F7010330
<G>R SMD METAL 1/10W 33 J
R135
F7010330
<G>R SMD METAL 1/10W 33 J
R136
F7010330
<G>R SMD METAL 1/10W 33 J
R137
F7010330
<G>R SMD METAL 1/10W 33 J
8-48

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R138
F7010330
<G>R SMD METAL 1/10W 33 J
R140
F7010000
<G>R SMD METAL 1/10W 0 J
R141
F7010000
<G>R SMD METAL 1/10W 0 J
R142
F7010000
<G>R SMD METAL 1/10W 0 J
R143
F7010101
<G>R SMD METAL 1/10W 100
R144
F7010104
<G>R SMD METAL 1/10W 100K
R146
F7010104
<G>R SMD METAL 1/10W 100K
R148
F7010104
<G>R SMD METAL 1/10W 100K
R149
F7010000
<G>R SMD METAL 1/10W 0 J
R14A
F7010104
<G>R SMD METAL 1/10W 100K
R151
F8016800
<G>R SMD METAL 1/10W 680
R152
F8016800
<G>R SMD METAL 1/10W 680
R153
F7010182
<G>R SMD METAL 1/10W 1.8K
R154
F7010182
<G>R SMD METAL 1/10W 1.8K
R155
F7010682
<G>R SMD METAL 1/10W 6.8K
R156
F7010682
<G>R SMD METAL 1/10W 6.8K
R157
F7010473
<G>R SMD METAL 1/10W 47K
R158
F7010103
<G>R SMD METAL 1/10W 10K
R159
F7010101
<G>R SMD METAL 1/10W 100
R160
F7010101
<G>R SMD METAL 1/10W 100
R161
F7100102
<G>R SMD METAL 1/8W 1.0K
R162
F7100102
<G>R SMD METAL 1/8W 1.0K
R163
F7100102
<G>R SMD METAL 1/8W 1.0K
R164
F7100102
<G>R SMD METAL 1/8W 1.0K
R165
F7100102
<G>R SMD METAL 1/8W 1.0K
R166
F7100102
<G>R SMD METAL 1/8W 1.0K
R167
F7100102
<G>R SMD METAL 1/8W 1.0K
R168
F7100102
<G>R SMD METAL 1/8W 1.0K
R169
F7010334
<G>R SMD METAL 1/10W 330K
R171
F7010103
<G>R SMD METAL 1/10W 10K
R172
F7010103
<G>R SMD METAL 1/10W 10K
R184
F8013903
<G>R SMD METAL 1/10W 390K
R185
F8012203
<G>R SMD METAL 1/10W 220K
R186
F7010104
<G>R SMD METAL 1/10W 100K
R187
F8011000
<G>R SMD METAL 1/10W 100
R188
F7010182
<G>R SMD METAL 1/10W 1.8K
R189
F7010682
<G>R SMD METAL 1/10W 6.8K
R191
F7010103
<G>R SMD METAL 1/10W 10K
R193
F7010103
<G>R SMD METAL 1/10W 10K
R195
F7010103
<G>R SMD METAL 1/10W 10K
R1F1
F7010102
<G>R SMD METAL 1/10W 1.0K
R1F2
F7010103
<G>R SMD METAL 1/10W 10K
R1F3
F7010223
<G>R SMD METAL 1/10W 22K
R1F4
F7010103
<G>R SMD METAL 1/10W 10K
R1F5
F7010152
<G>R SMD METAL 1/10W 1.5K
8-49

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R1F6
F7010103
<G>R SMD METAL 1/10W 10K
R1F7
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F8
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F9
F7010560
<G>R SMD METAL 1/10W 56 J
R1H1
F7010824
<G>R SMD METAL 1/10W 820K
R1H2
F7010103
<G>R SMD METAL 1/10W 10K
R1H3
F7010104
<G>R SMD METAL 1/10W 100K
R1H4
F7010102
<G>R SMD METAL 1/10W 1.0K
R1H5
F8012202
<G>R SMD METAL 1/10W 22K
R1H6
F8011503
<G>R SMD METAL 1/10W 150K
R1H7
F7010104
<G>R SMD METAL 1/10W 100K
R1H8
F7010102
<G>R SMD METAL 1/10W 1.0K
R201
F7110000
<G>R SMD METAL 1/4W 0 J 1
R203M
F7010000
<G>R SMD METAL 1/10W 0 J
R203N
F7010000
<G>R SMD METAL 1/10W 0 J
R20UX
F7010000
<G>R SMD METAL 1/10W 0 J
R211
F7010000
<G>R SMD METAL 1/10W 0 J
R212
F8011503
<G>R SMD METAL 1/10W 150K
R213
F8011503
<G>R SMD METAL 1/10W 150K
R214
F8012203
<G>R SMD METAL 1/10W 220K
R215
F8011003
<G>R SMD METAL 1/10W 100K
R216
F8011003
<G>R SMD METAL 1/10W 100K
R217
F7010000
<G>R SMD METAL 1/10W 0 J
R221
F7010000
<G>R SMD METAL 1/10W 0 J
R222
F7010000
<G>R SMD METAL 1/10W 0 J
R223
F8015103
<G>R SMD METAL 1/10W 510K
R224
F8012403
<G>R SMD METAL 1/10W 240K
R225
F8011003
<G>R SMD METAL 1/10W 100K
R226
F8015602
<G>R SMD METAL 1/10W 56K
R231
F7010000
<G>R SMD METAL 1/10W 0 J
R232
F7010000
<G>R SMD METAL 1/10W 0 J
R233
F8014703
<G>R SMD METAL 1/10W 470K
R234
F8011503
<G>R SMD METAL 1/10W 150K
R235
F8011503
<G>R SMD METAL 1/10W 150K
R236
F8015602
<G>R SMD METAL 1/10W 56K
R241
F8013903
<G>R SMD METAL 1/10W 390K
R242
F8015102
<G>R SMD METAL 1/10W 51K
R243M
F7010000
<G>R SMD METAL 1/10W 0 J
R243N
F7010000
<G>R SMD METAL 1/10W 0 J
R245
F7010103
<G>R SMD METAL 1/10W 10K
R246
F8012202
<G>R SMD METAL 1/10W 22K
R247
F8011203
<G>R SMD METAL 1/10W 120K
R248
F8011002
<G>R SMD METAL 1/10W 10K
R249
F7010000
<G>R SMD METAL 1/10W 0 J
R251
F7010333
<G>R SMD METAL 1/10W 33K
8-50

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R252
F7010104
<G>R SMD METAL 1/10W 100K
R261
F7310681
<G>R SMD METAL 3/4W 680 J
R262
F7310681
<G>R SMD METAL 3/4W 680 J
R263
F7010102
<G>R SMD METAL 1/10W 1.0K
R264
F7010103
<G>R SMD METAL 1/10W 10K
R265
F8011003
<G>R SMD METAL 1/10W 100K
R266
F8013302
<G>R SMD METAL 1/10W 33K
R267
F7010000
<G>R SMD METAL 1/10W 0 J
R268
F7010000
<G>R SMD METAL 1/10W 0 J
R269
F7010333
<G>R SMD METAL 1/10W 33K
R270
F7010000
<G>R SMD METAL 1/10W 0 J
R271
F7010101
<G>R SMD METAL 1/10W 100
R272
F7010101
<G>R SMD METAL 1/10W 100
R273
F7010101
<G>R SMD METAL 1/10W 100
R274
F7010105
<G>R SMD METAL 1/10W 1.0M
R291
F7010103
<G>R SMD METAL 1/10W 10K
R2A1
F7010103
<G>R SMD METAL 1/10W 10K
R312
F7010101
<G>R SMD METAL 1/10W 100
R313
F7010101
<G>R SMD METAL 1/10W 100
R314
F7010222
<G>R SMD METAL 1/10W 2.2K
R315N
F7010100
<G>R SMD METAL 1/10W 10 J
R315P
F7010100
<G>R SMD METAL 1/10W 10 J
R316N
F7010100
<G>R SMD METAL 1/10W 10 J
R316P
F7010100
<G>R SMD METAL 1/10W 10 J
R317N
F7010100
<G>R SMD METAL 1/10W 10 J
R317P
F7010100
<G>R SMD METAL 1/10W 10 J
R318N
F7010100
<G>R SMD METAL 1/10W 10 J
R318P
F7010100
<G>R SMD METAL 1/10W 10 J
R320E
F7010104
<G>R SMD METAL 1/10W 100K
R320H
F7010330
<G>R SMD METAL 1/10W 33 J
R320V
F7010330
<G>R SMD METAL 1/10W 33 J
R322
F7010101
<G>R SMD METAL 1/10W 100
R323
F7010101
<G>R SMD METAL 1/10W 100
R324
F7010222
<G>R SMD METAL 1/10W 2.2K
R325N
F7010100
<G>R SMD METAL 1/10W 10 J
R325P
F7010100
<G>R SMD METAL 1/10W 10 J
R326N
F7010100
<G>R SMD METAL 1/10W 10 J
R326P
F7010100
<G>R SMD METAL 1/10W 10 J
R327N
F7010100
<G>R SMD METAL 1/10W 10 J
R327P
F7010100
<G>R SMD METAL 1/10W 10 J
R328N
F7010100
<G>R SMD METAL 1/10W 10 J
R328P
F7010100
<G>R SMD METAL 1/10W 10 J
R329H
F7010222
<G>R SMD METAL 1/10W 2.2K
R329V
F7010222
<G>R SMD METAL 1/10W 2.2K
R330E
F7010104
<G>R SMD METAL 1/10W 100K
8-51

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R330H
F7010330
<G>R SMD METAL 1/10W 33 J
R330V
F7010330
<G>R SMD METAL 1/10W 33 J
R332
F7010101
<G>R SMD METAL 1/10W 100
R333
F7010101
<G>R SMD METAL 1/10W 100
R339H
F7010222
<G>R SMD METAL 1/10W 2.2K
R339V
F7010222
<G>R SMD METAL 1/10W 2.2K
R341A
F7010000
<G>R SMD METAL 1/10W 0 J
R341B
F8527509
<G>R SMD METAL 1/2W 75 F
R341G
F8527509
<G>R SMD METAL 1/2W 75 F
R341R
F8527509
<G>R SMD METAL 1/2W 75 F
R342B
F7010103
<G>R SMD METAL 1/10W 10K
R342G
F7010103
<G>R SMD METAL 1/10W 10K
R342R
F7010103
<G>R SMD METAL 1/10W 10K
R343B
F7010153
<G>R SMD METAL 1/10W 15K
R343G
F7010153
<G>R SMD METAL 1/10W 15K
R343R
F7010153
<G>R SMD METAL 1/10W 15K
R344B
F7010101
<G>R SMD METAL 1/10W 100
R344G
F7010101
<G>R SMD METAL 1/10W 100
R344R
F7010101
<G>R SMD METAL 1/10W 100
R345B
F7010331
<G>R SMD METAL 1/10W 330
R345G
F7010331
<G>R SMD METAL 1/10W 330
R345R
F7010331
<G>R SMD METAL 1/10W 330
R346B
F7010510
<G>R SMD METAL 1/10W 51 J
R346G
F7010510
<G>R SMD METAL 1/10W 51 J
R346R
F7010510
<G>R SMD METAL 1/10W 51 J
R347B
F7010102
<G>R SMD METAL 1/10W 1.0K
R347G
F7010102
<G>R SMD METAL 1/10W 1.0K
R347R
F7010102
<G>R SMD METAL 1/10W 1.0K
R348B
F7010473
<G>R SMD METAL 1/10W 47K
R348G
F7010473
<G>R SMD METAL 1/10W 47K
R348R
F7010473
<G>R SMD METAL 1/10W 47K
R349B
F7010000
<G>R SMD METAL 1/10W 0 J
R349G
F7010000
<G>R SMD METAL 1/10W 0 J
R349R
F7010000
<G>R SMD METAL 1/10W 0 J
R34K
F7010473
<G>R SMD METAL 1/10W 47K
R34L
F7010101
<G>R SMD METAL 1/10W 100
R351A
F7010000
<G>R SMD METAL 1/10W 0 J
R351B
F8527509
<G>R SMD METAL 1/2W 75 F
R351G
F8527509
<G>R SMD METAL 1/2W 75 F
R351R
F8527509
<G>R SMD METAL 1/2W 75 F
R352B
F7010103
<G>R SMD METAL 1/10W 10K
R352G
F7010103
<G>R SMD METAL 1/10W 10K
R352R
F7010103
<G>R SMD METAL 1/10W 10K
R353B
F7010153
<G>R SMD METAL 1/10W 15K
R353G
F7010153
<G>R SMD METAL 1/10W 15K
8-52

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R353R
F7010153
<G>R SMD METAL 1/10W 15K
R354B
F7010101
<G>R SMD METAL 1/10W 100
R354G
F7010101
<G>R SMD METAL 1/10W 100
R354R
F7010101
<G>R SMD METAL 1/10W 100
R355B
F7010331
<G>R SMD METAL 1/10W 330
R355G
F7010331
<G>R SMD METAL 1/10W 330
R355R
F7010331
<G>R SMD METAL 1/10W 330
R356B
F7010510
<G>R SMD METAL 1/10W 51 J
R356G
F7010510
<G>R SMD METAL 1/10W 51 J
R356R
F7010510
<G>R SMD METAL 1/10W 51 J
R357B
F7010102
<G>R SMD METAL 1/10W 1.0K
R357G
F7010102
<G>R SMD METAL 1/10W 1.0K
R357R
F7010102
<G>R SMD METAL 1/10W 1.0K
R358B
F7010473
<G>R SMD METAL 1/10W 47K
R358G
F7010473
<G>R SMD METAL 1/10W 47K
R358R
F7010473
<G>R SMD METAL 1/10W 47K
R359B
F7010000
<G>R SMD METAL 1/10W 0 J
R359G
F7010000
<G>R SMD METAL 1/10W 0 J
R359R
F7010000
<G>R SMD METAL 1/10W 0 J
R361
F7010104
<G>R SMD METAL 1/10W 100K
R362
F7010104
<G>R SMD METAL 1/10W 100K
R363
F7010102
<G>R SMD METAL 1/10W 1.0K
R364
F7010561
<G>R SMD METAL 1/10W 560
R365
F7010221
<G>R SMD METAL 1/10W 220
R366
F7010103
<G>R SMD METAL 1/10W 10K
R367
F7010223
<G>R SMD METAL 1/10W 22K
R368
F8011302
<G>R SMD METAL 1/10W 13K
R369
F7010101
<G>R SMD METAL 1/10W 100
R371
F7010332
<G>R SMD METAL 1/10W 3.3K
R372
F7010472
<G>R SMD METAL 1/10W 4.7K
R373
F7010471
<G>R SMD METAL 1/10W 470
R374
F7010330
<G>R SMD METAL 1/10W 33 J
R375
F8015601
<G>R SMD METAL 1/10W 5.6K
R376
F8011500
<G>R SMD METAL 1/10W 150
R377
F8013300
<G>R SMD METAL 1/10W 330
R378
F8012201
<G>R SMD METAL 1/10W 2.2K
R381
F7010104
<G>R SMD METAL 1/10W 100K
R382
F7010104
<G>R SMD METAL 1/10W 100K
R383
F7010102
<G>R SMD METAL 1/10W 1.0K
R384
F7010561
<G>R SMD METAL 1/10W 560
R385
F7010221
<G>R SMD METAL 1/10W 220
R386
F7010103
<G>R SMD METAL 1/10W 10K
R387
F7010223
<G>R SMD METAL 1/10W 22K
R389
F7010101
<G>R SMD METAL 1/10W 100
R391
F7010332
<G>R SMD METAL 1/10W 3.3K
8-53

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R392
F7010472
<G>R SMD METAL 1/10W 4.7K
R393
F7010471
<G>R SMD METAL 1/10W 470
R394
F7010330
<G>R SMD METAL 1/10W 33 J
R395
F8012701
<G>R SMD METAL 1/10W 2.7K
R396
F8015600
<G>R SMD METAL 1/10W 560
R397
F8011500
<G>R SMD METAL 1/10W 150
R398
F8011101
<G>R SMD METAL 1/10W 1.1K
R3E1
F7010471
<G>R SMD METAL 1/10W 470
R3E2
F7010330
<G>R SMD METAL 1/10W 33 J
R3E3
F7010330
<G>R SMD METAL 1/10W 33 J
R3E4
F7010330
<G>R SMD METAL 1/10W 33 J
R3E5
F7010330
<G>R SMD METAL 1/10W 33 J
R3E6
F8012201
<G>R SMD METAL 1/10W 2.2K
R3E7
F8016801
<G>R SMD METAL 1/10W 6.8K
R3E8
F8012202
<G>R SMD METAL 1/10W 22K
R401
F8013900
<G>R SMD METAL 1/10W 390
R411A
F7010471
<G>R SMD METAL 1/10W 470
R411B
F7010270
<G>R SMD METAL 1/10W 27 J
R411G
F7010270
<G>R SMD METAL 1/10W 27 J
R411H
F7010330
<G>R SMD METAL 1/10W 33 J
R411R
F7010270
<G>R SMD METAL 1/10W 27 J
R411V
F7010330
<G>R SMD METAL 1/10W 33 J
R412B
F7010220
<G>R SMD METAL 1/10W 22 J
R412G
F7010220
<G>R SMD METAL 1/10W 22 J
R412R
F7010220
<G>R SMD METAL 1/10W 22 J
R413A
F7010471
<G>R SMD METAL 1/10W 470
R413B
F7010270
<G>R SMD METAL 1/10W 27 J
R413G
F7010270
<G>R SMD METAL 1/10W 27 J
R413H
F7010330
<G>R SMD METAL 1/10W 33 J
R413R
F7010270
<G>R SMD METAL 1/10W 27 J
R413V
F7010330
<G>R SMD METAL 1/10W 33 J
R414B
F7010220
<G>R SMD METAL 1/10W 22 J
R414G
F7010220
<G>R SMD METAL 1/10W 22 J
R414R
F7010220
<G>R SMD METAL 1/10W 22 J
R415
F7010152
<G>R SMD METAL 1/10W 1.5K
R416
F7010152
<G>R SMD METAL 1/10W 1.5K
R417
F7010511
<G>R SMD METAL 1/10W 510
R418
F7010511
<G>R SMD METAL 1/10W 510
R421
F7010330
<G>R SMD METAL 1/10W 33 J
R422
F7010330
<G>R SMD METAL 1/10W 33 J
R423
F7010330
<G>R SMD METAL 1/10W 33 J
R424
F7010473
<G>R SMD METAL 1/10W 47K
R425
F7010473
<G>R SMD METAL 1/10W 47K
R426
F7010473
<G>R SMD METAL 1/10W 47K
R427
F7010000
<G>R SMD METAL 1/10W 0 J
8-54

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R428
F7010103
<G>R SMD METAL 1/10W 10K
R429
F7010103
<G>R SMD METAL 1/10W 10K
R431
F7010103
<G>R SMD METAL 1/10W 10K
R432
F7010103
<G>R SMD METAL 1/10W 10K
R433
F7010103
<G>R SMD METAL 1/10W 10K
R434
F7010330
<G>R SMD METAL 1/10W 33 J
R435
F7010330
<G>R SMD METAL 1/10W 33 J
R436
F7010330
<G>R SMD METAL 1/10W 33 J
R441N
F7010180
<G>R SMD METAL 1/10W 18 J
R441P
F7010180
<G>R SMD METAL 1/10W 18 J
R442
F7010330
<G>R SMD METAL 1/10W 33 J
R443
F7010330
<G>R SMD METAL 1/10W 33 J
R444
F7010330
<G>R SMD METAL 1/10W 33 J
R445
F7010330
<G>R SMD METAL 1/10W 33 J
R446
F7010330
<G>R SMD METAL 1/10W 33 J
R447
F7010330
<G>R SMD METAL 1/10W 33 J
R448
F7010330
<G>R SMD METAL 1/10W 33 J
R449
F7010330
<G>R SMD METAL 1/10W 33 J
R450
F7010330
<G>R SMD METAL 1/10W 33 J
R451
F7010330
<G>R SMD METAL 1/10W 33 J
R452
F7010330
<G>R SMD METAL 1/10W 33 J
R453
F7010330
<G>R SMD METAL 1/10W 33 J
R454
F7010330
<G>R SMD METAL 1/10W 33 J
R491
F8011001
<G>R SMD METAL 1/10W 1.0K
R492
F8011001
<G>R SMD METAL 1/10W 1.0K
R551
F7010562
<G>R SMD METAL 1/10W 5.6K
R601
F7010151
<G>R SMD METAL 1/10W 150
R602
F7010330
<G>R SMD METAL 1/10W 33 J
R603
F7010330
<G>R SMD METAL 1/10W 33 J
R604
F7010330
<G>R SMD METAL 1/10W 33 J
R605
F7010330
<G>R SMD METAL 1/10W 33 J
R611
F8011001
<G>R SMD METAL 1/10W 1.0K
R612
F8011001
<G>R SMD METAL 1/10W 1.0K
R701
F7010272
<G>R SMD METAL 1/10W 2.7K
R702
F7010272
<G>R SMD METAL 1/10W 2.7K
R703
F7010470
<G>R SMD METAL 1/10W 47 J
R704
F7010470
<G>R SMD METAL 1/10W 47 J
R705
F7010470
<G>R SMD METAL 1/10W 47 J
R706
B3Y00011
<G>R SMD METAL 1W 33 J 25
R707
F7010330
<G>R SMD METAL 1/10W 33 J
R708
F7010103
<G>R SMD METAL 1/10W 10K
R709
F7010103
<G>R SMD METAL 1/10W 10K
R710
F7010330
<G>R SMD METAL 1/10W 33 J
R711
F7010103
<G>R SMD METAL 1/10W 10K
R810
F7010103
<G>R SMD METAL 1/10W 10K
8-55

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R811
B3Y00011
<G>R SMD METAL 1W 33 J 25
R812
F8015100
<G>R SMD METAL 1/10W 510
R821
B3Y00011
<G>R SMD METAL 1W 33 J 25
R822
F8015100
<G>R SMD METAL 1/10W 510
R823
F7010101
<G>R SMD METAL 1/10W 100
R824
F7010272
<G>R SMD METAL 1/10W 2.7K
R825
F7010473
<G>R SMD METAL 1/10W 47K
R826
F7010103
<G>R SMD METAL 1/10W 10K
R830
F7010103
<G>R SMD METAL 1/10W 10K
R831
B3Y00011
<G>R SMD METAL 1W 33 J 25
R851
F7010473
<G>R SMD METAL 1/10W 47K
R852
F7010273
<G>R SMD METAL 1/10W 27K
R853
F7010473
<G>R SMD METAL 1/10W 47K
R854
F7010473
<G>R SMD METAL 1/10W 47K
R855
F7010273
<G>R SMD METAL 1/10W 27K
R856
F7010000
<G>R SMD METAL 1/10W 0 J
R857
F7010000
<G>R SMD METAL 1/10W 0 J
R858
F7010562
<G>R SMD METAL 1/10W 5.6K
R859
F7010562
<G>R SMD METAL 1/10W 5.6K
R861
F7010473
<G>R SMD METAL 1/10W 47K
R862
F7010273
<G>R SMD METAL 1/10W 27K
R863
F7010473
<G>R SMD METAL 1/10W 47K
R864
F7010473
<G>R SMD METAL 1/10W 47K
R865
F7010473
<G>R SMD METAL 1/10W 47K
R866
F7010273
<G>R SMD METAL 1/10W 27K
R867
F7010473
<G>R SMD METAL 1/10W 47K
R868
F7010473
<G>R SMD METAL 1/10W 47K
R871
F7010000
<G>R SMD METAL 1/10W 0 J
R872
F8013302
<G>R SMD METAL 1/10W 33K
R873
F8013302
<G>R SMD METAL 1/10W 33K
R874
F8013302
<G>R SMD METAL 1/10W 33K
R875
F7010103
<G>R SMD METAL 1/10W 10K
R876
F7010000
<G>R SMD METAL 1/10W 0 J
R877
F7010473
<G>R SMD METAL 1/10W 47K
R878
F7010473
<G>R SMD METAL 1/10W 47K
R879
F7010562
<G>R SMD METAL 1/10W 5.6K
R881
F7010273
<G>R SMD METAL 1/10W 27K
R882
F7010273
<G>R SMD METAL 1/10W 27K
R883
F7010273
<G>R SMD METAL 1/10W 27K
R891
F7010473
<G>R SMD METAL 1/10W 47K
R892
F7010473
<G>R SMD METAL 1/10W 47K
R893
F7010473
<G>R SMD METAL 1/10W 47K
R894
F7010473
<G>R SMD METAL 1/10W 47K
R895
F7010473
<G>R SMD METAL 1/10W 47K
R896
F7010473
<G>R SMD METAL 1/10W 47K
8-56

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
*** CAPACITORS ***
C101
M741042K
<G>C SMD B 0.1U 16V K 060
C103
M741042K
<G>C SMD B 0.1U 16V K 060
C104
M741042K
<G>C SMD B 0.1U 16V K 060
C105
M741042K
<G>C SMD B 0.1U 16V K 060
C106
M704750S
<G>C SMD X5R 4.7U 6.3V K
C109
M741042K
<G>C SMD B 0.1U 16V K 060
C112
M701060M
<G>C SMD B 10U 6.3V M 080
C113
M741042K
<G>C SMD B 0.1U 16V K 060
C114
M741042K
<G>C SMD B 0.1U 16V K 060
C115
M741042K
<G>C SMD B 0.1U 16V K 060
C144
M741042K
<G>C SMD B 0.1U 16V K 060
C146
M741042K
<G>C SMD B 0.1U 16V K 060
C148
M741042K
<G>C SMD B 0.1U 16V K 060
C161
M741042K
<G>C SMD B 0.1U 16V K 060
C162
M741042K
<G>C SMD B 0.1U 16V K 060
C163
M741042K
<G>C SMD B 0.1U 16V K 060
C164
M741042K
<G>C SMD B 0.1U 16V K 060
C165
M741042K
<G>C SMD B 0.1U 16V K 060
C166
M741042K
<G>C SMD B 0.1U 16V K 060
C167
M741042K
<G>C SMD B 0.1U 16V K 060
C168
M741042K
<G>C SMD B 0.1U 16V K 060
C171
M741042K
<G>C SMD B 0.1U 16V K 060
C172
M741042K
<G>C SMD B 0.1U 16V K 060
C184
M7410353
<G>C SMD X7R 0.01U 50V K
C186
M741042K
<G>C SMD B 0.1U 16V K 060
C1F0
M701060M
<G>C SMD B 10U 6.3V M 080
C1F1
M701060M
<G>C SMD B 10U 6.3V M 080
C1F2
M704750S
<G>C SMD X5R 4.7U 6.3V K
C1F3
M741051M
<G>CSMDB1U10VM0603
C1F4
M7439157
<G>C SMD CH 390P 50V J 06
C1F5
M741042K
<G>C SMD B 0.1U 16V K 060
C1F6
M741042K
<G>C SMD B 0.1U 16V K 060
C1F7
M7410353
<G>C SMD X7R 0.01U 50V K
C211
M701060M
<G>C SMD B 10U 6.3V M 080
C212
M701060M
<G>C SMD B 10U 6.3V M 080
C213
M701060M
<G>C SMD B 10U 6.3V M 080
C214
M7418057
<G>C SMD CH 18P 50V J 060
C216
M741042K
<G>C SMD B 0.1U 16V K 060
C221
M701060M
<G>C SMD B 10U 6.3V M 080
C222
M701060M
<G>C SMD B 10U 6.3V M 080
C223
M701060M
<G>C SMD B 10U 6.3V M 080
C224
M7418057
<G>C SMD CH 18P 50V J 060
C226
M741042K
<G>C SMD B 0.1U 16V K 060
8-57

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C231
M701060M
<G>C SMD B 10U 6.3V M 080
C232
M701060M
<G>C SMD B 10U 6.3V M 080
C233
M701060M
<G>C SMD B 10U 6.3V M 080
C234
M7418057
<G>C SMD CH 18P 50V J 060
C236
M741042K
<G>C SMD B 0.1U 16V K 060
C241
M7010535
<G>C SMD X7R 1.0U 25V M 0
C242
M7210635
<G>C SMD X7R 10U 25V M 12
C243
M7210635
<G>C SMD X7R 10U 25V M 12
C244
M7410157
<G>C SMD CH 100P 50V J 06
C245
M7410353
<G>C SMD X7R 0.01U 50V K
C251
M7410439
<G>C SMD F 0.1U 25V Z 060
C261
M7410439
<G>C SMD F 0.1U 25V Z 060
C263
M7410439
<G>C SMD F 0.1U 25V Z 060
C264
M741042K
<G>C SMD B 0.1U 16V K 060
C265
M741042K
<G>C SMD B 0.1U 16V K 060
C266
M741042K
<G>C SMD B 0.1U 16V K 060
C271
M7410157
<G>C SMD CH 100P 50V J 06
C272
M7410157
<G>C SMD CH 100P 50V J 06
C273
M7410157
<G>C SMD CH 100P 50V J 06
C281
M7410157
<G>C SMD CH 100P 50V J 06
C282
M7410157
<G>C SMD CH 100P 50V J 06
C292
M701060M
<G>C SMD B 10U 6.3V M 080
C293
M701060M
<G>C SMD B 10U 6.3V M 080
C294
M741042K
<G>C SMD B 0.1U 16V K 060
C295
M741042K
<G>C SMD B 0.1U 16V K 060
C296
M701060M
<G>C SMD B 10U 6.3V M 080
C2A2
M701060M
<G>C SMD B 10U 6.3V M 080
C2A3
M701060M
<G>C SMD B 10U 6.3V M 080
C2A4
M741042K
<G>C SMD B 0.1U 16V K 060
C2A5
M741042K
<G>C SMD B 0.1U 16V K 060
C2A6
M701060M
<G>C SMD B 10U 6.3V M 080
C311
M741042K
<G>C SMD B 0.1U 16V K 060
C312
M741042K
<G>C SMD B 0.1U 16V K 060
C320A
M741042K
<G>C SMD B 0.1U 16V K 060
C320E
M741042K
<G>C SMD B 0.1U 16V K 060
C320V
M741025K
<G>C SMD B 1000P 50V K
C321
M741042K
<G>C SMD B 0.1U 16V K 060
C322
M741042K
<G>C SMD B 0.1U 16V K 060
C330A
M741042K
<G>C SMD B 0.1U 16V K 060
C330E
M741042K
<G>C SMD B 0.1U 16V K 060
C330V
M741025K
<G>C SMD B 1000P 50V K
C340
M701060M
<G>C SMD B 10U 6.3V M 080
C341A
M701060M
<G>C SMD B 10U 6.3V M 080
C341B
M701060M
<G>C SMD B 10U 6.3V M 080
C341G
M701060M
<G>C SMD B 10U 6.3V M 080
8-58

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C341R
M701060M
<G>C SMD B 10U 6.3V M 080
C342B
M741042K
<G>C SMD B 0.1U 16V K 060
C342G
M741042K
<G>C SMD B 0.1U 16V K 060
C342R
M741042K
<G>C SMD B 0.1U 16V K 060
C343B
M741042K
<G>C SMD B 0.1U 16V K 060
C343G
M741042K
<G>C SMD B 0.1U 16V K 060
C343R
M741042K
<G>C SMD B 0.1U 16V K 060
C344B
M7422052
<G>C SMD COG 22P 50V J 06
C344G
M7422052
<G>C SMD COG 22P 50V J 06
C344R
M7422052
<G>C SMD COG 22P 50V J 06
C34K
M741042K
<G>C SMD B 0.1U 16V K 060
C350
M701060M
<G>C SMD B 10U 6.3V M 080
C351A
M701060M
<G>C SMD B 10U 6.3V M 080
C351B
M701060M
<G>C SMD B 10U 6.3V M 080
C351G
M701060M
<G>C SMD B 10U 6.3V M 080
C351R
M701060M
<G>C SMD B 10U 6.3V M 080
C352B
M741042K
<G>C SMD B 0.1U 16V K 060
C352G
M741042K
<G>C SMD B 0.1U 16V K 060
C352R
M741042K
<G>C SMD B 0.1U 16V K 060
C353B
M741042K
<G>C SMD B 0.1U 16V K 060
C353G
M741042K
<G>C SMD B 0.1U 16V K 060
C353R
M741042K
<G>C SMD B 0.1U 16V K 060
C354B
M7422052
<G>C SMD COG 22P 50V J 06
C354G
M7422052
<G>C SMD COG 22P 50V J 06
C354R
M7422052
<G>C SMD COG 22P 50V J 06
C361
M741042K
<G>C SMD B 0.1U 16V K 060
C362
M701060M
<G>C SMD B 10U 6.3V M 080
C363
M741042K
<G>C SMD B 0.1U 16V K 060
C364
M741051M
<G>CSMDB1U10VM0603
C365
M741051M
<G>CSMDB1U10VM0603
C366
M741042K
<G>C SMD B 0.1U 16V K 060
C381
M741042K
<G>C SMD B 0.1U 16V K 060
C382
M701060M
<G>C SMD B 10U 6.3V M 080
C383
M741042K
<G>C SMD B 0.1U 16V K 060
C384
M741051M
<G>CSMDB1U10VM0603
C386
M741042K
<G>C SMD B 0.1U 16V K 060
C395
M741051M
<G>CSMDB1U10VM0603
C3E1
M741042K
<G>C SMD B 0.1U 16V K 060
C3E2
M741042K
<G>C SMD B 0.1U 16V K 060
C3E3
M741042K
<G>C SMD B 0.1U 16V K 060
C3E4
M701060M
<G>C SMD B 10U 6.3V M 080
C401
M7415057
<G>C SMD CH 15P 50V J 060
C402
M7415057
<G>C SMD CH 15P 50V J 060
C403
M741042K
<G>C SMD B 0.1U 16V K 060
C407
M741042K
<G>C SMD B 0.1U 16V K 060
8-59

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C408
M741042K
<G>C SMD B 0.1U 16V K 060
C409
M741042K
<G>C SMD B 0.1U 16V K 060
C410
M741042K
<G>C SMD B 0.1U 16V K 060
C411A
M741025K
<G>C SMD B 1000P 50V K
C411B
M7447323
<G>C SMD X7R 0.047U 16V K
C411G
M7447323
<G>C SMD X7R 0.047U 16V K
C411R
M7447323
<G>C SMD X7R 0.047U 16V K
C412B
M7447323
<G>C SMD X7R 0.047U 16V K
C412G
M7447323
<G>C SMD X7R 0.047U 16V K
C412R
M7447323
<G>C SMD X7R 0.047U 16V K
C413A
M741025K
<G>C SMD B 1000P 50V K
C413B
M7447323
<G>C SMD X7R 0.047U 16V K
C413G
M7447323
<G>C SMD X7R 0.047U 16V K
C413R
M7447323
<G>C SMD X7R 0.047U 16V K
C414B
M7447323
<G>C SMD X7R 0.047U 16V K
C414G
M7447323
<G>C SMD X7R 0.047U 16V K
C414R
M7447323
<G>C SMD X7R 0.047U 16V K
C415
M7433052
<G>C SMD C0G 33P 50V J 06
C416
M7433052
<G>C SMD C0G 33P 50V J 06
C417
M7447052
<G>C SMD C0G 47P 50V J 06
C418
M7447052
<G>C SMD C0G 47P 50V J 06
C421
M741042K
<G>C SMD B 0.1U 16V K 060
C431
M741042K
<G>C SMD B 0.1U 16V K 060
C433
M741042K
<G>C SMD B 0.1U 16V K 060
C435
M741042K
<G>C SMD B 0.1U 16V K 060
C436
M741042K
<G>C SMD B 0.1U 16V K 060
C441
M741042K
<G>C SMD B 0.1U 16V K 060
C442
M741042K
<G>C SMD B 0.1U 16V K 060
C445
M741042K
<G>C SMD B 0.1U 16V K 060
C446
M741042K
<G>C SMD B 0.1U 16V K 060
C447
M741042K
<G>C SMD B 0.1U 16V K 060
C448
M741042K
<G>C SMD B 0.1U 16V K 060
C451
M741042K
<G>C SMD B 0.1U 16V K 060
C452
M741042K
<G>C SMD B 0.1U 16V K 060
C461
M741042K
<G>C SMD B 0.1U 16V K 060
C462
M741042K
<G>C SMD B 0.1U 16V K 060
C463
M741042K
<G>C SMD B 0.1U 16V K 060
C464
M741042K
<G>C SMD B 0.1U 16V K 060
C471
M741042K
<G>C SMD B 0.1U 16V K 060
C472
M741042K
<G>C SMD B 0.1U 16V K 060
C473
M701060M
<G>C SMD B 10U 6.3V M 080
C481
M701060M
<G>C SMD B 10U 6.3V M 080
C481A
M701060M
<G>C SMD B 10U 6.3V M 080
C482
M741051M
<G>CSMDB1U10VM0603
C483
M741051M
<G>CSMDB1U10VM0603
8-60

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C484
M741051M
<G>CSMDB1U10VM0603
C487
M741042K
<G>C SMD B 0.1U 16V K 060
C488
M741042K
<G>C SMD B 0.1U 16V K 060
C489
M741042K
<G>C SMD B 0.1U 16V K 060
C491
M741042K
<G>C SMD B 0.1U 16V K 060
C492
M741042K
<G>C SMD B 0.1U 16V K 060
C611
M741042K
<G>C SMD B 0.1U 16V K 060
C612
M741042K
<G>C SMD B 0.1U 16V K 060
C621
M701060M
<G>C SMD B 10U 6.3V M 080
C622
M741042K
<G>C SMD B 0.1U 16V K 060
C623
M741042K
<G>C SMD B 0.1U 16V K 060
C624
M741042K
<G>C SMD B 0.1U 16V K 060
C625
M741042K
<G>C SMD B 0.1U 16V K 060
C631
M701060M
<G>C SMD B 10U 6.3V M 080
C632
M741042K
<G>C SMD B 0.1U 16V K 060
C633
M741042K
<G>C SMD B 0.1U 16V K 060
C634
M741042K
<G>C SMD B 0.1U 16V K 060
C635
M741042K
<G>C SMD B 0.1U 16V K 060
C636
M741042K
<G>C SMD B 0.1U 16V K 060
C637
M741042K
<G>C SMD B 0.1U 16V K 060
C638
M741042K
<G>C SMD B 0.1U 16V K 060
C639
M741042K
<G>C SMD B 0.1U 16V K 060
C701
G2Y00780
<G>C ELE85 1F 5.5V N A
C702
M741042K
<G>C SMD B 0.1U 16V K 060
C703
M741042K
<G>C SMD B 0.1U 16V K 060
C704
M741042K
<G>C SMD B 0.1U 16V K 060
C705
M741051M
<G>CSMDB1U10VM0603
C810
M741042K
<G>C SMD B 0.1U 16V K 060
C820
M741042K
<G>C SMD B 0.1U 16V K 060
C851
M741042K
<G>C SMD B 0.1U 16V K 060
C852
M741042K
<G>C SMD B 0.1U 16V K 060
C853
M741042K
<G>C SMD B 0.1U 16V K 060
C854
M741042K
<G>C SMD B 0.1U 16V K 060
8-61

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi-BK(B)
(For Europe)
SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
*** ICS ***
IC100
E1A13091
<G>IC SMD UPD70F3261YGC-8
IC171
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC172
E1A11651
<G>IC SMD 24LC256T-I/SNG
IC183
E1A13171
<G>IC SMD XC6108N33AMR RE
IC1H1
E1A13171
<G>IC SMD XC6108N33AMR RE
IC211
E1A13081
<G>IC SMD XC9223B081AR RE
IC221
E1A13081
<G>IC SMD XC9223B081AR RE
IC231
E1A13081
<G>IC SMD XC9223B081AR RE
IC241
E1A13121
<G>IC SMD LT1961EMS8E#TRP
IC291
E1A10951
<G>IC SMD NJM2870F18 REGU
IC2A1
E1A10141
<G>IC SMD NJM2870F33 REGU
IC361
E1A10131
<G>IC SMD NJM319V LINEAR
IC381
E1A10131
<G>IC SMD NJM319V LINEAR
IC3E1
E1A11071
<G>IC SMD TA76431F
IC3E2
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC3E3
E1A10751
<G>IC SMD NC7WZ14P6X_NL
IC401
E1A13151
<G>IC SMD NDS0001B-LF CAV
IC601
E1A13101
<G>IC SMD K4D263238G-VC36
IC701
E1A12621
<G>IC SMD RTC8564JE
IC702
E1A11771
<G>IC SMD TCN75-3 .3MUA713
IC704
E1A13181
<G>IC SMD ADXL322JCP-REEL
IC851
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC852
E1A10211
<G>IC SMD BU9882F-WE2 MOS
IC853
E1A10821
<G>IC SMD X9116WM8Z-2 .7T1
IC854
E1A13111
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
E2A00281
<G>TR SMD 2SA1037AK F T14
Q152
E2A00281
<G>TR SMD 2SA1037AK F T14
Q153
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F1
E3K00051
<G>FET SMD CPH6311-TL -E
Q1F2
E2A00201
<G>TR SMD DTA144WKAT146 P
Q1F3
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F4
E2A00061
<G>TR SMD DTC144EKAT146 N
Q1F5
E2A00281
<G>TR SMD 2SA1037AK F T14
Q1F6
E2A00251
<G>TR SMD 2SC2412K F T146
Q1F7
E2A00061
<G>TR SMD DTC144EKAT146 N
Q251
E3K00051
<G>FET SMD CPH6311-TL -E
Q252
E2A00061
<G>TR SMD DTC144EKAT146 N
8-62

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
Q261
E3K00011
<G>FET SMD 2SK3018 T106
Q262
E2A00061
<G>TR SMD DTC144EKAT146 N
Q263
E3K00051
<G>FET SMD CPH6311-TL -E
Q264
E2A00061
<G>TR SMD DTC144EKAT146 N
Q341B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q341R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q342B
E2A00071
<G>TR SMD DTA144EKAT146
Q342G
E2A00071
<G>TR SMD DTA144EKAT146
Q342R
E2A00071
<G>TR SMD DTA144EKAT146
Q34K
E3K00051
<G>FET SMD CPH6311-TL -E
Q34L
E2A00061
<G>TR SMD DTC144EKAT146 N
Q34M
E2A00061
<G>TR SMD DTC144EKAT146 N
Q351B
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351G
E2A00141
<G>TR SMD 2SC5084-O NPN
Q351R
E2A00141
<G>TR SMD 2SC5084-O NPN
Q352B
E2A00071
<G>TR SMD DTA144EKAT146
Q352G
E2A00071
<G>TR SMD DTA144EKAT146
Q352R
E2A00071
<G>TR SMD DTA144EKAT146
Q361
E3K00181
<G>FET SMD 2SK360-E
Q362
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q381
E3K00181
<G>FET SMD 2SK360-E
Q382
E2A00181
<G>TR SMD 2SA1764-TB PNP
Q3E1
E2A00061
<G>TR SMD DTC144EKAT146 N
Q701
E3K00011
<G>FET SMD 2SK3018 T106
Q702
E3K00011
<G>FET SMD 2SK3018 T106
Q821
E2A00281
<G>TR SMD 2SA1037AK F T14
Q851
E3K00011
<G>FET SMD 2SK3018 T106
Q852
E3K00011
<G>FET SMD 2SK3018 T106
Q853
E2A00061
<G>TR SMD DTC144EKAT146 N
Q854
E3K00011
<G>FET SMD 2SK3018 T106
Q855
E2A00251
<G>TR SMD 2SC2412K F T146
Q856
E2A00061
<G>TR SMD DTC144EKAT146 N
Q857
E2A00061
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
E4K00251
<G>DI SMD 1SS355 F TE-17
D162
E4K00251
<G>DI SMD 1SS355 F TE-17
D163
E4K00251
<G>DI SMD 1SS355 F TE-17
D164
E4K00251
<G>DI SMD 1SS355 F TE-17
D165
E4K00251
<G>DI SMD 1SS355 F TE-17
D166
E4K00251
<G>DI SMD 1SS355 F TE-17
D167
E4K00251
<G>DI SMD 1SS355 F TE-17
D168
E4K00261
<G>DI SMD DAN217 F T146
D183
E4K00251
<G>DI SMD 1SS355 F TE-17
8-63

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
D1F1
E4K00271
<G>DI SMD RB495DT146
D1F2
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F3
E4K00251
<G>DI SMD 1SS355 F TE-17
D1F4
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H1
E4K00251
<G>DI SMD 1SS355 F TE-17
D1H2
E4K00251
<G>DI SMD 1SS355 F TE-17
D241
E4K00441
<G>DI SMD RB160M-30TR
D290
E4K00441
<G>DI SMD RB160M-30TR
D311
E4K00261
<G>DI SMD DAN217 F T146
D312
E4K00261
<G>DI SMD DAN217 F T146
D313
E4K00261
<G>DI SMD DAN217 F T146
D314
E4K00261
<G>DI SMD DAN217 F T146
D315
E4K00261
<G>DI SMD DAN217 F T146
D316
E4K00261
<G>DI SMD DAN217 F T146
D317
E4K00261
<G>DI SMD DAN217 F T146
D318
E4K00261
<G>DI SMD DAN217 F T146
D320A
E4K00251
<G>DI SMD 1SS355 F TE-17
D320B
E4K00261
<G>DI SMD DAN217 F T146
D320G
E4K00261
<G>DI SMD DAN217 F T146
D320R
E4K00261
<G>DI SMD DAN217 F T146
D321
E4K00261
<G>DI SMD DAN217 F T146
D322
E4K00261
<G>DI SMD DAN217 F T146
D323
E4K00261
<G>DI SMD DAN217 F T146
D324
E4K00261
<G>DI SMD DAN217 F T146
D325
E4K00261
<G>DI SMD DAN217 F T146
D326
E4K00261
<G>DI SMD DAN217 F T146
D327
E4K00261
<G>DI SMD DAN217 F T146
D328
E4K00261
<G>DI SMD DAN217 F T146
D330A
E4K00251
<G>DI SMD 1SS355 F TE-17
D330B
E4K00261
<G>DI SMD DAN217 F T146
D330G
E4K00261
<G>DI SMD DAN217 F T146
D330R
E4K00261
<G>DI SMD DAN217 F T146
D341B
E4K00011
<G>DI SMD 1SS356TW11
D341G
E4K00011
<G>DI SMD 1SS356TW11
D341R
E4K00011
<G>DI SMD 1SS356TW11
D351B
E4K00011
<G>DI SMD 1SS356TW11
D351G
E4K00011
<G>DI SMD 1SS356TW11
D351R
E4K00011
<G>DI SMD 1SS356TW11
D820
E4K00261
<G>DI SMD DAN217 F T146
D821
E4K00271
<G>DI SMD RB495DT146
D831
E4K00271
<G>DI SMD RB495DT146
ZD181
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD183
E6D40562
<G>ZD SMD UDZS5.6BTE-17
ZD311
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD312
E6D40362
<G>ZD SMD UDZS3.6BTE-17
8-64

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
ZD321
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
ZD322
E6D40362
<G>ZD SMD UDZS3.6BTE-17
ZD331
E4K00041
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
J8100541
<G>U INVERT L205GR
MAIN1
AM0GR1ML
<G>MAIN INSERT ASSY ROHS
POWER1
J8100551
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
H4011811
<G>L SMD BEAD BK1608LM252
B103
H4011811
<G>L SMD BEAD BK1608LM252
B151
H4011811
<G>L SMD BEAD BK1608LM252
B152
H4011811
<G>L SMD BEAD BK1608LM252
B153
H4011811
<G>L SMD BEAD BK1608LM252
B161
H4011811
<G>L SMD BEAD BK1608LM252
B162
H4011811
<G>L SMD BEAD BK1608LM252
B163
H4011811
<G>L SMD BEAD BK1608LM252
B164
H4011811
<G>L SMD BEAD BK1608LM252
B165
H4011811
<G>L SMD BEAD BK1608LM252
B166
H4011811
<G>L SMD BEAD BK1608LM252
B167
H4011811
<G>L SMD BEAD BK1608LM252
B168
H4011811
<G>L SMD BEAD BK1608LM252
B169
H4011811
<G>L SMD BEAD BK1608LM252
B1F1
H4019281
<G>L SMD BEAD FBMH3216HM5
B201
H4019281
<G>L SMD BEAD FBMH3216HM5
B211
H4019281
<G>L SMD BEAD FBMH3216HM5
B221
H4019281
<G>L SMD BEAD FBMH3216HM5
B231
H4019281
<G>L SMD BEAD FBMH3216HM5
B261
H4019281
<G>L SMD BEAD FBMH3216HM5
B291
H4011811
<G>L SMD BEAD BK1608LM252
B2A1
H4011811
<G>L SMD BEAD BK1608LM252
B361
H4020011
<G>L SMD BEAD BKP1608HS33
B362
H4020011
<G>L SMD BEAD BKP1608HS33
B381
H4020011
<G>L SMD BEAD BKP1608HS33
B382
H4020011
<G>L SMD BEAD BKP1608HS33
B3E1
H4020011
<G>L SMD BEAD BKP1608HS33
B3E2
H4020011
<G>L SMD BEAD BKP1608HS33
B3E3
H4020011
<G>L SMD BEAD BKP1608HS33
B401
H4011811
<G>L SMD BEAD BK1608LM252
B402
H4011811
<G>L SMD BEAD BK1608LM252
B431
H4011681
<G>L SMD BEAD BK1608HS601
B433
H4011681
<G>L SMD BEAD BK1608HS601
B435
H4011811
<G>L SMD BEAD BK1608LM252
B436
H4011811
<G>L SMD BEAD BK1608LM252
8-65

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
B441
H4011681
<G>L SMD BEAD BK1608HS601
B445
H4011811
<G>L SMD BEAD BK1608LM252
B446
H4011811
<G>L SMD BEAD BK1608LM252
B447
H4011811
<G>L SMD BEAD BK1608LM252
B448
H4011811
<G>L SMD BEAD BK1608LM252
B451
H4011681
<G>L SMD BEAD BK1608HS601
B452
H4011811
<G>L SMD BEAD BK1608LM252
B461
H4011681
<G>L SMD BEAD BK1608HS601
B471
H4011681
<G>L SMD BEAD BK1608HS601
B481
H4019281
<G>L SMD BEAD FBMH3216HM5
B487
H4011811
<G>L SMD BEAD BK1608LM252
B488
H4011811
<G>L SMD BEAD BK1608LM252
B489
H4011811
<G>L SMD BEAD BK1608LM252
B621
H4019281
<G>L SMD BEAD FBMH3216HM5
B631
H4019281
<G>L SMD BEAD FBMH3216HM5
B704
H4011811
<G>L SMD BEAD BK1608LM252
B853
H4020011
<G>L SMD BEAD BKP1608HS33
FL218
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL225
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL233
H1B00207
<G>L SMD NFE31PT222Z1E9L
FL551
H1B00207
<G>L SMD NFE31PT222Z1E9L
L211
H1B00169
<G>L SMD SLF7030T-100M1R3
L221
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L231
H1B01403
<G>L SMD CHOKE 4.7UH OPS3
L241
H1B00169
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
R5010561
<G>CABLE VIDEO BLK DVID-D
CBL2
R5010551
<G>CABLE VIDEO BLK DVIA-D
CBL3
R7031051
<G>PW CORD EUR 2M BLK I-S
CBL4
R7041051
<G>PW CORD UK 2.0M R-PLUG
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
R3201971
<G>WIRE CC31P/8P 1516#30L
SWBD1
J8100611
<G>U FPC SW ASSY BLK LCD1
WIRE1
R3201941
<G>WIRE CC13P/8P5P 1007#2
WIRE2
R3201951
<G>WIRE CC9P 1007#26L100
X100
E82K0101
<G>OSC SMD CSTCR4M91G55-R
X401
E81K0201
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
KL0WB2WL
<G>SKD BACK ASSY LCD2090U
COVER1
1A701151
<G>COVER OUTER BK
FRONT1
1K108561
<G>BEZEL L205GR BK
SCR01
1D301051
<G>SC CBIMS3X10X3K
SCR02
1D000901
<G>SC #2CPISSX3X6X3K
8-66

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
SCR03
1D300831
<G>BM 3X5.7 BLACK-NI
SCR04
1D301031
<G>P4X6+SPW+WAS MC(NI)
SCR05
1D000831
<G>SC #2CPISSX3X6X16B
SCR06
1D301041
<G>SC CBIMS3X6X3G
SCR07
1D000121
<G>SCREW CUP 3X8X15BF
SCR08
1D300201
<G>SCR 4#-40TX4.8HLX4HLX5
STAND1
1A003321
<G>STAND UNIT BK
*** PRINTED & PACKING MATERIALS ***
CTN1
1C205671
<G>CARTON BOX L205GR WHA
CTN2
1C203011
<G>CARTON SHEET
EPS1
1C401991
<G>FILLER T L205GR
EPS2
1C402001
<G>FILLER B L205GR
LBL1
1E004861
<G>LABEL RATING L205GR BK
MANU1
1E504751
<G>MANUAL ASSY LCD2090UXI
MANU2
1E802491
<G>SHEET SETUP L205GR B
MANU3
1E800231
<G>CAUTION SHEET FOR 15
PE1
1C700522
<G>PACKING BAG
PE2
1C700741
<G>BAG POLYETHYLENE 170X9
PE3
1C700251
<G>PE BAG 230X320
*** RESISTORS ***
B281
F7110000
<G>R SMD METAL 1/4W 0 J 1
B282
F7110000
<G>R SMD METAL 1/4W 0 J 1
B2E1
F7010000
<G>R SMD METAL 1/10W 0 J
B320B
F7010000
<G>R SMD METAL 1/10W 0 J
B320G
F7010000
<G>R SMD METAL 1/10W 0 J
B320R
F7010000
<G>R SMD METAL 1/10W 0 J
B330B
F7010000
<G>R SMD METAL 1/10W 0 J
B330G
F7010000
<G>R SMD METAL 1/10W 0 J
B330R
F7010000
<G>R SMD METAL 1/10W 0 J
B360
F7010000
<G>R SMD METAL 1/10W 0 J
F281
B7015021
<G>R SMD FUSE MINISMDC150
MR103
F9221013
<G>R SMD NET 1/16W 100 J
MR104
F9221013
<G>R SMD NET 1/16W 100 J
MR105
F9221013
<G>R SMD NET 1/16W 100 J
MR121
F9221013
<G>R SMD NET 1/16W 100 J
MR122
F9221013
<G>R SMD NET 1/16W 100 J
MR151
F9221033
<G>R SMD NET 1/16W 10K J
MR152
F9221033
<G>R SMD NET 1/16W 10K J
MR401
F9223303
<G>R SMD NET 1/16W 33 J (
MR402
F9223303
<G>R SMD NET 1/16W 33 J (
MR403
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR404
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR405
F9220003
<G>R SMD NET 1/16W 0 J 8P
8-67

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
MR406
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR407
F9220003
<G>R SMD NET 1/16W 0 J 8P
MR450H
F9223303
<G>R SMD NET 1/16W 33 J (
MR450L
F9223303
<G>R SMD NET 1/16W 33 J (
MR451H
F9223303
<G>R SMD NET 1/16W 33 J (
MR451L
F9223303
<G>R SMD NET 1/16W 33 J (
MR452H
F9223303
<G>R SMD NET 1/16W 33 J (
MR452L
F9223303
<G>R SMD NET 1/16W 33 J (
MR453H
F9223303
<G>R SMD NET 1/16W 33 J (
MR453L
F9223303
<G>R SMD NET 1/16W 33 J (
MR454
F9223303
<G>R SMD NET 1/16W 33 J (
MR455
F9223303
<G>R SMD NET 1/16W 33 J (
MR456
F9223303
<G>R SMD NET 1/16W 33 J (
R100
F7010105
<G>R SMD METAL 1/10W 1.0M
R102
F7010103
<G>R SMD METAL 1/10W 10K
R103
F7010103
<G>R SMD METAL 1/10W 10K
R104
F7010330
<G>R SMD METAL 1/10W 33 J
R105
F7010103
<G>R SMD METAL 1/10W 10K
R106
F7010330
<G>R SMD METAL 1/10W 33 J
R107
F7010330
<G>R SMD METAL 1/10W 33 J
R108
F7010330
<G>R SMD METAL 1/10W 33 J
R109
F7010330
<G>R SMD METAL 1/10W 33 J
R110
F7010330
<G>R SMD METAL 1/10W 33 J
R111
F7010330
<G>R SMD METAL 1/10W 33 J
R112
F7010330
<G>R SMD METAL 1/10W 33 J
R113
F7010330
<G>R SMD METAL 1/10W 33 J
R114
F7010330
<G>R SMD METAL 1/10W 33 J
R115
F7010223
<G>R SMD METAL 1/10W 22K
R116
F7010473
<G>R SMD METAL 1/10W 47K
R117
F7010473
<G>R SMD METAL 1/10W 47K
R121
F7010102
<G>R SMD METAL 1/10W 1.0K
R122
F7010101
<G>R SMD METAL 1/10W 100
R123
F7010101
<G>R SMD METAL 1/10W 100
R124
F7010101
<G>R SMD METAL 1/10W 100
R125
F7010101
<G>R SMD METAL 1/10W 100
R126
F7010330
<G>R SMD METAL 1/10W 33 J
R128
F7010330
<G>R SMD METAL 1/10W 33 J
R129
F7010330
<G>R SMD METAL 1/10W 33 J
R131
F7010330
<G>R SMD METAL 1/10W 33 J
R132
F7010330
<G>R SMD METAL 1/10W 33 J
R133
F7010330
<G>R SMD METAL 1/10W 33 J
R134
F7010330
<G>R SMD METAL 1/10W 33 J
R135
F7010330
<G>R SMD METAL 1/10W 33 J
R136
F7010330
<G>R SMD METAL 1/10W 33 J
R137
F7010330
<G>R SMD METAL 1/10W 33 J
8-68

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R138
F7010330
<G>R SMD METAL 1/10W 33 J
R140
F7010000
<G>R SMD METAL 1/10W 0 J
R141
F7010000
<G>R SMD METAL 1/10W 0 J
R142
F7010000
<G>R SMD METAL 1/10W 0 J
R143
F7010101
<G>R SMD METAL 1/10W 100
R144
F7010104
<G>R SMD METAL 1/10W 100K
R146
F7010104
<G>R SMD METAL 1/10W 100K
R148
F7010104
<G>R SMD METAL 1/10W 100K
R149
F7010000
<G>R SMD METAL 1/10W 0 J
R14A
F7010104
<G>R SMD METAL 1/10W 100K
R151
F8016800
<G>R SMD METAL 1/10W 680
R152
F8016800
<G>R SMD METAL 1/10W 680
R153
F7010182
<G>R SMD METAL 1/10W 1.8K
R154
F7010182
<G>R SMD METAL 1/10W 1.8K
R155
F7010682
<G>R SMD METAL 1/10W 6.8K
R156
F7010682
<G>R SMD METAL 1/10W 6.8K
R157
F7010473
<G>R SMD METAL 1/10W 47K
R158
F7010103
<G>R SMD METAL 1/10W 10K
R159
F7010101
<G>R SMD METAL 1/10W 100
R160
F7010101
<G>R SMD METAL 1/10W 100
R161
F7100102
<G>R SMD METAL 1/8W 1.0K
R162
F7100102
<G>R SMD METAL 1/8W 1.0K
R163
F7100102
<G>R SMD METAL 1/8W 1.0K
R164
F7100102
<G>R SMD METAL 1/8W 1.0K
R165
F7100102
<G>R SMD METAL 1/8W 1.0K
R166
F7100102
<G>R SMD METAL 1/8W 1.0K
R167
F7100102
<G>R SMD METAL 1/8W 1.0K
R168
F7100102
<G>R SMD METAL 1/8W 1.0K
R169
F7010334
<G>R SMD METAL 1/10W 330K
R171
F7010103
<G>R SMD METAL 1/10W 10K
R172
F7010103
<G>R SMD METAL 1/10W 10K
R184
F8013903
<G>R SMD METAL 1/10W 390K
R185
F8012203
<G>R SMD METAL 1/10W 220K
R186
F7010104
<G>R SMD METAL 1/10W 100K
R187
F8011000
<G>R SMD METAL 1/10W 100
R188
F7010182
<G>R SMD METAL 1/10W 1.8K
R189
F7010682
<G>R SMD METAL 1/10W 6.8K
R191
F7010103
<G>R SMD METAL 1/10W 10K
R193
F7010103
<G>R SMD METAL 1/10W 10K
R195
F7010103
<G>R SMD METAL 1/10W 10K
R1F1
F7010102
<G>R SMD METAL 1/10W 1.0K
R1F2
F7010103
<G>R SMD METAL 1/10W 10K
R1F3
F7010223
<G>R SMD METAL 1/10W 22K
R1F4
F7010103
<G>R SMD METAL 1/10W 10K
R1F5
F7010152
<G>R SMD METAL 1/10W 1.5K
8-69

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R1F6
F7010103
<G>R SMD METAL 1/10W 10K
R1F7
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F8
F7010272
<G>R SMD METAL 1/10W 2.7K
R1F9
F7010560
<G>R SMD METAL 1/10W 56 J
R1H1
F7010824
<G>R SMD METAL 1/10W 820K
R1H2
F7010103
<G>R SMD METAL 1/10W 10K
R1H3
F7010104
<G>R SMD METAL 1/10W 100K
R1H4
F7010102
<G>R SMD METAL 1/10W 1.0K
R1H5
F8012202
<G>R SMD METAL 1/10W 22K
R1H6
F8011503
<G>R SMD METAL 1/10W 150K
R1H7
F7010104
<G>R SMD METAL 1/10W 100K
R1H8
F7010102
<G>R SMD METAL 1/10W 1.0K
R201
F7110000
<G>R SMD METAL 1/4W 0 J 1
R203M
F7010000
<G>R SMD METAL 1/10W 0 J
R203N
F7010000
<G>R SMD METAL 1/10W 0 J
R20UX
F7010000
<G>R SMD METAL 1/10W 0 J
R211
F7010000
<G>R SMD METAL 1/10W 0 J
R212
F8011503
<G>R SMD METAL 1/10W 150K
R213
F8011503
<G>R SMD METAL 1/10W 150K
R214
F8012203
<G>R SMD METAL 1/10W 220K
R215
F8011003
<G>R SMD METAL 1/10W 100K
R216
F8011003
<G>R SMD METAL 1/10W 100K
R217
F7010000
<G>R SMD METAL 1/10W 0 J
R221
F7010000
<G>R SMD METAL 1/10W 0 J
R222
F7010000
<G>R SMD METAL 1/10W 0 J
R223
F8015103
<G>R SMD METAL 1/10W 510K
R224
F8012403
<G>R SMD METAL 1/10W 240K
R225
F8011003
<G>R SMD METAL 1/10W 100K
R226
F8015602
<G>R SMD METAL 1/10W 56K
R231
F7010000
<G>R SMD METAL 1/10W 0 J
R232
F7010000
<G>R SMD METAL 1/10W 0 J
R233
F8014703
<G>R SMD METAL 1/10W 470K
R234
F8011503
<G>R SMD METAL 1/10W 150K
R235
F8011503
<G>R SMD METAL 1/10W 150K
R236
F8015602
<G>R SMD METAL 1/10W 56K
R241
F8013903
<G>R SMD METAL 1/10W 390K
R242
F8015102
<G>R SMD METAL 1/10W 51K
R243M
F7010000
<G>R SMD METAL 1/10W 0 J
R243N
F7010000
<G>R SMD METAL 1/10W 0 J
R245
F7010103
<G>R SMD METAL 1/10W 10K
R246
F8012202
<G>R SMD METAL 1/10W 22K
R247
F8011203
<G>R SMD METAL 1/10W 120K
R248
F8011002
<G>R SMD METAL 1/10W 10K
R249
F7010000
<G>R SMD METAL 1/10W 0 J
R251
F7010333
<G>R SMD METAL 1/10W 33K
8-70

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R252
F7010104
<G>R SMD METAL 1/10W 100K
R261
F7310681
<G>R SMD METAL 3/4W 680 J
R262
F7310681
<G>R SMD METAL 3/4W 680 J
R263
F7010102
<G>R SMD METAL 1/10W 1.0K
R264
F7010103
<G>R SMD METAL 1/10W 10K
R265
F8011003
<G>R SMD METAL 1/10W 100K
R266
F8013302
<G>R SMD METAL 1/10W 33K
R267
F7010000
<G>R SMD METAL 1/10W 0 J
R268
F7010000
<G>R SMD METAL 1/10W 0 J
R269
F7010333
<G>R SMD METAL 1/10W 33K
R270
F7010000
<G>R SMD METAL 1/10W 0 J
R271
F7010101
<G>R SMD METAL 1/10W 100
R272
F7010101
<G>R SMD METAL 1/10W 100
R273
F7010101
<G>R SMD METAL 1/10W 100
R274
F7010105
<G>R SMD METAL 1/10W 1.0M
R291
F7010103
<G>R SMD METAL 1/10W 10K
R2A1
F7010103
<G>R SMD METAL 1/10W 10K
R312
F7010101
<G>R SMD METAL 1/10W 100
R313
F7010101
<G>R SMD METAL 1/10W 100
R314
F7010222
<G>R SMD METAL 1/10W 2.2K
R315N
F7010100
<G>R SMD METAL 1/10W 10 J
R315P
F7010100
<G>R SMD METAL 1/10W 10 J
R316N
F7010100
<G>R SMD METAL 1/10W 10 J
R316P
F7010100
<G>R SMD METAL 1/10W 10 J
R317N
F7010100
<G>R SMD METAL 1/10W 10 J
R317P
F7010100
<G>R SMD METAL 1/10W 10 J
R318N
F7010100
<G>R SMD METAL 1/10W 10 J
R318P
F7010100
<G>R SMD METAL 1/10W 10 J
R320E
F7010104
<G>R SMD METAL 1/10W 100K
R320H
F7010330
<G>R SMD METAL 1/10W 33 J
R320V
F7010330
<G>R SMD METAL 1/10W 33 J
R322
F7010101
<G>R SMD METAL 1/10W 100
R323
F7010101
<G>R SMD METAL 1/10W 100
R324
F7010222
<G>R SMD METAL 1/10W 2.2K
R325N
F7010100
<G>R SMD METAL 1/10W 10 J
R325P
F7010100
<G>R SMD METAL 1/10W 10 J
R326N
F7010100
<G>R SMD METAL 1/10W 10 J
R326P
F7010100
<G>R SMD METAL 1/10W 10 J
R327N
F7010100
<G>R SMD METAL 1/10W 10 J
R327P
F7010100
<G>R SMD METAL 1/10W 10 J
R328N
F7010100
<G>R SMD METAL 1/10W 10 J
R328P
F7010100
<G>R SMD METAL 1/10W 10 J
R329H
F7010222
<G>R SMD METAL 1/10W 2.2K
R329V
F7010222
<G>R SMD METAL 1/10W 2.2K
R330E
F7010104
<G>R SMD METAL 1/10W 100K
8-71

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R330H
F7010330
<G>R SMD METAL 1/10W 33 J
R330V
F7010330
<G>R SMD METAL 1/10W 33 J
R332
F7010101
<G>R SMD METAL 1/10W 100
R333
F7010101
<G>R SMD METAL 1/10W 100
R339H
F7010222
<G>R SMD METAL 1/10W 2.2K
R339V
F7010222
<G>R SMD METAL 1/10W 2.2K
R341A
F7010000
<G>R SMD METAL 1/10W 0 J
R341B
F8527509
<G>R SMD METAL 1/2W 75 F
R341G
F8527509
<G>R SMD METAL 1/2W 75 F
R341R
F8527509
<G>R SMD METAL 1/2W 75 F
R342B
F7010103
<G>R SMD METAL 1/10W 10K
R342G
F7010103
<G>R SMD METAL 1/10W 10K
R342R
F7010103
<G>R SMD METAL 1/10W 10K
R343B
F7010153
<G>R SMD METAL 1/10W 15K
R343G
F7010153
<G>R SMD METAL 1/10W 15K
R343R
F7010153
<G>R SMD METAL 1/10W 15K
R344B
F7010101
<G>R SMD METAL 1/10W 100
R344G
F7010101
<G>R SMD METAL 1/10W 100
R344R
F7010101
<G>R SMD METAL 1/10W 100
R345B
F7010331
<G>R SMD METAL 1/10W 330
R345G
F7010331
<G>R SMD METAL 1/10W 330
R345R
F7010331
<G>R SMD METAL 1/10W 330
R346B
F7010510
<G>R SMD METAL 1/10W 51 J
R346G
F7010510
<G>R SMD METAL 1/10W 51 J
R346R
F7010510
<G>R SMD METAL 1/10W 51 J
R347B
F7010102
<G>R SMD METAL 1/10W 1.0K
R347G
F7010102
<G>R SMD METAL 1/10W 1.0K
R347R
F7010102
<G>R SMD METAL 1/10W 1.0K
R348B
F7010473
<G>R SMD METAL 1/10W 47K
R348G
F7010473
<G>R SMD METAL 1/10W 47K
R348R
F7010473
<G>R SMD METAL 1/10W 47K
R349B
F7010000
<G>R SMD METAL 1/10W 0 J
R349G
F7010000
<G>R SMD METAL 1/10W 0 J
R349R
F7010000
<G>R SMD METAL 1/10W 0 J
R34K
F7010473
<G>R SMD METAL 1/10W 47K
R34L
F7010101
<G>R SMD METAL 1/10W 100
R351A
F7010000
<G>R SMD METAL 1/10W 0 J
R351B
F8527509
<G>R SMD METAL 1/2W 75 F
R351G
F8527509
<G>R SMD METAL 1/2W 75 F
R351R
F8527509
<G>R SMD METAL 1/2W 75 F
R352B
F7010103
<G>R SMD METAL 1/10W 10K
R352G
F7010103
<G>R SMD METAL 1/10W 10K
R352R
F7010103
<G>R SMD METAL 1/10W 10K
R353B
F7010153
<G>R SMD METAL 1/10W 15K
R353G
F7010153
<G>R SMD METAL 1/10W 15K
8-72

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R353R
F7010153
<G>R SMD METAL 1/10W 15K
R354B
F7010101
<G>R SMD METAL 1/10W 100
R354G
F7010101
<G>R SMD METAL 1/10W 100
R354R
F7010101
<G>R SMD METAL 1/10W 100
R355B
F7010331
<G>R SMD METAL 1/10W 330
R355G
F7010331
<G>R SMD METAL 1/10W 330
R355R
F7010331
<G>R SMD METAL 1/10W 330
R356B
F7010510
<G>R SMD METAL 1/10W 51 J
R356G
F7010510
<G>R SMD METAL 1/10W 51 J
R356R
F7010510
<G>R SMD METAL 1/10W 51 J
R357B
F7010102
<G>R SMD METAL 1/10W 1.0K
R357G
F7010102
<G>R SMD METAL 1/10W 1.0K
R357R
F7010102
<G>R SMD METAL 1/10W 1.0K
R358B
F7010473
<G>R SMD METAL 1/10W 47K
R358G
F7010473
<G>R SMD METAL 1/10W 47K
R358R
F7010473
<G>R SMD METAL 1/10W 47K
R359B
F7010000
<G>R SMD METAL 1/10W 0 J
R359G
F7010000
<G>R SMD METAL 1/10W 0 J
R359R
F7010000
<G>R SMD METAL 1/10W 0 J
R361
F7010104
<G>R SMD METAL 1/10W 100K
R362
F7010104
<G>R SMD METAL 1/10W 100K
R363
F7010102
<G>R SMD METAL 1/10W 1.0K
R364
F7010561
<G>R SMD METAL 1/10W 560
R365
F7010221
<G>R SMD METAL 1/10W 220
R366
F7010103
<G>R SMD METAL 1/10W 10K
R367
F7010223
<G>R SMD METAL 1/10W 22K
R368
F8011302
<G>R SMD METAL 1/10W 13K
R369
F7010101
<G>R SMD METAL 1/10W 100
R371
F7010332
<G>R SMD METAL 1/10W 3.3K
R372
F7010472
<G>R SMD METAL 1/10W 4.7K
R373
F7010471
<G>R SMD METAL 1/10W 470
R374
F7010330
<G>R SMD METAL 1/10W 33 J
R375
F8015601
<G>R SMD METAL 1/10W 5.6K
R376
F8011500
<G>R SMD METAL 1/10W 150
R377
F8013300
<G>R SMD METAL 1/10W 330
R378
F8012201
<G>R SMD METAL 1/10W 2.2K
R381
F7010104
<G>R SMD METAL 1/10W 100K
R382
F7010104
<G>R SMD METAL 1/10W 100K
R383
F7010102
<G>R SMD METAL 1/10W 1.0K
R384
F7010561
<G>R SMD METAL 1/10W 560
R385
F7010221
<G>R SMD METAL 1/10W 220
R386
F7010103
<G>R SMD METAL 1/10W 10K
R387
F7010223
<G>R SMD METAL 1/10W 22K
R389
F7010101
<G>R SMD METAL 1/10W 100
R391
F7010332
<G>R SMD METAL 1/10W 3.3K
8-73

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R392
F7010472
<G>R SMD METAL 1/10W 4.7K
R393
F7010471
<G>R SMD METAL 1/10W 470
R394
F7010330
<G>R SMD METAL 1/10W 33 J
R395
F8012701
<G>R SMD METAL 1/10W 2.7K
R396
F8015600
<G>R SMD METAL 1/10W 560
R397
F8011500
<G>R SMD METAL 1/10W 150
R398
F8011101
<G>R SMD METAL 1/10W 1.1K
R3E1
F7010471
<G>R SMD METAL 1/10W 470
R3E2
F7010330
<G>R SMD METAL 1/10W 33 J
R3E3
F7010330
<G>R SMD METAL 1/10W 33 J
R3E4
F7010330
<G>R SMD METAL 1/10W 33 J
R3E5
F7010330
<G>R SMD METAL 1/10W 33 J
R3E6
F8012201
<G>R SMD METAL 1/10W 2.2K
R3E7
F8016801
<G>R SMD METAL 1/10W 6.8K
R3E8
F8012202
<G>R SMD METAL 1/10W 22K
R401
F8013900
<G>R SMD METAL 1/10W 390
R411A
F7010471
<G>R SMD METAL 1/10W 470
R411B
F7010270
<G>R SMD METAL 1/10W 27 J
R411G
F7010270
<G>R SMD METAL 1/10W 27 J
R411H
F7010330
<G>R SMD METAL 1/10W 33 J
R411R
F7010270
<G>R SMD METAL 1/10W 27 J
R411V
F7010330
<G>R SMD METAL 1/10W 33 J
R412B
F7010220
<G>R SMD METAL 1/10W 22 J
R412G
F7010220
<G>R SMD METAL 1/10W 22 J
R412R
F7010220
<G>R SMD METAL 1/10W 22 J
R413A
F7010471
<G>R SMD METAL 1/10W 470
R413B
F7010270
<G>R SMD METAL 1/10W 27 J
R413G
F7010270
<G>R SMD METAL 1/10W 27 J
R413H
F7010330
<G>R SMD METAL 1/10W 33 J
R413R
F7010270
<G>R SMD METAL 1/10W 27 J
R413V
F7010330
<G>R SMD METAL 1/10W 33 J
R414B
F7010220
<G>R SMD METAL 1/10W 22 J
R414G
F7010220
<G>R SMD METAL 1/10W 22 J
R414R
F7010220
<G>R SMD METAL 1/10W 22 J
R415
F7010152
<G>R SMD METAL 1/10W 1.5K
R416
F7010152
<G>R SMD METAL 1/10W 1.5K
R417
F7010511
<G>R SMD METAL 1/10W 510
R418
F7010511
<G>R SMD METAL 1/10W 510
R421
F7010330
<G>R SMD METAL 1/10W 33 J
R422
F7010330
<G>R SMD METAL 1/10W 33 J
R423
F7010330
<G>R SMD METAL 1/10W 33 J
R424
F7010473
<G>R SMD METAL 1/10W 47K
R425
F7010473
<G>R SMD METAL 1/10W 47K
R426
F7010473
<G>R SMD METAL 1/10W 47K
R427
F7010000
<G>R SMD METAL 1/10W 0 J
8-74

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R428
F7010103
<G>R SMD METAL 1/10W 10K
R429
F7010103
<G>R SMD METAL 1/10W 10K
R431
F7010103
<G>R SMD METAL 1/10W 10K
R432
F7010103
<G>R SMD METAL 1/10W 10K
R433
F7010103
<G>R SMD METAL 1/10W 10K
R434
F7010330
<G>R SMD METAL 1/10W 33 J
R435
F7010330
<G>R SMD METAL 1/10W 33 J
R436
F7010330
<G>R SMD METAL 1/10W 33 J
R441N
F7010180
<G>R SMD METAL 1/10W 18 J
R441P
F7010180
<G>R SMD METAL 1/10W 18 J
R442
F7010330
<G>R SMD METAL 1/10W 33 J
R443
F7010330
<G>R SMD METAL 1/10W 33 J
R444
F7010330
<G>R SMD METAL 1/10W 33 J
R445
F7010330
<G>R SMD METAL 1/10W 33 J
R446
F7010330
<G>R SMD METAL 1/10W 33 J
R447
F7010330
<G>R SMD METAL 1/10W 33 J
R448
F7010330
<G>R SMD METAL 1/10W 33 J
R449
F7010330
<G>R SMD METAL 1/10W 33 J
R450
F7010330
<G>R SMD METAL 1/10W 33 J
R451
F7010330
<G>R SMD METAL 1/10W 33 J
R452
F7010330
<G>R SMD METAL 1/10W 33 J
R453
F7010330
<G>R SMD METAL 1/10W 33 J
R454
F7010330
<G>R SMD METAL 1/10W 33 J
R491
F8011001
<G>R SMD METAL 1/10W 1.0K
R492
F8011001
<G>R SMD METAL 1/10W 1.0K
R551
F7010562
<G>R SMD METAL 1/10W 5.6K
R601
F7010151
<G>R SMD METAL 1/10W 150
R602
F7010330
<G>R SMD METAL 1/10W 33 J
R603
F7010330
<G>R SMD METAL 1/10W 33 J
R604
F7010330
<G>R SMD METAL 1/10W 33 J
R605
F7010330
<G>R SMD METAL 1/10W 33 J
R611
F8011001
<G>R SMD METAL 1/10W 1.0K
R612
F8011001
<G>R SMD METAL 1/10W 1.0K
R701
F7010272
<G>R SMD METAL 1/10W 2.7K
R702
F7010272
<G>R SMD METAL 1/10W 2.7K
R703
F7010470
<G>R SMD METAL 1/10W 47 J
R704
F7010470
<G>R SMD METAL 1/10W 47 J
R705
F7010470
<G>R SMD METAL 1/10W 47 J
R706
B3Y00011
<G>R SMD METAL 1W 33 J 25
R707
F7010330
<G>R SMD METAL 1/10W 33 J
R708
F7010103
<G>R SMD METAL 1/10W 10K
R709
F7010103
<G>R SMD METAL 1/10W 10K
R710
F7010330
<G>R SMD METAL 1/10W 33 J
R711
F7010103
<G>R SMD METAL 1/10W 10K
R810
F7010103
<G>R SMD METAL 1/10W 10K
8-75

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
R811
B3Y00011
<G>R SMD METAL 1W 33 J 25
R812
F8015100
<G>R SMD METAL 1/10W 510
R821
B3Y00011
<G>R SMD METAL 1W 33 J 25
R822
F8015100
<G>R SMD METAL 1/10W 510
R823
F7010101
<G>R SMD METAL 1/10W 100
R824
F7010272
<G>R SMD METAL 1/10W 2.7K
R825
F7010473
<G>R SMD METAL 1/10W 47K
R826
F7010103
<G>R SMD METAL 1/10W 10K
R830
F7010103
<G>R SMD METAL 1/10W 10K
R831
B3Y00011
<G>R SMD METAL 1W 33 J 25
R851
F7010473
<G>R SMD METAL 1/10W 47K
R852
F7010273
<G>R SMD METAL 1/10W 27K
R853
F7010473
<G>R SMD METAL 1/10W 47K
R854
F7010473
<G>R SMD METAL 1/10W 47K
R855
F7010273
<G>R SMD METAL 1/10W 27K
R856
F7010000
<G>R SMD METAL 1/10W 0 J
R857
F7010000
<G>R SMD METAL 1/10W 0 J
R858
F7010562
<G>R SMD METAL 1/10W 5.6K
R859
F7010562
<G>R SMD METAL 1/10W 5.6K
R861
F7010473
<G>R SMD METAL 1/10W 47K
R862
F7010273
<G>R SMD METAL 1/10W 27K
R863
F7010473
<G>R SMD METAL 1/10W 47K
R864
F7010473
<G>R SMD METAL 1/10W 47K
R865
F7010473
<G>R SMD METAL 1/10W 47K
R866
F7010273
<G>R SMD METAL 1/10W 27K
R867
F7010473
<G>R SMD METAL 1/10W 47K
R868
F7010473
<G>R SMD METAL 1/10W 47K
R871
F7010000
<G>R SMD METAL 1/10W 0 J
R872
F8013302
<G>R SMD METAL 1/10W 33K
R873
F8013302
<G>R SMD METAL 1/10W 33K
R874
F8013302
<G>R SMD METAL 1/10W 33K
R875
F7010103
<G>R SMD METAL 1/10W 10K
R876
F7010000
<G>R SMD METAL 1/10W 0 J
R877
F7010473
<G>R SMD METAL 1/10W 47K
R878
F7010473
<G>R SMD METAL 1/10W 47K
R879
F7010562
<G>R SMD METAL 1/10W 5.6K
R881
F7010273
<G>R SMD METAL 1/10W 27K
R882
F7010273
<G>R SMD METAL 1/10W 27K
R883
F7010273
<G>R SMD METAL 1/10W 27K
R891
F7010473
<G>R SMD METAL 1/10W 47K
R892
F7010473
<G>R SMD METAL 1/10W 47K
R893
F7010473
<G>R SMD METAL 1/10W 47K
R894
F7010473
<G>R SMD METAL 1/10W 47K
R895
F7010473
<G>R SMD METAL 1/10W 47K
R896
F7010473
<G>R SMD METAL 1/10W 47K
8-76

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
*** CAPACITORS ***
C101
M741042K
<G>C SMD B 0.1U 16V K 060
C103
M741042K
<G>C SMD B 0.1U 16V K 060
C104
M741042K
<G>C SMD B 0.1U 16V K 060
C105
M741042K
<G>C SMD B 0.1U 16V K 060
C106
M704750S
<G>C SMD X5R 4.7U 6.3V K
C109
M741042K
<G>C SMD B 0.1U 16V K 060
C112
M701060M
<G>C SMD B 10U 6.3V M 080
C113
M741042K
<G>C SMD B 0.1U 16V K 060
C114
M741042K
<G>C SMD B 0.1U 16V K 060
C115
M741042K
<G>C SMD B 0.1U 16V K 060
C144
M741042K
<G>C SMD B 0.1U 16V K 060
C146
M741042K
<G>C SMD B 0.1U 16V K 060
C148
M741042K
<G>C SMD B 0.1U 16V K 060
C161
M741042K
<G>C SMD B 0.1U 16V K 060
C162
M741042K
<G>C SMD B 0.1U 16V K 060
C163
M741042K
<G>C SMD B 0.1U 16V K 060
C164
M741042K
<G>C SMD B 0.1U 16V K 060
C165
M741042K
<G>C SMD B 0.1U 16V K 060
C166
M741042K
<G>C SMD B 0.1U 16V K 060
C167
M741042K
<G>C SMD B 0.1U 16V K 060
C168
M741042K
<G>C SMD B 0.1U 16V K 060
C171
M741042K
<G>C SMD B 0.1U 16V K 060
C172
M741042K
<G>C SMD B 0.1U 16V K 060
C184
M7410353
<G>C SMD X7R 0.01U 50V K
C186
M741042K
<G>C SMD B 0.1U 16V K 060
C1F0
M701060M
<G>C SMD B 10U 6.3V M 080
C1F1
M701060M
<G>C SMD B 10U 6.3V M 080
C1F2
M704750S
<G>C SMD X5R 4.7U 6.3V K
C1F3
M741051M
<G>CSMDB1U10VM0603
C1F4
M7439157
<G>C SMD CH 390P 50V J 06
C1F5
M741042K
<G>C SMD B 0.1U 16V K 060
C1F6
M741042K
<G>C SMD B 0.1U 16V K 060
C1F7
M7410353
<G>C SMD X7R 0.01U 50V K
C211
M701060M
<G>C SMD B 10U 6.3V M 080
C212
M701060M
<G>C SMD B 10U 6.3V M 080
C213
M701060M
<G>C SMD B 10U 6.3V M 080
C214
M7418057
<G>C SMD CH 18P 50V J 060
C216
M741042K
<G>C SMD B 0.1U 16V K 060
C221
M701060M
<G>C SMD B 10U 6.3V M 080
C222
M701060M
<G>C SMD B 10U 6.3V M 080
C223
M701060M
<G>C SMD B 10U 6.3V M 080
C224
M7418057
<G>C SMD CH 18P 50V J 060
C226
M741042K
<G>C SMD B 0.1U 16V K 060
C231
M701060M
<G>C SMD B 10U 6.3V M 080
8-77

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C232
M701060M
<G>C SMD B 10U 6.3V M 080
C233
M701060M
<G>C SMD B 10U 6.3V M 080
C234
M7418057
<G>C SMD CH 18P 50V J 060
C236
M741042K
<G>C SMD B 0.1U 16V K 060
C241
M7010535
<G>C SMD X7R 1.0U 25V M 0
C242
M7210635
<G>C SMD X7R 10U 25V M 12
C243
M7210635
<G>C SMD X7R 10U 25V M 12
C244
M7410157
<G>C SMD CH 100P 50V J 06
C245
M7410353
<G>C SMD X7R 0.01U 50V K
C251
M7410439
<G>C SMD F 0.1U 25V Z 060
C261
M7410439
<G>C SMD F 0.1U 25V Z 060
C263
M7410439
<G>C SMD F 0.1U 25V Z 060
C264
M741042K
<G>C SMD B 0.1U 16V K 060
C265
M741042K
<G>C SMD B 0.1U 16V K 060
C266
M741042K
<G>C SMD B 0.1U 16V K 060
C271
M7410157
<G>C SMD CH 100P 50V J 06
C272
M7410157
<G>C SMD CH 100P 50V J 06
C273
M7410157
<G>C SMD CH 100P 50V J 06
C281
M7410157
<G>C SMD CH 100P 50V J 06
C282
M7410157
<G>C SMD CH 100P 50V J 06
C292
M701060M
<G>C SMD B 10U 6.3V M 080
C293
M701060M
<G>C SMD B 10U 6.3V M 080
C294
M741042K
<G>C SMD B 0.1U 16V K 060
C295
M741042K
<G>C SMD B 0.1U 16V K 060
C296
M701060M
<G>C SMD B 10U 6.3V M 080
C2A2
M701060M
<G>C SMD B 10U 6.3V M 080
C2A3
M701060M
<G>C SMD B 10U 6.3V M 080
C2A4
M741042K
<G>C SMD B 0.1U 16V K 060
C2A5
M741042K
<G>C SMD B 0.1U 16V K 060
C2A6
M701060M
<G>C SMD B 10U 6.3V M 080
C311
M741042K
<G>C SMD B 0.1U 16V K 060
C312
M741042K
<G>C SMD B 0.1U 16V K 060
C320A
M741042K
<G>C SMD B 0.1U 16V K 060
C320E
M741042K
<G>C SMD B 0.1U 16V K 060
C320V
M741025K
<G>C SMD B 1000P 50V K
C321
M741042K
<G>C SMD B 0.1U 16V K 060
C322
M741042K
<G>C SMD B 0.1U 16V K 060
C330A
M741042K
<G>C SMD B 0.1U 16V K 060
C330E
M741042K
<G>C SMD B 0.1U 16V K 060
C330V
M741025K
<G>C SMD B 1000P 50V K
C340
M701060M
<G>C SMD B 10U 6.3V M 080
C341A
M701060M
<G>C SMD B 10U 6.3V M 080
C341B
M701060M
<G>C SMD B 10U 6.3V M 080
C341G
M701060M
<G>C SMD B 10U 6.3V M 080
C341R
M701060M
<G>C SMD B 10U 6.3V M 080
8-78

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C342B
M741042K
<G>C SMD B 0.1U 16V K 060
C342G
M741042K
<G>C SMD B 0.1U 16V K 060
C342R
M741042K
<G>C SMD B 0.1U 16V K 060
C343B
M741042K
<G>C SMD B 0.1U 16V K 060
C343G
M741042K
<G>C SMD B 0.1U 16V K 060
C343R
M741042K
<G>C SMD B 0.1U 16V K 060
C344B
M7422052
<G>C SMD COG 22P 50V J 06
C344G
M7422052
<G>C SMD COG 22P 50V J 06
C344R
M7422052
<G>C SMD COG 22P 50V J 06
C34K
M741042K
<G>C SMD B 0.1U 16V K 060
C350
M701060M
<G>C SMD B 10U 6.3V M 080
C351A
M701060M
<G>C SMD B 10U 6.3V M 080
C351B
M701060M
<G>C SMD B 10U 6.3V M 080
C351G
M701060M
<G>C SMD B 10U 6.3V M 080
C351R
M701060M
<G>C SMD B 10U 6.3V M 080
C352B
M741042K
<G>C SMD B 0.1U 16V K 060
C352G
M741042K
<G>C SMD B 0.1U 16V K 060
C352R
M741042K
<G>C SMD B 0.1U 16V K 060
C353B
M741042K
<G>C SMD B 0.1U 16V K 060
C353G
M741042K
<G>C SMD B 0.1U 16V K 060
C353R
M741042K
<G>C SMD B 0.1U 16V K 060
C354B
M7422052
<G>C SMD COG 22P 50V J 06
C354G
M7422052
<G>C SMD COG 22P 50V J 06
C354R
M7422052
<G>C SMD COG 22P 50V J 06
C361
M741042K
<G>C SMD B 0.1U 16V K 060
C362
M701060M
<G>C SMD B 10U 6.3V M 080
C363
M741042K
<G>C SMD B 0.1U 16V K 060
C364
M741051M
<G>CSMDB1U10VM0603
C365
M741051M
<G>CSMDB1U10VM0603
C366
M741042K
<G>C SMD B 0.1U 16V K 060
C381
M741042K
<G>C SMD B 0.1U 16V K 060
C382
M701060M
<G>C SMD B 10U 6.3V M 080
C383
M741042K
<G>C SMD B 0.1U 16V K 060
C384
M741051M
<G>CSMDB1U10VM0603
C386
M741042K
<G>C SMD B 0.1U 16V K 060
C395
M741051M
<G>CSMDB1U10VM0603
C3E1
M741042K
<G>C SMD B 0.1U 16V K 060
C3E2
M741042K
<G>C SMD B 0.1U 16V K 060
C3E3
M741042K
<G>C SMD B 0.1U 16V K 060
C3E4
M701060M
<G>C SMD B 10U 6.3V M 080
C401
M7415057
<G>C SMD CH 15P 50V J 060
C402
M7415057
<G>C SMD CH 15P 50V J 060
C403
M741042K
<G>C SMD B 0.1U 16V K 060
C407
M741042K
<G>C SMD B 0.1U 16V K 060
C408
M741042K
<G>C SMD B 0.1U 16V K 060
8-79

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C409
M741042K
<G>C SMD B 0.1U 16V K 060
C410
M741042K
<G>C SMD B 0.1U 16V K 060
C411A
M741025K
<G>C SMD B 1000P 50V K
C411B
M7447323
<G>C SMD X7R 0.047U 16V K
C411G
M7447323
<G>C SMD X7R 0.047U 16V K
C411R
M7447323
<G>C SMD X7R 0.047U 16V K
C412B
M7447323
<G>C SMD X7R 0.047U 16V K
C412G
M7447323
<G>C SMD X7R 0.047U 16V K
C412R
M7447323
<G>C SMD X7R 0.047U 16V K
C413A
M741025K
<G>C SMD B 1000P 50V K
C413B
M7447323
<G>C SMD X7R 0.047U 16V K
C413G
M7447323
<G>C SMD X7R 0.047U 16V K
C413R
M7447323
<G>C SMD X7R 0.047U 16V K
C414B
M7447323
<G>C SMD X7R 0.047U 16V K
C414G
M7447323
<G>C SMD X7R 0.047U 16V K
C414R
M7447323
<G>C SMD X7R 0.047U 16V K
C415
M7433052
<G>C SMD C0G 33P 50V J 06
C416
M7433052
<G>C SMD C0G 33P 50V J 06
C417
M7447052
<G>C SMD C0G 47P 50V J 06
C418
M7447052
<G>C SMD C0G 47P 50V J 06
C421
M741042K
<G>C SMD B 0.1U 16V K 060
C431
M741042K
<G>C SMD B 0.1U 16V K 060
C433
M741042K
<G>C SMD B 0.1U 16V K 060
C435
M741042K
<G>C SMD B 0.1U 16V K 060
C436
M741042K
<G>C SMD B 0.1U 16V K 060
C441
M741042K
<G>C SMD B 0.1U 16V K 060
C442
M741042K
<G>C SMD B 0.1U 16V K 060
C445
M741042K
<G>C SMD B 0.1U 16V K 060
C446
M741042K
<G>C SMD B 0.1U 16V K 060
C447
M741042K
<G>C SMD B 0.1U 16V K 060
C448
M741042K
<G>C SMD B 0.1U 16V K 060
C451
M741042K
<G>C SMD B 0.1U 16V K 060
C452
M741042K
<G>C SMD B 0.1U 16V K 060
C461
M741042K
<G>C SMD B 0.1U 16V K 060
C462
M741042K
<G>C SMD B 0.1U 16V K 060
C463
M741042K
<G>C SMD B 0.1U 16V K 060
C464
M741042K
<G>C SMD B 0.1U 16V K 060
C471
M741042K
<G>C SMD B 0.1U 16V K 060
C472
M741042K
<G>C SMD B 0.1U 16V K 060
C473
M701060M
<G>C SMD B 10U 6.3V M 080
C481
M701060M
<G>C SMD B 10U 6.3V M 080
C481A
M701060M
<G>C SMD B 10U 6.3V M 080
C482
M741051M
<G>CSMDB1U10VM0603
C483
M741051M
<G>CSMDB1U10VM0603
C484
M741051M
<G>CSMDB1U10VM0603
8-80

SYMBOL
For Europe
(NPG Part Number)
DESCRIPTION
C487
M741042K
<G>C SMD B 0.1U 16V K 060
C488
M741042K
<G>C SMD B 0.1U 16V K 060
C489
M741042K
<G>C SMD B 0.1U 16V K 060
C491
M741042K
<G>C SMD B 0.1U 16V K 060
C492
M741042K
<G>C SMD B 0.1U 16V K 060
C611
M741042K
<G>C SMD B 0.1U 16V K 060
C612
M741042K
<G>C SMD B 0.1U 16V K 060
C621
M701060M
<G>C SMD B 10U 6.3V M 080
C622
M741042K
<G>C SMD B 0.1U 16V K 060
C623
M741042K
<G>C SMD B 0.1U 16V K 060
C624
M741042K
<G>C SMD B 0.1U 16V K 060
C625
M741042K
<G>C SMD B 0.1U 16V K 060
C631
M701060M
<G>C SMD B 10U 6.3V M 080
C632
M741042K
<G>C SMD B 0.1U 16V K 060
C633
M741042K
<G>C SMD B 0.1U 16V K 060
C634
M741042K
<G>C SMD B 0.1U 16V K 060
C635
M741042K
<G>C SMD B 0.1U 16V K 060
C636
M741042K
<G>C SMD B 0.1U 16V K 060
C637
M741042K
<G>C SMD B 0.1U 16V K 060
C638
M741042K
<G>C SMD B 0.1U 16V K 060
C639
M741042K
<G>C SMD B 0.1U 16V K 060
C701
G2Y00780
<G>C ELE85 1F 5.5V N A
C702
M741042K
<G>C SMD B 0.1U 16V K 060
C703
M741042K
<G>C SMD B 0.1U 16V K 060
C704
M741042K
<G>C SMD B 0.1U 16V K 060
C705
M741051M
<G>CSMDB1U10VM0603
C810
M741042K
<G>C SMD B 0.1U 16V K 060
C820
M741042K
<G>C SMD B 0.1U 16V K 060
C851
M741042K
<G>C SMD B 0.1U 16V K 060
C852
M741042K
<G>C SMD B 0.1U 16V K 060
C853
M741042K
<G>C SMD B 0.1U 16V K 060
C854
M741042K
<G>C SMD B 0.1U 16V K 060
8-81

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi(A)
(For Asia/Australia)
SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-82

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-83

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D290
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
8-84

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
8-85

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9485
<G>CABLE VIDEO GRY DVID-D
CBL2
79PQ9486
<G>CABLE VIDEO GRY DVIA-D
CBL3
79PQ9487
<G>CABLE VIDEO GRY DSUB-D
CBL4
79PQ8976
<G>PW CORD USA 2M GRY I-S
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9483
<G>U FPC SW ASSY WHT LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9551
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9488
<G>COVER OUTER WH
FRONT1
79PQ9538
<G>BEZEL L205GR WH
SCR01
79PQ9480
<G>SC CBIMS3X10X3G
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
8-86

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
STAND1
79PQ9531
<G>STAND UNIT WH
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9532
<G>LABEL RATING L205GR WH
MANU1
79PQ9458
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9460
<G>SHEET SETUP L205GR A
PE1
79PQ9456
<G>PACKING BAG
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9546
<G>BAG PE 175X260
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-87

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
8-88

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9158
<G>R SMD METAL 1/10W 100
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
8-89

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9415
<G>R SMD METAL 1/10W 220K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
8-90

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-91

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R341B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
8-92

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
8-93

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-94

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
8-95

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
8-96

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
8-97

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C251
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-98

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9433
<G>CSMDB1U10VM0603
C365
79PQ9433
<G>CSMDB1U10VM0603
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9433
<G>CSMDB1U10VM0603
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9433
<G>CSMDB1U10VM0603
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-99

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9433
<G>CSMDB1U10VM0603
C483
79PQ9433
<G>CSMDB1U10VM0603
C484
79PQ9433
<G>CSMDB1U10VM0603
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-100

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-101

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi-BK(A)
(For Asia/Australia)
SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-102

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-103

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
8-104

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
8-105

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9441
<G>CABLE VIDEO BLK DVID-D
CBL2
79PQ9440
<G>CABLE VIDEO BLK DVIA-D
CBL3
79PQ8979
<G>PW CORD USA 2M BLK I-S
CBL4
79PQ9545
<G>CABLE VIDEO BK DSUB-D
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9429
<G>U FPC SW ASSY BLK LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9471
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9049
<G>COVER OUTER BK
FRONT1
79PQ9461
<G>BEZEL L205GR BK
SCR01
79PQ9376
<G>SC CBIMS3X10X3K
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
STAND1
79PQ9452
<G>STAND UNIT BK
8-106

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9457
<G>LABEL RATING L205GR BK
MANU1
79PQ9458
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9460
<G>SHEET SETUP L205GR A
PE1
79PQ9035
<G>BAG PE 6LANG(270X370)
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9456
<G>PACKING BAG
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B290
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-107

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
8-108

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9159
<G>R SMD METAL 1/10W 130
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
8-109

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9416
<G>R SMD METAL 1/10W 240K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-110

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R341B
79PQ9422
<G>R SMD METAL 1/3W 75 F
8-111

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R341G
79PQ9422
<G>R SMD METAL 1/3W 75 F
R341R
79PQ9422
<G>R SMD METAL 1/3W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ9422
<G>R SMD METAL 1/3W 75 F
R351G
79PQ9422
<G>R SMD METAL 1/3W 75 F
R351R
79PQ9422
<G>R SMD METAL 1/3W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
8-112

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
8-113

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-114

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
8-115

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-116

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
8-117

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
8-118

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9255
<G>C SMD B 4700P 50V K 06
C365
79PQ9255
<G>C SMD B 4700P 50V K 06
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9255
<G>C SMD B 4700P 50V K 06
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9255
<G>C SMD B 4700P 50V K 06
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-119

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9246
<G>C SMD B 0.1U 16V K 060
C483
79PQ9246
<G>C SMD B 0.1U 16V K 060
C484
79PQ9246
<G>C SMD B 0.1U 16V K 060
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-120

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-121

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi(B)
(For Asia/Australia)
SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-122

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-123

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D290
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
8-124

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
8-125

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9485
<G>CABLE VIDEO GRY DVID-D
CBL2
79PQ9486
<G>CABLE VIDEO GRY DVIA-D
CBL3
79PQ8953
<G>PW CORD EUR 2M RPLUG G
CBL4
79PQ9496
<G>PW CORD UK 2.0M R-PLUG
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9483
<G>U FPC SW ASSY WHT LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9551
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9488
<G>COVER OUTER WH
FRONT1
79PQ9538
<G>BEZEL L205GR WH
SCR01
79PQ9480
<G>SC CBIMS3X10X3G
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
8-126

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
STAND1
79PQ9531
<G>STAND UNIT WH
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9532
<G>LABEL RATING L205GR WH
MANU1
79PQ9541
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9542
<G>SHEET SETUP L205GR B
MANU3
79PQ9494
<G>CAUTION SHEET FOR 15
PE1
79PQ9456
<G>PACKING BAG
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9548
<G>PE BAG 230X320
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-127

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
8-128

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9158
<G>R SMD METAL 1/10W 100
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
8-129

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9415
<G>R SMD METAL 1/10W 220K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
8-130

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
8-131

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R341B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
8-132

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
8-133

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-134

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
8-135

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-136

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
8-137

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C251
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-138

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9433
<G>CSMDB1U10VM0603
C365
79PQ9433
<G>CSMDB1U10VM0603
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9433
<G>CSMDB1U10VM0603
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9433
<G>CSMDB1U10VM0603
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-139

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9433
<G>CSMDB1U10VM0603
C483
79PQ9433
<G>CSMDB1U10VM0603
C484
79PQ9433
<G>CSMDB1U10VM0603
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-140

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-141

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi-BK(B)
(For Asia/Australia)
SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-142

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-143

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D290
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
8-144

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
8-145

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9441
<G>CABLE VIDEO BLK DVID-D
CBL2
79PQ9440
<G>CABLE VIDEO BLK DVIA-D
CBL3
79PQ8956
<G>PW CORD EUR 2M BLK I-S
CBL4
79PQ9497
<G>PW CORD UK 2.0M R-PLUG
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9429
<G>U FPC SW ASSY BLK LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9471
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9049
<G>COVER OUTER BK
FRONT1
79PQ9461
<G>BEZEL L205GR BK
SCR01
79PQ9376
<G>SC CBIMS3X10X3K
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
8-146

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
STAND1
79PQ9452
<G>STAND UNIT BK
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9457
<G>LABEL RATING L205GR BK
MANU1
79PQ9541
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9542
<G>SHEET SETUP L205GR B
MANU3
79PQ9494
<G>CAUTION SHEET FOR 15
PE1
79PQ9456
<G>PACKING BAG
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9548
<G>PE BAG 230X320
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-147

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
8-148

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9158
<G>R SMD METAL 1/10W 100
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
8-149

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9415
<G>R SMD METAL 1/10W 220K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
8-150

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
8-151

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R341B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
8-152

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
8-153

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-154

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
8-155

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-156

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
8-157

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C251
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-158

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9433
<G>CSMDB1U10VM0603
C365
79PQ9433
<G>CSMDB1U10VM0603
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9433
<G>CSMDB1U10VM0603
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9433
<G>CSMDB1U10VM0603
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-159

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9433
<G>CSMDB1U10VM0603
C483
79PQ9433
<G>CSMDB1U10VM0603
C484
79PQ9433
<G>CSMDB1U10VM0603
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-160

SYMBOL
For Asia/Australia
(NECDS Part Number)
DESCRIPTION
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-161

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi(C)
(For China)
SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-162

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-163

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D290
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
8-164

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
8-165

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9485
<G>CABLE VIDEO GRY DVID-D
CBL2
79PQ9486
<G>CABLE VIDEO GRY DVIA-D
CBL3
79PQ8966
<G>PW CORD CHN CCC 2M GRY
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9483
<G>U FPC SW ASSY WHT LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9551
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9488
<G>COVER OUTER WH
FRONT1
79PQ9538
<G>BEZEL L205GR WH
SCR01
79PQ9480
<G>SC CBIMS3X10X3G
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
STAND1
79PQ9531
<G>STAND UNIT WH
8-166

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9532
<G>LABEL RATING L205GR WH
MANU1
79PQ9543
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9544
<G>SHEET SETUP L205GR C
PE1
79PQ9456
<G>PACKING BAG
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9548
<G>PE BAG 230X320
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-167

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-168

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9158
<G>R SMD METAL 1/10W 100
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
8-169

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9415
<G>R SMD METAL 1/10W 220K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-170

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R341B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341G
79PQ8692
<G>R SMD METAL 1/2W 75 F
8-171

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R341R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
8-172

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-173

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
8-174

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
8-175

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
8-176

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
8-177

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C251
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
8-178

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9433
<G>CSMDB1U10VM0603
C365
79PQ9433
<G>CSMDB1U10VM0603
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9433
<G>CSMDB1U10VM0603
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9433
<G>CSMDB1U10VM0603
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-179

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9433
<G>CSMDB1U10VM0603
C483
79PQ9433
<G>CSMDB1U10VM0603
C484
79PQ9433
<G>CSMDB1U10VM0603
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
8-180

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-181

REPLACEMENT PARTS LIST
The components specified for Model LCD2090UXi-BK(C)
(For China)
SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
*** ICS ***
IC100
79PQ9392
<G>IC SMD UPD70F3261YGC-8
IC171
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC172
79PQ9389
<G>IC SMD 24LC256T-I/SNG
IC183
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC1H1
79PQ9395
<G>IC SMD XC6108N33AMR RE
IC211
79PQ9391
<G>IC SMD XC9223B081AR RE
IC221
79PQ9391
<G>IC SMD XC9223B081AR RE
IC231
79PQ9391
<G>IC SMD XC9223B081AR RE
IC241
79PQ9463
<G>IC SMD LT1961EMS8E#TRP
IC291
79PQ9387
<G>IC SMD NJM2870F18 REGU
IC2A1
79PQ9385
<G>IC SMD NJM2870F33 REGU
IC361
79PQ9384
<G>IC SMD NJM319V LINEAR
IC381
79PQ9384
<G>IC SMD NJM319V LINEAR
IC3E1
79PQ9388
<G>IC SMD TA76431F
IC3E2
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC3E3
79PQ9064
<G>IC SMD NC7WZ14P6X_NL
IC401
79PQ9394
<G>IC SMD NDS0001B-LF CAV
IC601
79PQ9328
<G>IC SMD K4D263238G-VC36
IC701
79PQ8204
<G>IC SMD RTC8564JE
IC702
79PQ9390
<G>IC SMD TCN75-3 .3MUA713
IC704
79PQ9396
<G>IC SMD ADXL322JCP-REEL
IC851
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC852
79PQ8602
<G>IC SMD BU9882F-WE2 MOS
IC853
79PQ9386
<G>IC SMD X9116WM8Z-2 .7T1
IC854
79PQ9393
<G>IC SMD NJM12903V LINEA
*** TRANSISTORS ***
Q151
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q152
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q153
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F1
79PQ9399
<G>FET SMD CPH6311-TL -E
Q1F2
79PQ9398
<G>TR SMD DTA144WKAT146 P
Q1F3
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F4
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q1F5
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q1F6
79PQ7611
<G>TR SMD 2SC2412K F T146
Q1F7
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q251
79PQ9399
<G>FET SMD CPH6311-TL -E
Q252
79PQ9084
<G>TR SMD DTC144EKAT146 N
8-182

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
Q261
79PQ8628
<G>FET SMD 2SK3018 T106
Q262
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q263
79PQ9399
<G>FET SMD CPH6311-TL -E
Q264
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q341B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q341R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q342B
79PQ8623
<G>TR SMD DTA144EKAT146
Q342G
79PQ8623
<G>TR SMD DTA144EKAT146
Q342R
79PQ8623
<G>TR SMD DTA144EKAT146
Q34K
79PQ9399
<G>FET SMD CPH6311-TL -E
Q34L
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q34M
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q351B
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351G
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q351R
79PQ8626
<G>TR SMD 2SC5084-O NPN
Q352B
79PQ8623
<G>TR SMD DTA144EKAT146
Q352G
79PQ8623
<G>TR SMD DTA144EKAT146
Q352R
79PQ8623
<G>TR SMD DTA144EKAT146
Q361
79PQ9400
<G>FET SMD 2SK360-E
Q362
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q381
79PQ9400
<G>FET SMD 2SK360-E
Q382
79PQ9397
<G>TR SMD 2SA1764-TB PNP
Q3E1
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q701
79PQ8628
<G>FET SMD 2SK3018 T106
Q702
79PQ8628
<G>FET SMD 2SK3018 T106
Q821
79PQ7612
<G>TR SMD 2SA1037AK F T14
Q851
79PQ8628
<G>FET SMD 2SK3018 T106
Q852
79PQ8628
<G>FET SMD 2SK3018 T106
Q853
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q854
79PQ8628
<G>FET SMD 2SK3018 T106
Q855
79PQ7611
<G>TR SMD 2SC2412K F T146
Q856
79PQ9084
<G>TR SMD DTC144EKAT146 N
Q857
79PQ9084
<G>TR SMD DTC144EKAT146 N
*** DIODES ***
D161
79PQ7614
<G>DI SMD 1SS355 F TE-17
D162
79PQ7614
<G>DI SMD 1SS355 F TE-17
D163
79PQ7614
<G>DI SMD 1SS355 F TE-17
D164
79PQ7614
<G>DI SMD 1SS355 F TE-17
D165
79PQ7614
<G>DI SMD 1SS355 F TE-17
D166
79PQ7614
<G>DI SMD 1SS355 F TE-17
D167
79PQ7614
<G>DI SMD 1SS355 F TE-17
D168
79PQ7615
<G>DI SMD DAN217 F T146
D183
79PQ7614
<G>DI SMD 1SS355 F TE-17
8-183

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
D1F1
79PQ9101
<G>DI SMD RB495DT146
D1F2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F3
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1F4
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H1
79PQ7614
<G>DI SMD 1SS355 F TE-17
D1H2
79PQ7614
<G>DI SMD 1SS355 F TE-17
D241
79PQ9464
<G>DI SMD RB160M-30TR
D290
79PQ9464
<G>DI SMD RB160M-30TR
D311
79PQ7615
<G>DI SMD DAN217 F T146
D312
79PQ7615
<G>DI SMD DAN217 F T146
D313
79PQ7615
<G>DI SMD DAN217 F T146
D314
79PQ7615
<G>DI SMD DAN217 F T146
D315
79PQ7615
<G>DI SMD DAN217 F T146
D316
79PQ7615
<G>DI SMD DAN217 F T146
D317
79PQ7615
<G>DI SMD DAN217 F T146
D318
79PQ7615
<G>DI SMD DAN217 F T146
D320A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D320B
79PQ7615
<G>DI SMD DAN217 F T146
D320G
79PQ7615
<G>DI SMD DAN217 F T146
D320R
79PQ7615
<G>DI SMD DAN217 F T146
D321
79PQ7615
<G>DI SMD DAN217 F T146
D322
79PQ7615
<G>DI SMD DAN217 F T146
D323
79PQ7615
<G>DI SMD DAN217 F T146
D324
79PQ7615
<G>DI SMD DAN217 F T146
D325
79PQ7615
<G>DI SMD DAN217 F T146
D326
79PQ7615
<G>DI SMD DAN217 F T146
D327
79PQ7615
<G>DI SMD DAN217 F T146
D328
79PQ7615
<G>DI SMD DAN217 F T146
D330A
79PQ7614
<G>DI SMD 1SS355 F TE-17
D330B
79PQ7615
<G>DI SMD DAN217 F T146
D330G
79PQ7615
<G>DI SMD DAN217 F T146
D330R
79PQ7615
<G>DI SMD DAN217 F T146
D341B
79PQ9095
<G>DI SMD 1SS356TW11
D341G
79PQ9095
<G>DI SMD 1SS356TW11
D341R
79PQ9095
<G>DI SMD 1SS356TW11
D351B
79PQ9095
<G>DI SMD 1SS356TW11
D351G
79PQ9095
<G>DI SMD 1SS356TW11
D351R
79PQ9095
<G>DI SMD 1SS356TW11
D820
79PQ7615
<G>DI SMD DAN217 F T146
D821
79PQ9101
<G>DI SMD RB495DT146
D831
79PQ9101
<G>DI SMD RB495DT146
ZD181
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD183
79PQ8631
<G>ZD SMD UDZS5.6BTE-17
ZD311
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD312
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
8-184

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
ZD321
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
ZD322
79PQ8855
<G>ZD SMD UDZS3.6BTE-17
ZD331
79PQ9097
<G>DI SMD NNCD6.2MG-T1-A
*** PWB ASSYS ***
INVER1
79PQ9466
<G>U INVERT L205GR
MAIN1
79PQ9462
<G>MAIN INSERT ASSY ROHS
POWER1
79PQ9428
<G>U PW SUPPLY S39235K
*** COILS & FILTERS ***
B101
79PQ9218
<G>L SMD BEAD BK1608LM252
B103
79PQ9218
<G>L SMD BEAD BK1608LM252
B151
79PQ9218
<G>L SMD BEAD BK1608LM252
B152
79PQ9218
<G>L SMD BEAD BK1608LM252
B153
79PQ9218
<G>L SMD BEAD BK1608LM252
B161
79PQ9218
<G>L SMD BEAD BK1608LM252
B162
79PQ9218
<G>L SMD BEAD BK1608LM252
B163
79PQ9218
<G>L SMD BEAD BK1608LM252
B164
79PQ9218
<G>L SMD BEAD BK1608LM252
B165
79PQ9218
<G>L SMD BEAD BK1608LM252
B166
79PQ9218
<G>L SMD BEAD BK1608LM252
B167
79PQ9218
<G>L SMD BEAD BK1608LM252
B168
79PQ9218
<G>L SMD BEAD BK1608LM252
B169
79PQ9218
<G>L SMD BEAD BK1608LM252
B1F1
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B201
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B211
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B221
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B231
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B261
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B291
79PQ9218
<G>L SMD BEAD BK1608LM252
B2A1
79PQ9218
<G>L SMD BEAD BK1608LM252
B361
79PQ9221
<G>L SMD BEAD BKP1608HS33
B362
79PQ9221
<G>L SMD BEAD BKP1608HS33
B381
79PQ9221
<G>L SMD BEAD BKP1608HS33
B382
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E1
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E2
79PQ9221
<G>L SMD BEAD BKP1608HS33
B3E3
79PQ9221
<G>L SMD BEAD BKP1608HS33
B401
79PQ9218
<G>L SMD BEAD BK1608LM252
B402
79PQ9218
<G>L SMD BEAD BK1608LM252
B431
79PQ9426
<G>L SMD BEAD BK1608HS601
B433
79PQ9426
<G>L SMD BEAD BK1608HS601
B435
79PQ9218
<G>L SMD BEAD BK1608LM252
B436
79PQ9218
<G>L SMD BEAD BK1608LM252
8-185

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
B441
79PQ9426
<G>L SMD BEAD BK1608HS601
B445
79PQ9218
<G>L SMD BEAD BK1608LM252
B446
79PQ9218
<G>L SMD BEAD BK1608LM252
B447
79PQ9218
<G>L SMD BEAD BK1608LM252
B448
79PQ9218
<G>L SMD BEAD BK1608LM252
B451
79PQ9426
<G>L SMD BEAD BK1608HS601
B452
79PQ9218
<G>L SMD BEAD BK1608LM252
B461
79PQ9426
<G>L SMD BEAD BK1608HS601
B471
79PQ9426
<G>L SMD BEAD BK1608HS601
B481
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B487
79PQ9218
<G>L SMD BEAD BK1608LM252
B488
79PQ9218
<G>L SMD BEAD BK1608LM252
B489
79PQ9218
<G>L SMD BEAD BK1608LM252
B621
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B631
79PQ9220
<G>L SMD BEAD FBMH3216HM5
B704
79PQ9218
<G>L SMD BEAD BK1608LM252
B853
79PQ9221
<G>L SMD BEAD BKP1608HS33
FL218
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL225
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL233
79PQ8708
<G>L SMD NFE31PT222Z1E9L
FL551
79PQ8708
<G>L SMD NFE31PT222Z1E9L
L211
79PQ9424
<G>L SMD SLF7030T-100M1R3
L221
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L231
79PQ9425
<G>L SMD CHOKE 4.7UH OPS3
L241
79PQ9424
<G>L SMD SLF7030T-100M1R3
*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***
CBL1
79PQ9441
<G>CABLE VIDEO BLK DVID-D
CBL2
79PQ9440
<G>CABLE VIDEO BLK DVIA-D
CBL3
79PQ8969
<G>PW CORD CHN CCC 2M BLK
LCD01
3A684129
<G>TFT LM20105-SLB1 LPL
LVDS1
79PQ9469
<G>WIRE CC31P/8P 1516#30L
SWBD1
79PQ9429
<G>U FPC SW ASSY BLK LCD1
WIRE1
79PQ9437
<G>WIRE CC13P/8P5P 1007#2
WIRE2
79PQ9438
<G>WIRE CC9P 1007#26L100
X100
79PQ9402
<G>OSC SMD CSTCR4M91G55-R
X401
79PQ9401
<G>OSC SMD X'TAL FCX-03 1
*** APPEARANCE PARTS ***
BACK1
79PQ9471
<G>SKD BACK ASSY LCD2090U
COVER1
79PQ9049
<G>COVER OUTER BK
FRONT1
79PQ9461
<G>BEZEL L205GR BK
SCR01
79PQ9376
<G>SC CBIMS3X10X3K
SCR02
79PQ9051
<G>SC #2CPISSX3X6X3K
STAND1
79PQ9452
<G>STAND UNIT BK
8-186

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
*** PRINTED & PACKING MATERIALS ***
CTN1
79PQ9453
<G>CARTON BOX L205GR WHA
CTN2
79PQ9050
<G>CARTON SHEET
EPS1
79PQ9454
<G>FILLER T L205GR
EPS2
79PQ9455
<G>FILLER B L205GR
LBL1
79PQ9457
<G>LABEL RATING L205GR BK
MANU1
79PQ9543
<G>MANUAL ASSY LCD2090UXI
MANU2
79PQ9544
<G>SHEET SETUP L205GR C
PE1
79PQ9456
<G>PACKING BAG
PE2
79PQ9036
<G>BAG POLYETHYLENE 170X9
PE3
79PQ9548
<G>PE BAG 230X320
*** RESISTORS ***
B281
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B282
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
B2E1
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B320R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330B
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330G
79PQ8639
<G>R SMD METAL 1/10W 0 J
B330R
79PQ8639
<G>R SMD METAL 1/10W 0 J
B360
79PQ8639
<G>R SMD METAL 1/10W 0 J
F281
79PQ9383
<G>R SMD FUSE MINISMDC150
MR103
79PQ9186
<G>R SMD NET 1/16W 100 J
MR104
79PQ9186
<G>R SMD NET 1/16W 100 J
MR105
79PQ9186
<G>R SMD NET 1/16W 100 J
MR121
79PQ9186
<G>R SMD NET 1/16W 100 J
MR122
79PQ9186
<G>R SMD NET 1/16W 100 J
MR151
79PQ9423
<G>R SMD NET 1/16W 10K J
MR152
79PQ9423
<G>R SMD NET 1/16W 10K J
MR401
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR402
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR403
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR404
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR405
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR406
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR407
79PQ8693
<G>R SMD NET 1/16W 0 J 8P
MR450H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR450L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR451L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452H
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR452L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR453H
79PQ8694
<G>R SMD NET 1/16W 33 J (
8-187

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
MR453L
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR454
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR455
79PQ8694
<G>R SMD NET 1/16W 33 J (
MR456
79PQ8694
<G>R SMD NET 1/16W 33 J (
R100
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R102
79PQ8642
<G>R SMD METAL 1/10W 10K
R103
79PQ8642
<G>R SMD METAL 1/10W 10K
R104
79PQ8655
<G>R SMD METAL 1/10W 33 J
R105
79PQ8642
<G>R SMD METAL 1/10W 10K
R106
79PQ8655
<G>R SMD METAL 1/10W 33 J
R107
79PQ8655
<G>R SMD METAL 1/10W 33 J
R108
79PQ8655
<G>R SMD METAL 1/10W 33 J
R109
79PQ8655
<G>R SMD METAL 1/10W 33 J
R110
79PQ8655
<G>R SMD METAL 1/10W 33 J
R111
79PQ8655
<G>R SMD METAL 1/10W 33 J
R112
79PQ8655
<G>R SMD METAL 1/10W 33 J
R113
79PQ8655
<G>R SMD METAL 1/10W 33 J
R114
79PQ8655
<G>R SMD METAL 1/10W 33 J
R115
79PQ8653
<G>R SMD METAL 1/10W 22K
R116
79PQ8663
<G>R SMD METAL 1/10W 47K
R117
79PQ8663
<G>R SMD METAL 1/10W 47K
R121
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R122
79PQ8640
<G>R SMD METAL 1/10W 100
R123
79PQ8640
<G>R SMD METAL 1/10W 100
R124
79PQ8640
<G>R SMD METAL 1/10W 100
R125
79PQ8640
<G>R SMD METAL 1/10W 100
R126
79PQ8655
<G>R SMD METAL 1/10W 33 J
R128
79PQ8655
<G>R SMD METAL 1/10W 33 J
R129
79PQ8655
<G>R SMD METAL 1/10W 33 J
R131
79PQ8655
<G>R SMD METAL 1/10W 33 J
R132
79PQ8655
<G>R SMD METAL 1/10W 33 J
R133
79PQ8655
<G>R SMD METAL 1/10W 33 J
R134
79PQ8655
<G>R SMD METAL 1/10W 33 J
R135
79PQ8655
<G>R SMD METAL 1/10W 33 J
R136
79PQ8655
<G>R SMD METAL 1/10W 33 J
R137
79PQ8655
<G>R SMD METAL 1/10W 33 J
R138
79PQ8655
<G>R SMD METAL 1/10W 33 J
R140
79PQ8639
<G>R SMD METAL 1/10W 0 J
R141
79PQ8639
<G>R SMD METAL 1/10W 0 J
R142
79PQ8639
<G>R SMD METAL 1/10W 0 J
R143
79PQ8640
<G>R SMD METAL 1/10W 100
R144
79PQ8643
<G>R SMD METAL 1/10W 100K
R146
79PQ8643
<G>R SMD METAL 1/10W 100K
R148
79PQ8643
<G>R SMD METAL 1/10W 100K
R149
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-188

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R14A
79PQ8643
<G>R SMD METAL 1/10W 100K
R151
79PQ8690
<G>R SMD METAL 1/10W 680
R152
79PQ8690
<G>R SMD METAL 1/10W 680
R153
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R154
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R155
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R156
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R157
79PQ8663
<G>R SMD METAL 1/10W 47K
R158
79PQ8642
<G>R SMD METAL 1/10W 10K
R159
79PQ8640
<G>R SMD METAL 1/10W 100
R160
79PQ8640
<G>R SMD METAL 1/10W 100
R161
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R162
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R163
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R164
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R165
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R166
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R167
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R168
79PQ9133
<G>R SMD METAL 1/8W 1.0K
R169
79PQ9405
<G>R SMD METAL 1/10W 330K
R171
79PQ8642
<G>R SMD METAL 1/10W 10K
R172
79PQ8642
<G>R SMD METAL 1/10W 10K
R184
79PQ9418
<G>R SMD METAL 1/10W 390K
R185
79PQ9415
<G>R SMD METAL 1/10W 220K
R186
79PQ8643
<G>R SMD METAL 1/10W 100K
R187
79PQ9158
<G>R SMD METAL 1/10W 100
R188
79PQ9124
<G>R SMD METAL 1/10W 1.8K
R189
79PQ9407
<G>R SMD METAL 1/10W 6.8K
R191
79PQ8642
<G>R SMD METAL 1/10W 10K
R193
79PQ8642
<G>R SMD METAL 1/10W 10K
R195
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F1
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1F2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F3
79PQ8653
<G>R SMD METAL 1/10W 22K
R1F4
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F5
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R1F6
79PQ8642
<G>R SMD METAL 1/10W 10K
R1F7
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F8
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R1F9
79PQ8664
<G>R SMD METAL 1/10W 56 J
R1H1
79PQ9408
<G>R SMD METAL 1/10W 820K
R1H2
79PQ8642
<G>R SMD METAL 1/10W 10K
R1H3
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H4
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R1H5
79PQ9163
<G>R SMD METAL 1/10W 22K
8-189

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R1H6
79PQ9414
<G>R SMD METAL 1/10W 150K
R1H7
79PQ8643
<G>R SMD METAL 1/10W 100K
R1H8
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R201
79PQ9409
<G>R SMD METAL 1/4W 0 J 1
R203M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R203N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R20UX
79PQ8639
<G>R SMD METAL 1/10W 0 J
R211
79PQ8639
<G>R SMD METAL 1/10W 0 J
R212
79PQ9414
<G>R SMD METAL 1/10W 150K
R213
79PQ9414
<G>R SMD METAL 1/10W 150K
R214
79PQ9415
<G>R SMD METAL 1/10W 220K
R215
79PQ8677
<G>R SMD METAL 1/10W 100K
R216
79PQ8677
<G>R SMD METAL 1/10W 100K
R217
79PQ8639
<G>R SMD METAL 1/10W 0 J
R221
79PQ8639
<G>R SMD METAL 1/10W 0 J
R222
79PQ8639
<G>R SMD METAL 1/10W 0 J
R223
79PQ9420
<G>R SMD METAL 1/10W 510K
R224
79PQ9416
<G>R SMD METAL 1/10W 240K
R225
79PQ8677
<G>R SMD METAL 1/10W 100K
R226
79PQ9421
<G>R SMD METAL 1/10W 56K
R231
79PQ8639
<G>R SMD METAL 1/10W 0 J
R232
79PQ8639
<G>R SMD METAL 1/10W 0 J
R233
79PQ9419
<G>R SMD METAL 1/10W 470K
R234
79PQ9414
<G>R SMD METAL 1/10W 150K
R235
79PQ9414
<G>R SMD METAL 1/10W 150K
R236
79PQ9421
<G>R SMD METAL 1/10W 56K
R241
79PQ9418
<G>R SMD METAL 1/10W 390K
R242
79PQ8689
<G>R SMD METAL 1/10W 51K
R243M
79PQ8639
<G>R SMD METAL 1/10W 0 J
R243N
79PQ8639
<G>R SMD METAL 1/10W 0 J
R245
79PQ8642
<G>R SMD METAL 1/10W 10K
R246
79PQ9163
<G>R SMD METAL 1/10W 22K
R247
79PQ9465
<G>R SMD METAL 1/10W 120K
R248
79PQ8676
<G>R SMD METAL 1/10W 10K
R249
79PQ8639
<G>R SMD METAL 1/10W 0 J
R251
79PQ8658
<G>R SMD METAL 1/10W 33K
R252
79PQ8643
<G>R SMD METAL 1/10W 100K
R261
79PQ9410
<G>R SMD METAL 3/4W 680 J
R262
79PQ9410
<G>R SMD METAL 3/4W 680 J
R263
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R264
79PQ8642
<G>R SMD METAL 1/10W 10K
R265
79PQ8677
<G>R SMD METAL 1/10W 100K
R266
79PQ9168
<G>R SMD METAL 1/10W 33K
R267
79PQ8639
<G>R SMD METAL 1/10W 0 J
R268
79PQ8639
<G>R SMD METAL 1/10W 0 J
8-190

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R269
79PQ8658
<G>R SMD METAL 1/10W 33K
R270
79PQ8639
<G>R SMD METAL 1/10W 0 J
R271
79PQ8640
<G>R SMD METAL 1/10W 100
R272
79PQ8640
<G>R SMD METAL 1/10W 100
R273
79PQ8640
<G>R SMD METAL 1/10W 100
R274
79PQ8644
<G>R SMD METAL 1/10W 1.0M
R291
79PQ8642
<G>R SMD METAL 1/10W 10K
R2A1
79PQ8642
<G>R SMD METAL 1/10W 10K
R312
79PQ8640
<G>R SMD METAL 1/10W 100
R313
79PQ8640
<G>R SMD METAL 1/10W 100
R314
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R315N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R315P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R316P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R317P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R318P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R320E
79PQ8643
<G>R SMD METAL 1/10W 100K
R320H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R320V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R322
79PQ8640
<G>R SMD METAL 1/10W 100
R323
79PQ8640
<G>R SMD METAL 1/10W 100
R324
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R325N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R325P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R326P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R327P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328N
79PQ9121
<G>R SMD METAL 1/10W 10 J
R328P
79PQ9121
<G>R SMD METAL 1/10W 10 J
R329H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R329V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R330E
79PQ8643
<G>R SMD METAL 1/10W 100K
R330H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R330V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R332
79PQ8640
<G>R SMD METAL 1/10W 100
R333
79PQ8640
<G>R SMD METAL 1/10W 100
R339H
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R339V
79PQ8652
<G>R SMD METAL 1/10W 2.2K
R341A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R341B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R341G
79PQ8692
<G>R SMD METAL 1/2W 75 F
8-191

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R341R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R342B
79PQ8642
<G>R SMD METAL 1/10W 10K
R342G
79PQ8642
<G>R SMD METAL 1/10W 10K
R342R
79PQ8642
<G>R SMD METAL 1/10W 10K
R343B
79PQ8649
<G>R SMD METAL 1/10W 15K
R343G
79PQ8649
<G>R SMD METAL 1/10W 15K
R343R
79PQ8649
<G>R SMD METAL 1/10W 15K
R344B
79PQ8640
<G>R SMD METAL 1/10W 100
R344G
79PQ8640
<G>R SMD METAL 1/10W 100
R344R
79PQ8640
<G>R SMD METAL 1/10W 100
R345B
79PQ8656
<G>R SMD METAL 1/10W 330
R345G
79PQ8656
<G>R SMD METAL 1/10W 330
R345R
79PQ8656
<G>R SMD METAL 1/10W 330
R346B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346G
79PQ9406
<G>R SMD METAL 1/10W 51 J
R346R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R347B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R347R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R348B
79PQ8663
<G>R SMD METAL 1/10W 47K
R348G
79PQ8663
<G>R SMD METAL 1/10W 47K
R348R
79PQ8663
<G>R SMD METAL 1/10W 47K
R349B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R349R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R34K
79PQ8663
<G>R SMD METAL 1/10W 47K
R34L
79PQ8640
<G>R SMD METAL 1/10W 100
R351A
79PQ8639
<G>R SMD METAL 1/10W 0 J
R351B
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351G
79PQ8692
<G>R SMD METAL 1/2W 75 F
R351R
79PQ8692
<G>R SMD METAL 1/2W 75 F
R352B
79PQ8642
<G>R SMD METAL 1/10W 10K
R352G
79PQ8642
<G>R SMD METAL 1/10W 10K
R352R
79PQ8642
<G>R SMD METAL 1/10W 10K
R353B
79PQ8649
<G>R SMD METAL 1/10W 15K
R353G
79PQ8649
<G>R SMD METAL 1/10W 15K
R353R
79PQ8649
<G>R SMD METAL 1/10W 15K
R354B
79PQ8640
<G>R SMD METAL 1/10W 100
R354G
79PQ8640
<G>R SMD METAL 1/10W 100
R354R
79PQ8640
<G>R SMD METAL 1/10W 100
R355B
79PQ8656
<G>R SMD METAL 1/10W 330
R355G
79PQ8656
<G>R SMD METAL 1/10W 330
R355R
79PQ8656
<G>R SMD METAL 1/10W 330
R356B
79PQ9406
<G>R SMD METAL 1/10W 51 J
R356G
79PQ9406
<G>R SMD METAL 1/10W 51 J
8-192

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R356R
79PQ9406
<G>R SMD METAL 1/10W 51 J
R357B
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357G
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R357R
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R358B
79PQ8663
<G>R SMD METAL 1/10W 47K
R358G
79PQ8663
<G>R SMD METAL 1/10W 47K
R358R
79PQ8663
<G>R SMD METAL 1/10W 47K
R359B
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359G
79PQ8639
<G>R SMD METAL 1/10W 0 J
R359R
79PQ8639
<G>R SMD METAL 1/10W 0 J
R361
79PQ8643
<G>R SMD METAL 1/10W 100K
R362
79PQ8643
<G>R SMD METAL 1/10W 100K
R363
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R364
79PQ8665
<G>R SMD METAL 1/10W 560
R365
79PQ8651
<G>R SMD METAL 1/10W 220
R366
79PQ8642
<G>R SMD METAL 1/10W 10K
R367
79PQ8653
<G>R SMD METAL 1/10W 22K
R368
79PQ9412
<G>R SMD METAL 1/10W 13K
R369
79PQ8640
<G>R SMD METAL 1/10W 100
R371
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R372
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R373
79PQ8661
<G>R SMD METAL 1/10W 470
R374
79PQ8655
<G>R SMD METAL 1/10W 33 J
R375
79PQ9174
<G>R SMD METAL 1/10W 5.6K
R376
79PQ9413
<G>R SMD METAL 1/10W 150
R377
79PQ9167
<G>R SMD METAL 1/10W 330
R378
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R381
79PQ8643
<G>R SMD METAL 1/10W 100K
R382
79PQ8643
<G>R SMD METAL 1/10W 100K
R383
79PQ8641
<G>R SMD METAL 1/10W 1.0K
R384
79PQ8665
<G>R SMD METAL 1/10W 560
R385
79PQ8651
<G>R SMD METAL 1/10W 220
R386
79PQ8642
<G>R SMD METAL 1/10W 10K
R387
79PQ8653
<G>R SMD METAL 1/10W 22K
R389
79PQ8640
<G>R SMD METAL 1/10W 100
R391
79PQ8657
<G>R SMD METAL 1/10W 3.3K
R392
79PQ8662
<G>R SMD METAL 1/10W 4.7K
R393
79PQ8661
<G>R SMD METAL 1/10W 470
R394
79PQ8655
<G>R SMD METAL 1/10W 33 J
R395
79PQ9417
<G>R SMD METAL 1/10W 2.7K
R396
79PQ9173
<G>R SMD METAL 1/10W 560
R397
79PQ9413
<G>R SMD METAL 1/10W 150
R398
79PQ9411
<G>R SMD METAL 1/10W 1.1K
R3E1
79PQ8661
<G>R SMD METAL 1/10W 470
R3E2
79PQ8655
<G>R SMD METAL 1/10W 33 J
8-193

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R3E3
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E4
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E5
79PQ8655
<G>R SMD METAL 1/10W 33 J
R3E6
79PQ8683
<G>R SMD METAL 1/10W 2.2K
R3E7
79PQ9175
<G>R SMD METAL 1/10W 6.8K
R3E8
79PQ9163
<G>R SMD METAL 1/10W 22K
R401
79PQ8686
<G>R SMD METAL 1/10W 390
R411A
79PQ8661
<G>R SMD METAL 1/10W 470
R411B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R411R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R411V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R412B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R412R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R413A
79PQ8661
<G>R SMD METAL 1/10W 470
R413B
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413G
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413H
79PQ8655
<G>R SMD METAL 1/10W 33 J
R413R
79PQ9404
<G>R SMD METAL 1/10W 27 J
R413V
79PQ8655
<G>R SMD METAL 1/10W 33 J
R414B
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414G
79PQ9403
<G>R SMD METAL 1/10W 22 J
R414R
79PQ9403
<G>R SMD METAL 1/10W 22 J
R415
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R416
79PQ9122
<G>R SMD METAL 1/10W 1.5K
R417
79PQ8873
<G>R SMD METAL 1/10W 510
R418
79PQ8873
<G>R SMD METAL 1/10W 510
R421
79PQ8655
<G>R SMD METAL 1/10W 33 J
R422
79PQ8655
<G>R SMD METAL 1/10W 33 J
R423
79PQ8655
<G>R SMD METAL 1/10W 33 J
R424
79PQ8663
<G>R SMD METAL 1/10W 47K
R425
79PQ8663
<G>R SMD METAL 1/10W 47K
R426
79PQ8663
<G>R SMD METAL 1/10W 47K
R427
79PQ8639
<G>R SMD METAL 1/10W 0 J
R428
79PQ8642
<G>R SMD METAL 1/10W 10K
R429
79PQ8642
<G>R SMD METAL 1/10W 10K
R431
79PQ8642
<G>R SMD METAL 1/10W 10K
R432
79PQ8642
<G>R SMD METAL 1/10W 10K
R433
79PQ8642
<G>R SMD METAL 1/10W 10K
R434
79PQ8655
<G>R SMD METAL 1/10W 33 J
R435
79PQ8655
<G>R SMD METAL 1/10W 33 J
R436
79PQ8655
<G>R SMD METAL 1/10W 33 J
R441N
79PQ9123
<G>R SMD METAL 1/10W 18 J
8-194

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R441P
79PQ9123
<G>R SMD METAL 1/10W 18 J
R442
79PQ8655
<G>R SMD METAL 1/10W 33 J
R443
79PQ8655
<G>R SMD METAL 1/10W 33 J
R444
79PQ8655
<G>R SMD METAL 1/10W 33 J
R445
79PQ8655
<G>R SMD METAL 1/10W 33 J
R446
79PQ8655
<G>R SMD METAL 1/10W 33 J
R447
79PQ8655
<G>R SMD METAL 1/10W 33 J
R448
79PQ8655
<G>R SMD METAL 1/10W 33 J
R449
79PQ8655
<G>R SMD METAL 1/10W 33 J
R450
79PQ8655
<G>R SMD METAL 1/10W 33 J
R451
79PQ8655
<G>R SMD METAL 1/10W 33 J
R452
79PQ8655
<G>R SMD METAL 1/10W 33 J
R453
79PQ8655
<G>R SMD METAL 1/10W 33 J
R454
79PQ8655
<G>R SMD METAL 1/10W 33 J
R491
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R492
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R551
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R601
79PQ8648
<G>R SMD METAL 1/10W 150
R602
79PQ8655
<G>R SMD METAL 1/10W 33 J
R603
79PQ8655
<G>R SMD METAL 1/10W 33 J
R604
79PQ8655
<G>R SMD METAL 1/10W 33 J
R605
79PQ8655
<G>R SMD METAL 1/10W 33 J
R611
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R612
79PQ8675
<G>R SMD METAL 1/10W 1.0K
R701
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R702
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R703
79PQ8660
<G>R SMD METAL 1/10W 47 J
R704
79PQ8660
<G>R SMD METAL 1/10W 47 J
R705
79PQ8660
<G>R SMD METAL 1/10W 47 J
R706
79PQ9382
<G>R SMD METAL 1W 33 J 25
R707
79PQ8655
<G>R SMD METAL 1/10W 33 J
R708
79PQ8642
<G>R SMD METAL 1/10W 10K
R709
79PQ8642
<G>R SMD METAL 1/10W 10K
R710
79PQ8655
<G>R SMD METAL 1/10W 33 J
R711
79PQ8642
<G>R SMD METAL 1/10W 10K
R810
79PQ8642
<G>R SMD METAL 1/10W 10K
R811
79PQ9382
<G>R SMD METAL 1W 33 J 25
R812
79PQ8688
<G>R SMD METAL 1/10W 510
R821
79PQ9382
<G>R SMD METAL 1W 33 J 25
R822
79PQ8688
<G>R SMD METAL 1/10W 510
R823
79PQ8640
<G>R SMD METAL 1/10W 100
R824
79PQ9128
<G>R SMD METAL 1/10W 2.7K
R825
79PQ8663
<G>R SMD METAL 1/10W 47K
R826
79PQ8642
<G>R SMD METAL 1/10W 10K
R830
79PQ8642
<G>R SMD METAL 1/10W 10K
8-195

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
R831
79PQ9382
<G>R SMD METAL 1W 33 J 25
R851
79PQ8663
<G>R SMD METAL 1/10W 47K
R852
79PQ9129
<G>R SMD METAL 1/10W 27K
R853
79PQ8663
<G>R SMD METAL 1/10W 47K
R854
79PQ8663
<G>R SMD METAL 1/10W 47K
R855
79PQ9129
<G>R SMD METAL 1/10W 27K
R856
79PQ8639
<G>R SMD METAL 1/10W 0 J
R857
79PQ8639
<G>R SMD METAL 1/10W 0 J
R858
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R859
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R861
79PQ8663
<G>R SMD METAL 1/10W 47K
R862
79PQ9129
<G>R SMD METAL 1/10W 27K
R863
79PQ8663
<G>R SMD METAL 1/10W 47K
R864
79PQ8663
<G>R SMD METAL 1/10W 47K
R865
79PQ8663
<G>R SMD METAL 1/10W 47K
R866
79PQ9129
<G>R SMD METAL 1/10W 27K
R867
79PQ8663
<G>R SMD METAL 1/10W 47K
R868
79PQ8663
<G>R SMD METAL 1/10W 47K
R871
79PQ8639
<G>R SMD METAL 1/10W 0 J
R872
79PQ9168
<G>R SMD METAL 1/10W 33K
R873
79PQ9168
<G>R SMD METAL 1/10W 33K
R874
79PQ9168
<G>R SMD METAL 1/10W 33K
R875
79PQ8642
<G>R SMD METAL 1/10W 10K
R876
79PQ8639
<G>R SMD METAL 1/10W 0 J
R877
79PQ8663
<G>R SMD METAL 1/10W 47K
R878
79PQ8663
<G>R SMD METAL 1/10W 47K
R879
79PQ8666
<G>R SMD METAL 1/10W 5.6K
R881
79PQ9129
<G>R SMD METAL 1/10W 27K
R882
79PQ9129
<G>R SMD METAL 1/10W 27K
R883
79PQ9129
<G>R SMD METAL 1/10W 27K
R891
79PQ8663
<G>R SMD METAL 1/10W 47K
R892
79PQ8663
<G>R SMD METAL 1/10W 47K
R893
79PQ8663
<G>R SMD METAL 1/10W 47K
R894
79PQ8663
<G>R SMD METAL 1/10W 47K
R895
79PQ8663
<G>R SMD METAL 1/10W 47K
R896
79PQ8663
<G>R SMD METAL 1/10W 47K
*** CAPACITORS ***
C101
79PQ9246
<G>C SMD B 0.1U 16V K 060
C103
79PQ9246
<G>C SMD B 0.1U 16V K 060
C104
79PQ9246
<G>C SMD B 0.1U 16V K 060
C105
79PQ9246
<G>C SMD B 0.1U 16V K 060
C106
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C109
79PQ9246
<G>C SMD B 0.1U 16V K 060
C112
79PQ9430
<G>C SMD B 10U 6.3V M 080
8-196

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C113
79PQ9246
<G>C SMD B 0.1U 16V K 060
C114
79PQ9246
<G>C SMD B 0.1U 16V K 060
C115
79PQ9246
<G>C SMD B 0.1U 16V K 060
C144
79PQ9246
<G>C SMD B 0.1U 16V K 060
C146
79PQ9246
<G>C SMD B 0.1U 16V K 060
C148
79PQ9246
<G>C SMD B 0.1U 16V K 060
C161
79PQ9246
<G>C SMD B 0.1U 16V K 060
C162
79PQ9246
<G>C SMD B 0.1U 16V K 060
C163
79PQ9246
<G>C SMD B 0.1U 16V K 060
C164
79PQ9246
<G>C SMD B 0.1U 16V K 060
C165
79PQ9246
<G>C SMD B 0.1U 16V K 060
C166
79PQ9246
<G>C SMD B 0.1U 16V K 060
C167
79PQ9246
<G>C SMD B 0.1U 16V K 060
C168
79PQ9246
<G>C SMD B 0.1U 16V K 060
C171
79PQ9246
<G>C SMD B 0.1U 16V K 060
C172
79PQ9246
<G>C SMD B 0.1U 16V K 060
C184
79PQ8718
<G>C SMD X7R 0.01U 50V K
C186
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F0
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F1
79PQ9430
<G>C SMD B 10U 6.3V M 080
C1F2
79PQ9239
<G>C SMD X5R 4.7U 6.3V K
C1F3
79PQ9433
<G>CSMDB1U10VM0603
C1F4
79PQ9436
<G>C SMD CH 390P 50V J 06
C1F5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F6
79PQ9246
<G>C SMD B 0.1U 16V K 060
C1F7
79PQ8718
<G>C SMD X7R 0.01U 50V K
C211
79PQ9430
<G>C SMD B 10U 6.3V M 080
C212
79PQ9430
<G>C SMD B 10U 6.3V M 080
C213
79PQ9430
<G>C SMD B 10U 6.3V M 080
C214
79PQ9435
<G>C SMD CH 18P 50V J 060
C216
79PQ9246
<G>C SMD B 0.1U 16V K 060
C221
79PQ9430
<G>C SMD B 10U 6.3V M 080
C222
79PQ9430
<G>C SMD B 10U 6.3V M 080
C223
79PQ9430
<G>C SMD B 10U 6.3V M 080
C224
79PQ9435
<G>C SMD CH 18P 50V J 060
C226
79PQ9246
<G>C SMD B 0.1U 16V K 060
C231
79PQ9430
<G>C SMD B 10U 6.3V M 080
C232
79PQ9430
<G>C SMD B 10U 6.3V M 080
C233
79PQ9430
<G>C SMD B 10U 6.3V M 080
C234
79PQ9435
<G>C SMD CH 18P 50V J 060
C236
79PQ9246
<G>C SMD B 0.1U 16V K 060
C241
79PQ9467
<G>C SMD X7R 1.0U 25V M 0
C242
79PQ9468
<G>C SMD X7R 10U 25V M 12
C243
79PQ9468
<G>C SMD X7R 10U 25V M 12
C244
79PQ9244
<G>C SMD CH 100P 50V J 06
8-197

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C245
79PQ8718
<G>C SMD X7R 0.01U 50V K
C251
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C261
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C263
79PQ9432
<G>C SMD F 0.1U 25V Z 060
C264
79PQ9246
<G>C SMD B 0.1U 16V K 060
C265
79PQ9246
<G>C SMD B 0.1U 16V K 060
C266
79PQ9246
<G>C SMD B 0.1U 16V K 060
C271
79PQ9244
<G>C SMD CH 100P 50V J 06
C272
79PQ9244
<G>C SMD CH 100P 50V J 06
C273
79PQ9244
<G>C SMD CH 100P 50V J 06
C281
79PQ9244
<G>C SMD CH 100P 50V J 06
C282
79PQ9244
<G>C SMD CH 100P 50V J 06
C292
79PQ9430
<G>C SMD B 10U 6.3V M 080
C293
79PQ9430
<G>C SMD B 10U 6.3V M 080
C294
79PQ9246
<G>C SMD B 0.1U 16V K 060
C295
79PQ9246
<G>C SMD B 0.1U 16V K 060
C296
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A2
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A3
79PQ9430
<G>C SMD B 10U 6.3V M 080
C2A4
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A5
79PQ9246
<G>C SMD B 0.1U 16V K 060
C2A6
79PQ9430
<G>C SMD B 10U 6.3V M 080
C311
79PQ9246
<G>C SMD B 0.1U 16V K 060
C312
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C320V
79PQ9431
<G>C SMD B 1000P 50V K
C321
79PQ9246
<G>C SMD B 0.1U 16V K 060
C322
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330A
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330E
79PQ9246
<G>C SMD B 0.1U 16V K 060
C330V
79PQ9431
<G>C SMD B 1000P 50V K
C340
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C341R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C342B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C342R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C343R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C344B
79PQ8722
<G>C SMD COG 22P 50V J 06
C344G
79PQ8722
<G>C SMD COG 22P 50V J 06
8-198

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C344R
79PQ8722
<G>C SMD COG 22P 50V J 06
C34K
79PQ9246
<G>C SMD B 0.1U 16V K 060
C350
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351B
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351G
79PQ9430
<G>C SMD B 10U 6.3V M 080
C351R
79PQ9430
<G>C SMD B 10U 6.3V M 080
C352B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C352R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353B
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353G
79PQ9246
<G>C SMD B 0.1U 16V K 060
C353R
79PQ9246
<G>C SMD B 0.1U 16V K 060
C354B
79PQ8722
<G>C SMD COG 22P 50V J 06
C354G
79PQ8722
<G>C SMD COG 22P 50V J 06
C354R
79PQ8722
<G>C SMD COG 22P 50V J 06
C361
79PQ9246
<G>C SMD B 0.1U 16V K 060
C362
79PQ9430
<G>C SMD B 10U 6.3V M 080
C363
79PQ9246
<G>C SMD B 0.1U 16V K 060
C364
79PQ9433
<G>CSMDB1U10VM0603
C365
79PQ9433
<G>CSMDB1U10VM0603
C366
79PQ9246
<G>C SMD B 0.1U 16V K 060
C381
79PQ9246
<G>C SMD B 0.1U 16V K 060
C382
79PQ9430
<G>C SMD B 10U 6.3V M 080
C383
79PQ9246
<G>C SMD B 0.1U 16V K 060
C384
79PQ9433
<G>CSMDB1U10VM0603
C386
79PQ9246
<G>C SMD B 0.1U 16V K 060
C395
79PQ9433
<G>CSMDB1U10VM0603
C3E1
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E2
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E3
79PQ9246
<G>C SMD B 0.1U 16V K 060
C3E4
79PQ9430
<G>C SMD B 10U 6.3V M 080
C401
79PQ9434
<G>C SMD CH 15P 50V J 060
C402
79PQ9434
<G>C SMD CH 15P 50V J 060
C403
79PQ9246
<G>C SMD B 0.1U 16V K 060
C407
79PQ9246
<G>C SMD B 0.1U 16V K 060
C408
79PQ9246
<G>C SMD B 0.1U 16V K 060
C409
79PQ9246
<G>C SMD B 0.1U 16V K 060
C410
79PQ9246
<G>C SMD B 0.1U 16V K 060
C411A
79PQ9431
<G>C SMD B 1000P 50V K
C411B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C411R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C412G
79PQ9256
<G>C SMD X7R 0.047U 16V K
8-199

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C412R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413A
79PQ9431
<G>C SMD B 1000P 50V K
C413B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C413R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414B
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414G
79PQ9256
<G>C SMD X7R 0.047U 16V K
C414R
79PQ9256
<G>C SMD X7R 0.047U 16V K
C415
79PQ8724
<G>C SMD C0G 33P 50V J 06
C416
79PQ8724
<G>C SMD C0G 33P 50V J 06
C417
79PQ8725
<G>C SMD C0G 47P 50V J 06
C418
79PQ8725
<G>C SMD C0G 47P 50V J 06
C421
79PQ9246
<G>C SMD B 0.1U 16V K 060
C431
79PQ9246
<G>C SMD B 0.1U 16V K 060
C433
79PQ9246
<G>C SMD B 0.1U 16V K 060
C435
79PQ9246
<G>C SMD B 0.1U 16V K 060
C436
79PQ9246
<G>C SMD B 0.1U 16V K 060
C441
79PQ9246
<G>C SMD B 0.1U 16V K 060
C442
79PQ9246
<G>C SMD B 0.1U 16V K 060
C445
79PQ9246
<G>C SMD B 0.1U 16V K 060
C446
79PQ9246
<G>C SMD B 0.1U 16V K 060
C447
79PQ9246
<G>C SMD B 0.1U 16V K 060
C448
79PQ9246
<G>C SMD B 0.1U 16V K 060
C451
79PQ9246
<G>C SMD B 0.1U 16V K 060
C452
79PQ9246
<G>C SMD B 0.1U 16V K 060
C461
79PQ9246
<G>C SMD B 0.1U 16V K 060
C462
79PQ9246
<G>C SMD B 0.1U 16V K 060
C463
79PQ9246
<G>C SMD B 0.1U 16V K 060
C464
79PQ9246
<G>C SMD B 0.1U 16V K 060
C471
79PQ9246
<G>C SMD B 0.1U 16V K 060
C472
79PQ9246
<G>C SMD B 0.1U 16V K 060
C473
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481
79PQ9430
<G>C SMD B 10U 6.3V M 080
C481A
79PQ9430
<G>C SMD B 10U 6.3V M 080
C482
79PQ9433
<G>CSMDB1U10VM0603
C483
79PQ9433
<G>CSMDB1U10VM0603
C484
79PQ9433
<G>CSMDB1U10VM0603
C487
79PQ9246
<G>C SMD B 0.1U 16V K 060
C488
79PQ9246
<G>C SMD B 0.1U 16V K 060
C489
79PQ9246
<G>C SMD B 0.1U 16V K 060
C491
79PQ9246
<G>C SMD B 0.1U 16V K 060
C492
79PQ9246
<G>C SMD B 0.1U 16V K 060
C611
79PQ9246
<G>C SMD B 0.1U 16V K 060
C612
79PQ9246
<G>C SMD B 0.1U 16V K 060
C621
79PQ9430
<G>C SMD B 10U 6.3V M 080
8-200

SYMBOL
For China
(NECDS Part Number)
DESCRIPTION
C622
79PQ9246
<G>C SMD B 0.1U 16V K 060
C623
79PQ9246
<G>C SMD B 0.1U 16V K 060
C624
79PQ9246
<G>C SMD B 0.1U 16V K 060
C625
79PQ9246
<G>C SMD B 0.1U 16V K 060
C631
79PQ9430
<G>C SMD B 10U 6.3V M 080
C632
79PQ9246
<G>C SMD B 0.1U 16V K 060
C633
79PQ9246
<G>C SMD B 0.1U 16V K 060
C634
79PQ9246
<G>C SMD B 0.1U 16V K 060
C635
79PQ9246
<G>C SMD B 0.1U 16V K 060
C636
79PQ9246
<G>C SMD B 0.1U 16V K 060
C637
79PQ9246
<G>C SMD B 0.1U 16V K 060
C638
79PQ9246
<G>C SMD B 0.1U 16V K 060
C639
79PQ9246
<G>C SMD B 0.1U 16V K 060
C701
79PQ8234
<G>C ELE85 1F 5.5V N A
C702
79PQ9246
<G>C SMD B 0.1U 16V K 060
C703
79PQ9246
<G>C SMD B 0.1U 16V K 060
C704
79PQ9246
<G>C SMD B 0.1U 16V K 060
C705
79PQ9433
<G>CSMDB1U10VM0603
C810
79PQ9246
<G>C SMD B 0.1U 16V K 060
C820
79PQ9246
<G>C SMD B 0.1U 16V K 060
C851
79PQ9246
<G>C SMD B 0.1U 16V K 060
C852
79PQ9246
<G>C SMD B 0.1U 16V K 060
C853
79PQ9246
<G>C SMD B 0.1U 16V K 060
C854
79PQ9246
<G>C SMD B 0.1U 16V K 060
8-201

BLOCK DIAGRAM
LCD2090UXi / LCD2090UXi-BK
3.3V
Device
1.8/2.5/3.3V
Device
5.0V
Device
Input1 Digital
Input2 Digital
Input2 Analog
Input3 Analog
(Scaling & LVDS Tx)
- Scaling
- Color Management
- Gamma Correction
- Uniformity
Correction
BA, WE, DQM, DQS
(Analog Front End)
- ADC
-P LL
-Mode Detect
-CLAMP&HOLD
ADC3.3V
ADC1.8V
RGB INPUT1
SOGIN1
RGB INPUT2
SOGIN2
AH1/AV1
P330
Dsub
Connector
DDC 5V
DDC
(SCL/SDA)
IC852
128x2Banks
EEPROM
BU9882
IC100
MPU V850ES/SG2
UPD70F3261YGC
- 8EA
X401
14.318MHz
IC701
EEPROM
24LC256
IC183
12V-detect
XC6108N33AMR
8bit Data
Q851, 852
Level Shift
P320
DVI-I Connector
TMDS
RGB Video
H/V Sync
DDC
(SCL/SDA)
DDC 5V
IC601
DDR SDRAM
K4D263238E-GC
1Mx32bitx4BANK
IC3E2
Schmitt Inv.
NC7WZ14
IC3E3
Schmitt Inv.
NC7WZ14
Buff &
Buff & LPF
SDC
INV_CONT
DDC/C
AD:12bit
Data:32bit
QAD[3-0],
Buf
Buff
MCL
Control:4
RST
IC851
128x2Banks
EEPROM
BU9882
Auto Detect
EDID Selector
Q151,Q15
2,Q153
LED cir.
EDID x2ch
EDID x2ch
(Digital Front End)
- DVI Rx1
- DVI Rx2
IC401 Caviar
Q1F1
Power Key SW
cir
3.3V
2.5V
IC221
XC9223
5V
S103
P310
DVI-D
Connector
TMDS
DDC
(SCL/SDA)
DDC 5V
1.8V
S551LVDS
QBD[3-0],
IC701
RealTime CLK
RTC8564JE
IC702
Thermo Sensor
TCN75-3 .3MUA
ICxxx
Photo(Luminous
) Sensor : Not
I2C
IC3E1
Sync thresh
TA76431F
C701
Super Cap
1F
X100
4.91MHz
S101
FW Write
S100
On Chip Debug
(Memory & Control)
IC853
Potentio Meter
X9116
IC853
Potentio Control
(DDC Circuit)
MP
U
S271
S261
POWER Input
Q251
FET SW
ICxxx
Thermo
Sensor
S109SensorConnector
I2C
DDC5V
12V
5V
18V
SyncT
/LPF SW ,/PMS
Vref
Sync
Sepa
Sync
Sepa
Sense signal
(analog)
IC211
XC9223
IC231
XC9223
IC702
EEPROM
24LC256
IC704
Gyro Sensor
ADXL322
IC2A1
NJM2870F33
IC291
5V
S281
To Sound
illumination sensor
Key SW
POW SW
POW SW
Power
Key
/MPU_RESET
/MPU RESET
DCDC EN
DCDC DET
DCDC EN
DCDC DET
2.5V
Device
INV_ON
P_PANEL
P_PANEL
/PMS
5V
S262
To Touch
Q701, 702
Level Shift
/PMS
POW SW
Thr_SOG
/PMS
DET_INV
LVDS
LVDS
MCLK
S552
IC241
LT1961
I2C
Q263
FET SW
12V
LCDPanelINVERTERFPC-SWPOWER-SUPPLY
9-1

9-2

MODEL LCD2090UXi SCHEMATIC DIAGRAM SIGNAL INPUT (1/9)
10-1

MODEL LCD2090UXi SCHEMATIC DIAGRAM ANALOG BUFF (2/9)
10-2

MODEL LCD2090UXi SCHEMATIC DIAGRAM SYNC CONTROL (3/9)
10-3

MODEL LCD2090UXi SCHEMATIC DIAGRAM ASIC IN/OUT (4/9)
10-4

MODEL LCD2090UXi SCHEMATIC DIAGRAM ASIC VDD/GND/DDR (5/9)
10-5

MODEL LCD2090UXi SCHEMATIC DIAGRAM SPECIAL FUNCTION (6/9)
10-6

MODEL LCD2090UXi SCHEMATIC DIAGRAM MPU (7/9)
10-7

MODEL LCD2090UXi SCHEMATIC DIAGRAM POWER IN/OUT (8/9)
10-8

MODEL LCD2090UXi SCHEMATIC DIAGRAM POWER REGULATOR (9/9)
10-9

11-1
Packing Specification
TABLE OF CONTENTS
Page
1. MODEL LCD2090UXi/LCD2090UXi-BK(A) ..................................................................... 11-2
2. MODEL LCD2090UXi/LCD2090UXi-BK(B) ..................................................................... 11-4
3. MODEL LCD2090UXi/LCD2090UXi-BK(C) .................................................................... 11 -6

11-2
1. MODEL LCD2090UXi/LCD2090UXi-BK(A)
TAPE
TAPE
FRONT
APPROX50mm
(8) FILLER T
SIGNAL CABLE
(3) CABLE VIDEO DVID-D
(4) CABLE VIDEO DVIA-D
(5) CABLE VIDEO DSUB-D
(9) SHEET SETUP
(10) PE BAG
(13) CARTON BOX
(2) MANUAL ASSY
(1) CARTON SHEET
(6) POWER CORD
CABLE COVER
(In the PE PAG)
(12) FILLER B
(7) PE BAG
SCREW
MANUAL ASSY
Recycle mark side
of PE BAG
MANUAL
PREMIUM PROTECT
BROCHURE
NAVI-SET FLYER
(11) PACKING BAG

11-3
ITEM
DESCRIPTION
For U.S .
(NPG Part Number)
For Asia/Australia
(NECDS Part Number)
Cabinet
color
(1) <G>CARTON SHEET
1C203011
79PQ9050
White/Black
(2) <G>MANUAL ASSY LCD2090UXI
1E504741
79PQ9458
White/Black
(3) <G>CABLE VIDEO GRY DVID-D
R5010531
79PQ9485
White
(3) <G>CABLE VIDEO BLK DVID-D
R5010561
79PQ9441
Black
(4) <G>CABLE VIDEO GRY DVIA-D
R5010541
79PQ9486
White
(4) <G>CABLE VIDEO BLK DVIA-D
R5010551
79PQ9440
Black
(5) <G>CABLE VIDEO GRY DSUB-D
R5010571
79PQ9487
White
(5) <G>CABLE VIDEO BK DSUB-D
R5010581
79PQ9545
Black
(6) <G>PW CORD USA 2M GRY I-S
R7021031
79PQ8976
White
(6) <G>PW CORD USA 2M BLK I-S
R7021011
79PQ8979
Black
(7) <G>BAG POLYETHYLENE 170X9
1C700741
79PQ9036
White/Black
(8) <G>FILLER T L205GR
1C401991
79PQ9454
White/Black
(9) <G>SHEET SETUP L205GR A
1E802481
79PQ9460
White/Black
(10) <G>BAG PE 175X260
1C700361
79PQ9546
White/Black
(11) <G>PACKING BAG
1C700522
79PQ9456
White/Black
(12) <G>FILLER B L205GR
1C402001
79PQ9455
White/Black
(13) <G>CARTON BOX L205GR WHA
1C205671
79PQ9453
White/Black

11-4
2. MODEL LCD2090UXi/LCD2090UXi-BK(B)
TAPE
TAPE
FRONT
APPROX50mm
(8) FILLER T
SIGNAL CABLE
(4) CABLE VIDEO DVID-D
(5) CABLE VIDEO DVIA-D
(9) SHEET SETUP
(10) PE BAG
(13) CARTON BOX
(3) MANUAL ASSY
(1) CAUTION SHEET
(6) POWER CORD
CABLE COVER
(In the PE PAG)
(12) FILLER B
(2) CARTON SHEET
(7) PE BAG
MANUAL ASSY
Recycle mark side
of PE BAG
MANUAL
SALES OFFICE LIST
NAVI-SET FLYER
CD
(11) PACKING BAG

11-5
ITEM
DESCRIPTION
For Europe
(NPG Part Number)
For Asia/Australia
(NECDS Part Number)
Cabinet
color
(1) <G>CAUTION SHEET FOR 15
1E800231
79PQ9494
White/Black
(2) <G>CARTON SHEET
1C203011
79PQ9050
White/Black
(3) <G>MANUAL ASSY LCD1990SXI
1E504751
79PQ9541
White/Black
(4) <G>CABLE VIDEO GRY DVID-D
R5010531
79PQ9485
White
(4) <G>CABLE VIDEO BLK DVID-D
R5010561
79PQ9441
Black
(5) <G>CABLE VIDEO GRY DVIA-D
R5010541
79PQ9486
White
(5) <G>CABLE VIDEO BLK DVIA-D
R5010551
79PQ9440
Black
(6) <G>PW CORD EUR 2M RPLUG G
R7031031
79PQ8953
White
(6) <G>PW CORD EUR 2M BLK I-S
R7031051
79PQ8956
Black
(6) <G>PW CORD UK 2.0M R-PLUG
R7041041
79PQ9496
White
(6) <G>PW CORD UK 2.0M R-PLUG
R7041051
79PQ9497
Black
(7) <G>BAG POLYETHYLENE 170X9
1C700741
79PQ9036
White/Black
(8) <G>FILLER T L205GR
1C401991
79PQ9454
White/Black
(9) <G>SHEET SETUP L205GR B
1E802491
79PQ9542
White/Black
(10) <G>PE BAG 230X320
1C700251
79PQ9548
White/Black
(11) <G>PACKING BAG
1C700522
79PQ9456
White/Black
(12) <G>FILLER B L205GR
1C402001
79PQ9455
White/Black
(13) <G>CARTON BOX L205GR WHA
1C205671
79PQ9453
White/Black

11-6
3. MODEL LCD2090UXi/LCD2090UXi-BK(C)
TAPE
TAPE
FRONT
APPROX50mm
(7) FILLER T
SIGNAL CABLE
(3) CABLE VIDEO DVID-D
(4) CABLE VIDEO DVIA-D
(8) SHEET SETUP
(9) PE BAG
(12) CARTON BOX
(2) MANUAL ASSY
(1) CARTON SHEET
(5) POWER CORD
CABLE COVER
(In the PE PAG)
(11) FILLER B
(6) PE BAG
MANUAL ASSY
Recycle mark side
of PE BAG
MANUAL
SALES OFFICE LIST
NAVI-SET FLYER
CD
(10) PACKING BAG

11-7
ITEM
DESCRIPTION
For China
(NECDS Part Number)
Cabinet color
(1) <G>CARTON SHEET
79PQ9050
White/Black
(2) <G>MANUAL ASSY LCD1990SXI
79PQ9543
White/Black
(3) <G>CABLE VIDEO GRY DVID-D
79PQ9485
White
(3) <G>CABLE VIDEO BLK DVID-D
79PQ9441
Black
(4) <G>CABLE VIDEO GRY DVIA-D
79PQ9486
White
(4) <G>CABLE VIDEO BLK DVIA-D
79PQ9440
Black
(5) <G>PW CORD CHN CCC 2M GRY
79PQ8966
White
(5) <G>PW CORD CHN CCC 2M BLK
79PQ8969
Black
(6) <G>BAG POLYETHYLENE 170X9
79PQ9036
White/Black
(7) <G>FILLER T L205GR
79PQ9454
White/Black
(8) <G>SHEET SETUP L205GR C
79PQ9544
White/Black
(9) <G>PE BAG 230X320
79PQ9548
White/Black
(10) <G>PACKING BAG
79PQ9456
White/Black
(11) <G>FILLER B L205GR
79PQ9455
White/Black
(12) <G>CARTON BOX L205GR WHA
79PQ9453
White/Black
