This drawing refers only to the first PCB-Version of the product !
GSM SERVICE SUPPORT GROUP
02.01.2001

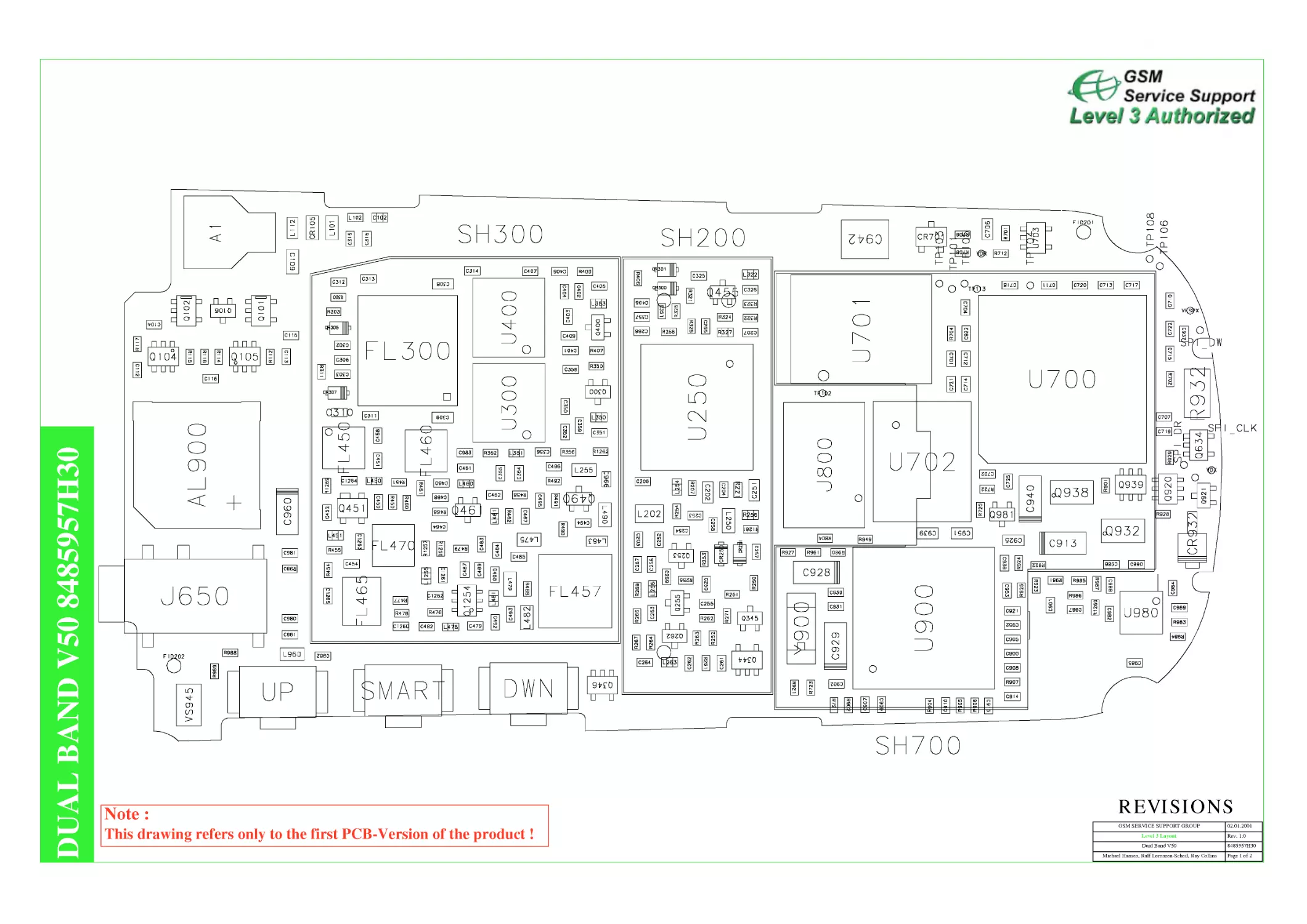

Level 3 Layout
Rev. 1.0
Dual Band V50
8485957H30
Michael Hansen, Ralf Lorenzen-Scheil, Ray Collins Page 1 of 2
REVISIONS
DUAL BAND V50 8485957H30


DUAL BAND V50 8485957H30
GSM SERVICE SUPPORT GROUP
02.01.2001
Level 3 Layout
Rev. 1.0
Dual Band V50
8485957H30
Michael Hansen, Ralf Lorenzen-Scheil, Ray Collins Page 2 of 2
REVISIONS
Note :
This drawing refers only to the first PCB-Version of the product !


Kramer V50 Exploded View
Attention !
Part numbers are out of date,
must not be used.


A
B
C
D
E
F
G
H
I
J
K
L
M
N
1
2
3
4
5
6
7
8
9
10
11
DUAL BAND V50 8485957H30
GSM SERVICE SUPPORT GROUP
02.01.2001
Level 3 Schematics
Rev. 1.0
Dual Band V50
8485957H30
Michael Hansen, Ralf Lorenzen-Scheil, Ray Collins Page 1 of 2
REVISIONS


A
B
C
D
E
F
G
H
I
J
K
L
M
N
1
2
3
4
5
6
7
8
9
10
11
DUAL BAND V50 8485957H30
GSM SERVICE SUPPORT GROUP
02.01.2001
Level 3 Schematics
Rev. 1.0
Dual Band V50
8485957H30
Michael Hansen, Ralf Lorenzen-Scheil, Ray Collins Page 1 of 2
REVISIONS
